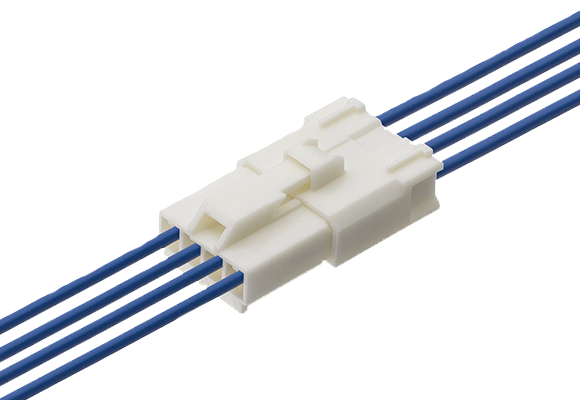

Latch-lock type 4.50mm Pitch Inline Connector

CL06 Series
1.The Housing is latch lock type, and resistant to shock and vibration
2.Stable contact mechanism with flat terminals【Model Description】

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

Parts List

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Pin Count	Pich [mm]	Current Rating [A/Pin]	Dielectric Withstanding Voltage	Operating Temparature Min [deg.C]	Operating Temparature Max [deg.C]	Cable Jacket Diameter [Φ]	Applicable Cable Diameter	Catalog

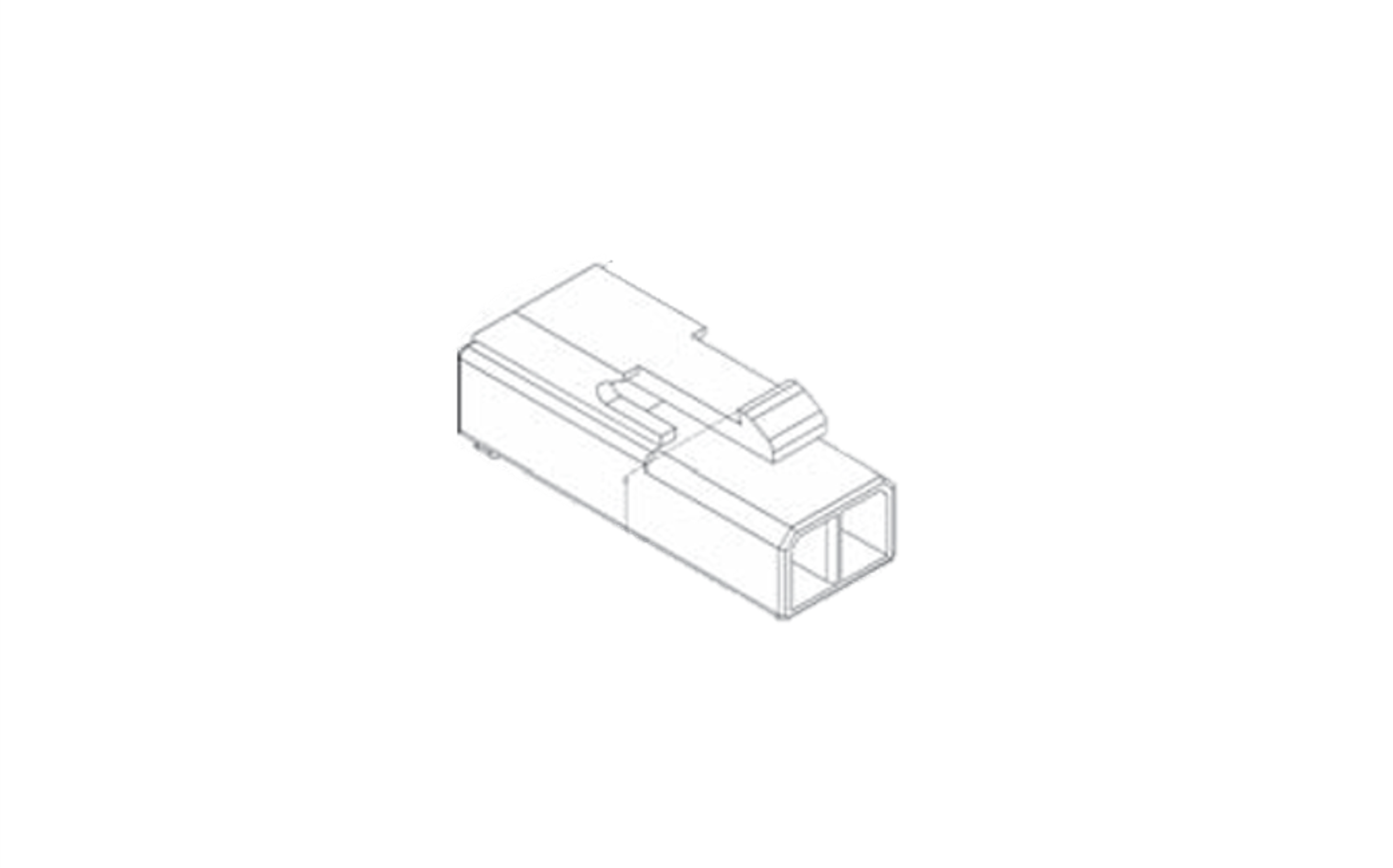

CL06A()M	2,3,4,6,9,12,15	4.50×5.60	2P:12A 3P:12A 4P:10A 6P:9A 9P:8A 12P:7A 15P:5A	1,700V A.C.(r.m.s) for a minute	-40	105			DL0124_MCICL06_BI_CL.pdf

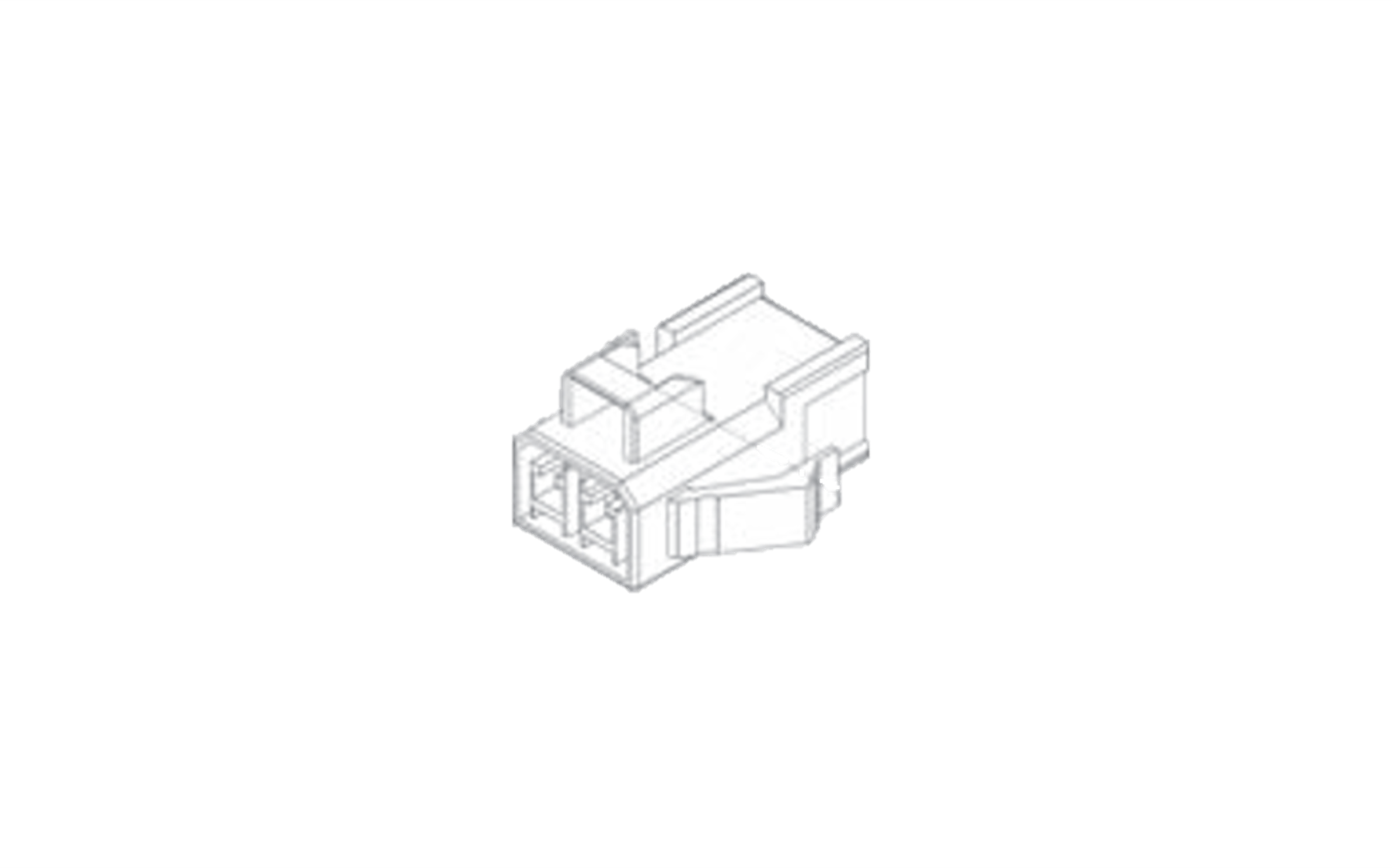

CL06A()F	2,3,4,6,9,12,15	4.50×5.60	2P:12A 3P:12A 4P:10A 6P:9A 9P:8A 12P:7A 15P:5A	1,700V A.C.(r.m.s) for a minute	-40	105			DL0124_MCICL06_BI_CL.pdf

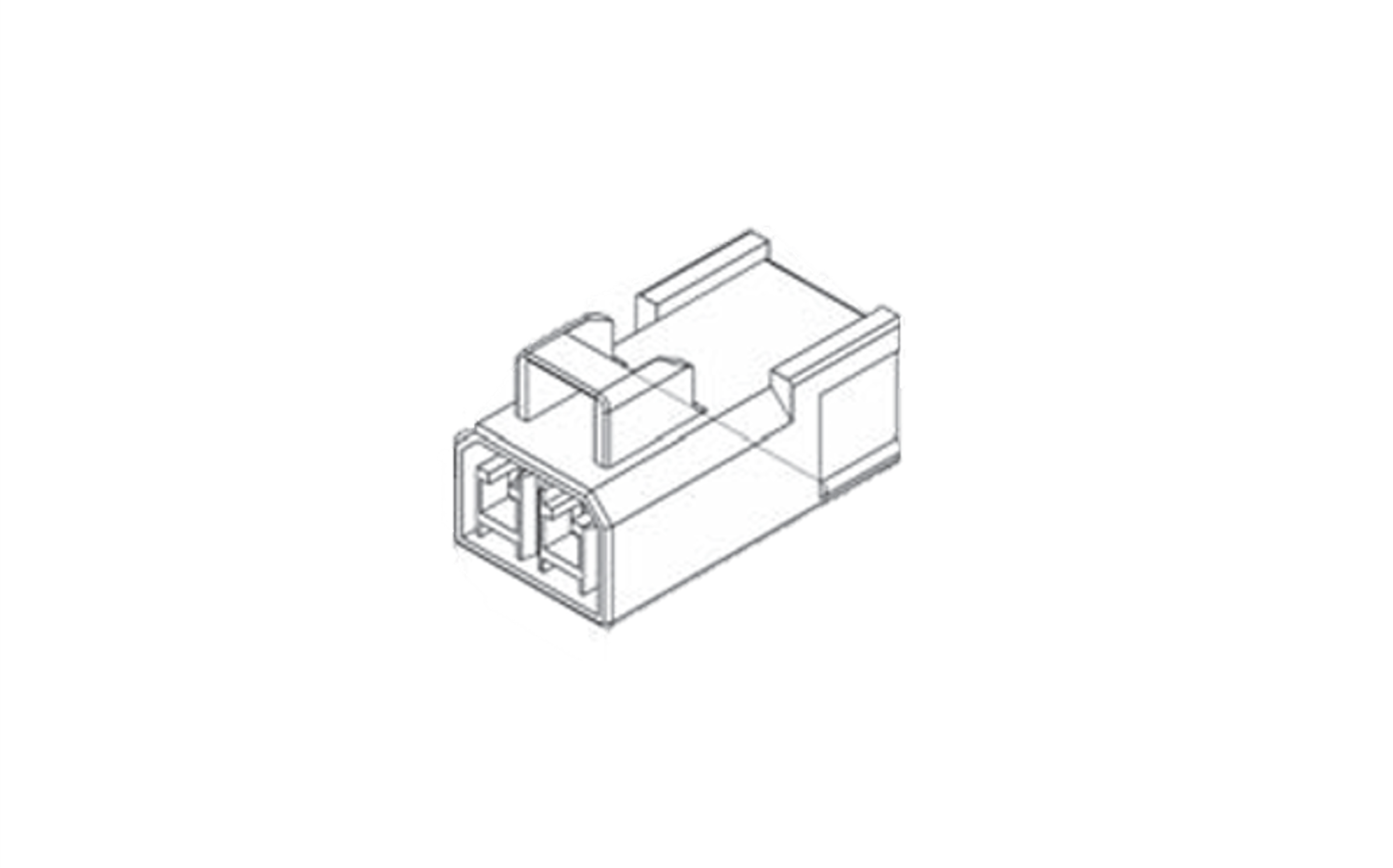

CL06B()F	2,3,4,6,9,12,15	4.50×5.60	2P:12A 3P:12A 4P:10A 6P:9A 9P:8A 12P:7A 15P:5A	1,700V A.C.(r.m.s) for a minute	-40	105			DL0124_MCICL06_BI_CL.pdf

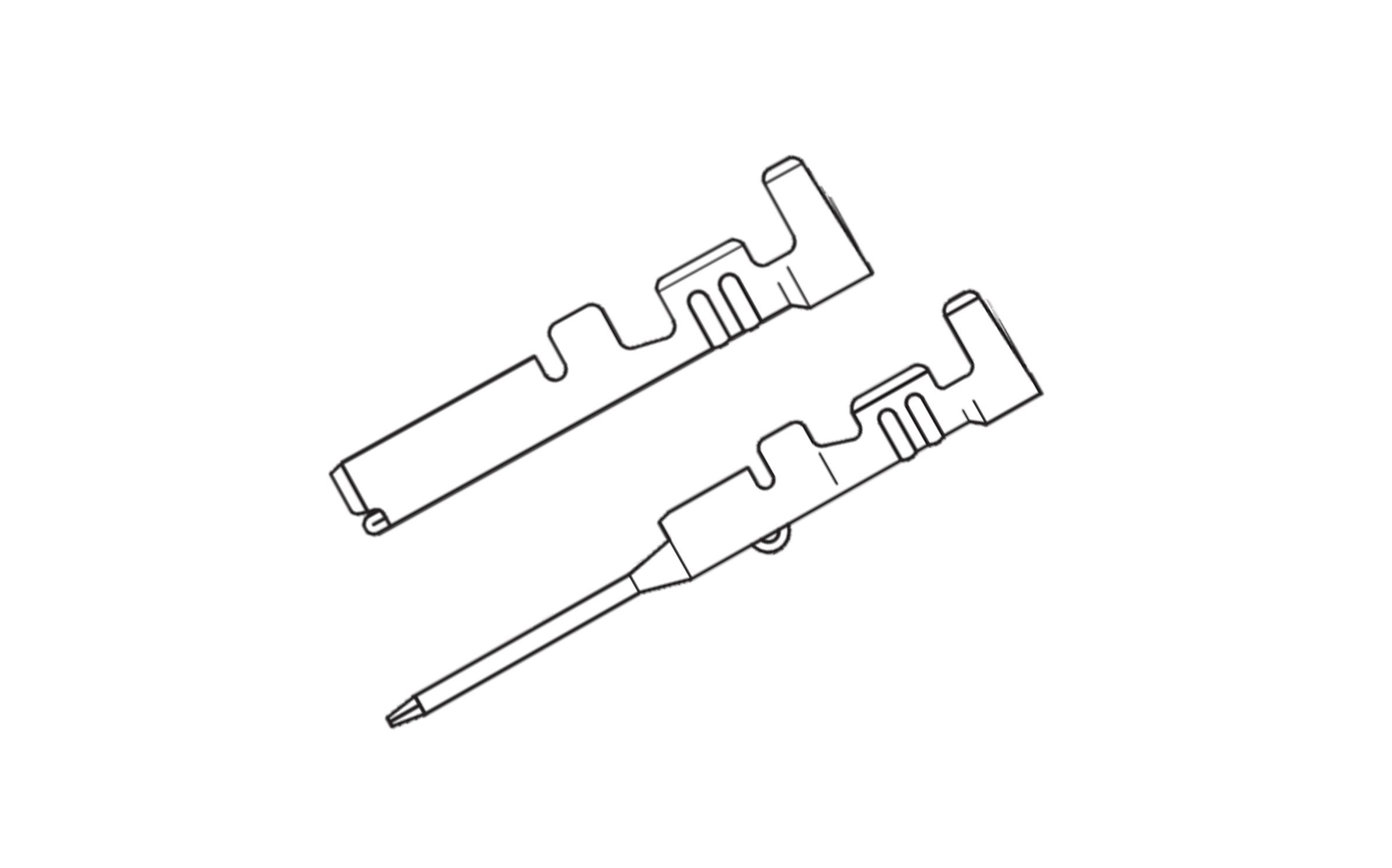

21501＊-2M					-40	105	＊=1,2:Φ2.60 ＊=3,4:Φ3.30	＊=1,2:AWG#24~20 ＊=3,4:AWG#20~16	DL0124_MCICL06_BI_CL.pdf
