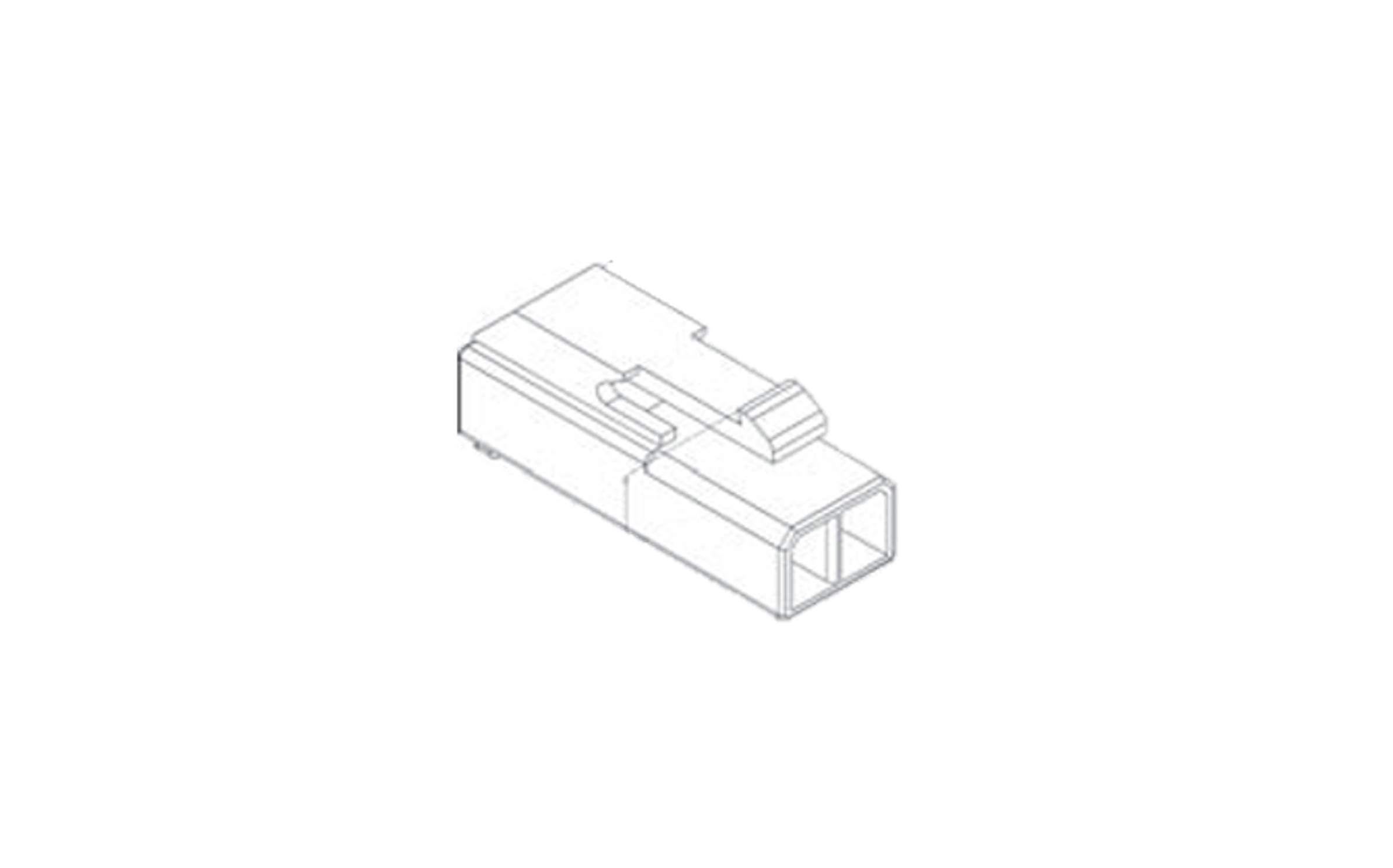

CL06 Series
1.The Housing is latch lock type, and resistant to shock and vibration
2.Stable contact mechanism with flat terminals【Model Description】
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. CL06A()M Pin Count 2,3,4,6,9,12,15 Pich
[mm]4.50×5.60 Current Rating
[A/Pin]2P:12A
3P:12A
4P:10A
6P:9A
9P:8A
12P:7A
15P:5ADielectric Withstanding
Voltage1,700V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.

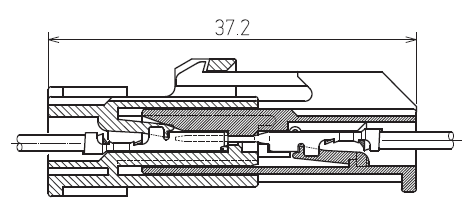

Please request the Engineering Drawing for the most current and accurate design information.
