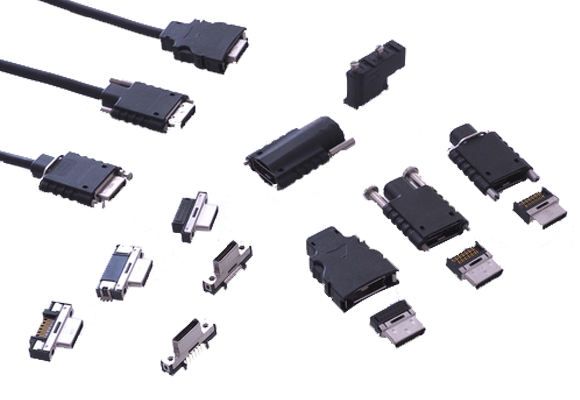

0.8mm pitch interface connector HDR Series
HDR Series
１．Small size (reduced 50% mounting area comparing to 1.27mm pitch)
２．Metal-shell for high EMI
３．Various Combination
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
0.8mm pitch interface connector HDR Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Drawing |
|---|---|---|---|---|---|---|---|---|---|---|---|

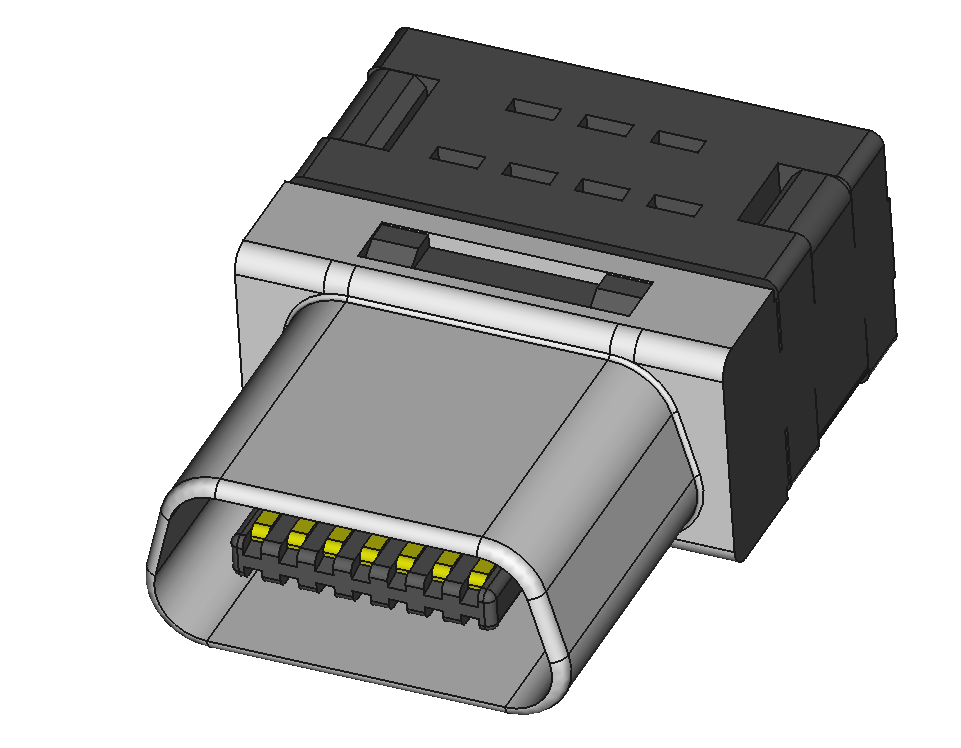

| HDR-E()LPHP#+ |  |
14,26,50 #=A～D |
Case | -55 | 85 | ()=14,26:Φ6.5 ()=50:Φ8～8.5 |
DL0053_HTKHDR_EN.pdf | ||||

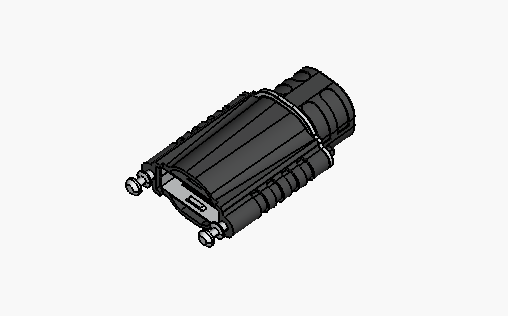

| HDR-E26LPKP#+ |  |
26 #=A～D |
Case | -55 | 85 | Φ11.7 | DL0055_HTKHDR_EN.pdf | ||||

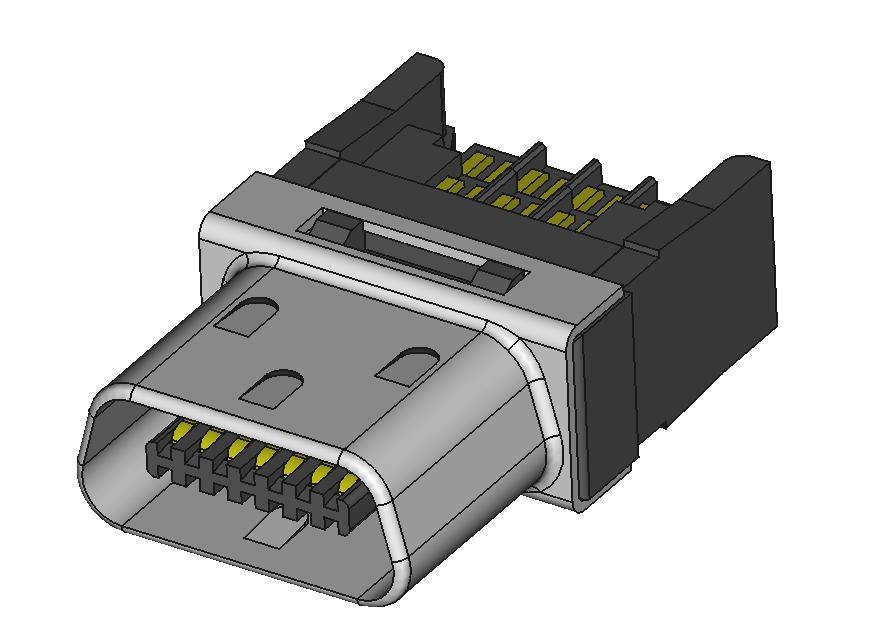

| HDR-E()MAG1+ |  |
14,26,50 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#30 | DL0073_HTKHDR_EN.pdf |
| HDR-E()MG1+ | 14,26,50 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#28 | DL0073_HTKHDR_EN.pdf | |

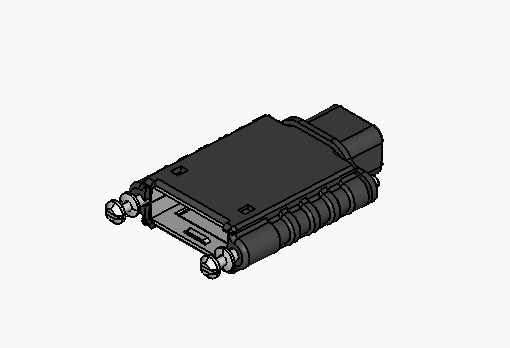

| HDR-E()MSG1+ |  |
14,26,50 | 0.8 | Soldering | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ1.0 | AWG#28 | DL0074_HTKHDR_EN.pdf |
| HDR-E26MBAG1+ | 26 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#32 | DL0073_HTKHDR_EN.pdf | |

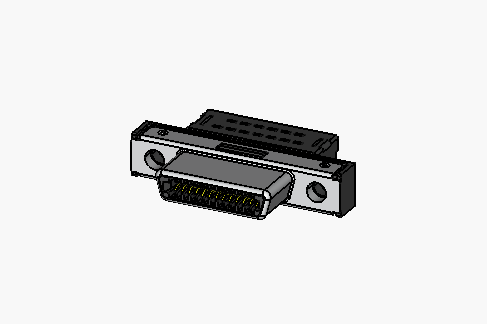

| HDR-EC()PFAG1+ |  |
14,26 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#30 | DL0075_HTKHDR_EN.pdf |

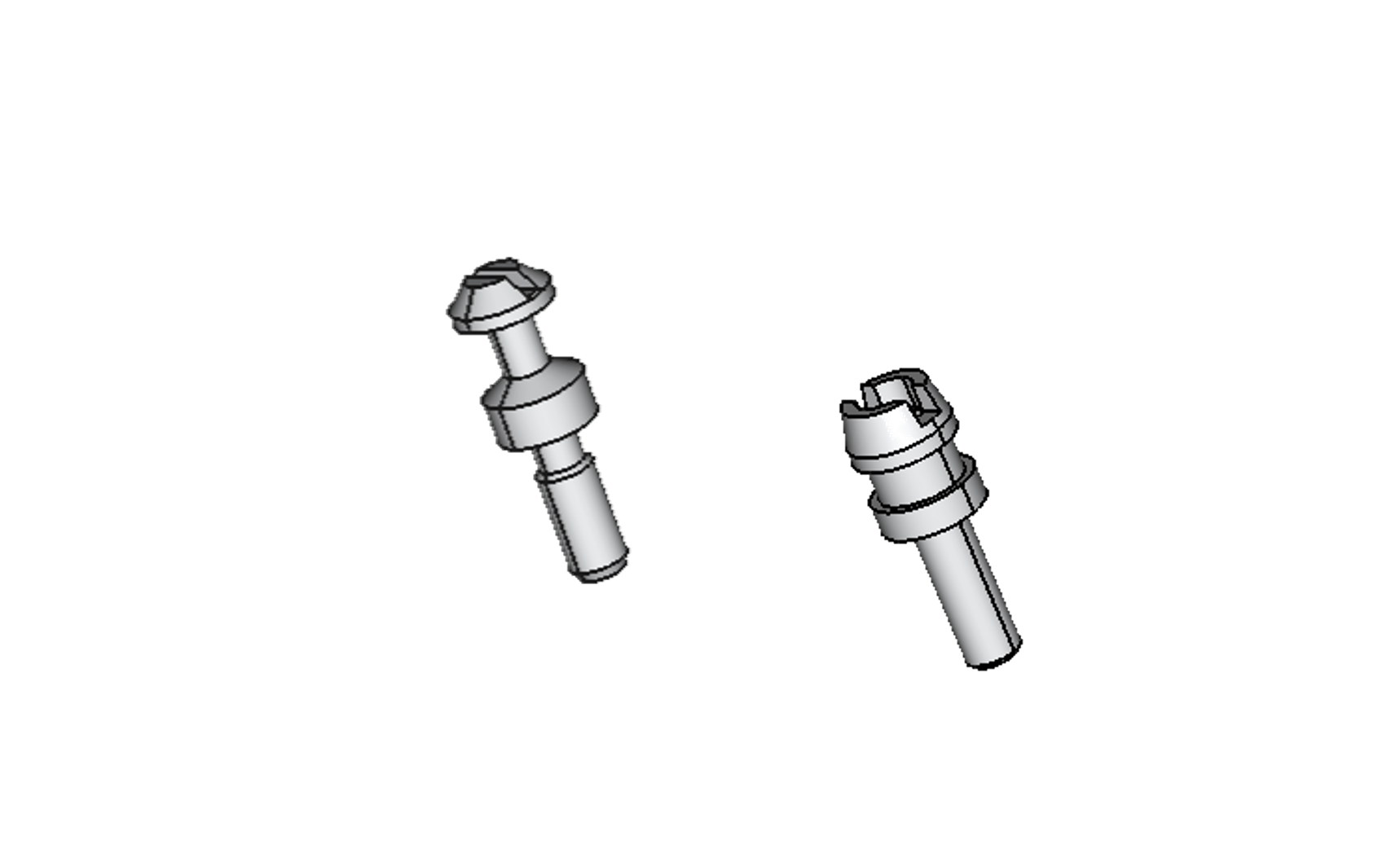

| HDR Screw |  |
-55 | 85 | DL0076_HTKHDR_EN.pdf |
