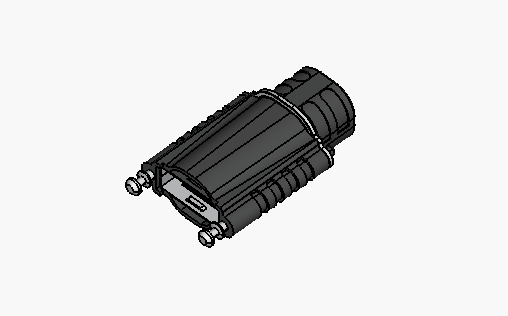

HDR-E26LPKP#+

HDR Series
１．Small size (reduced 50% mounting area comparing to 1.27mm pitch)
２．Metal-shell for high EMI
３．Various Combination

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. HDR-E26LPKP#+
    Pin Count 26
    #=A～D
    Mounting Method/
    Wiring method    		 Case
    Operating Temparature
    Min
    [deg.C]    		 -55
    Operating Temparature
    Max
    [deg.C]    		 85
    Cable Jacket Diameter
    [Φ]    		 Φ11.7

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
