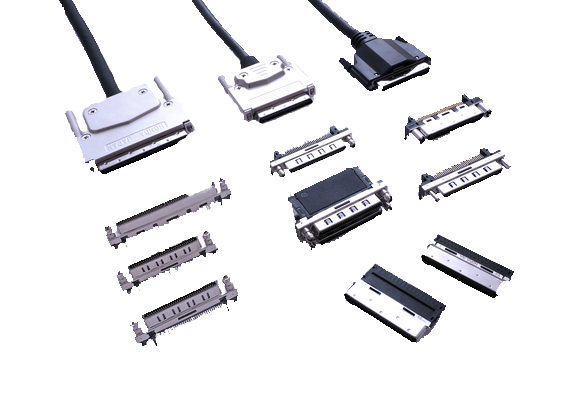

Multi-Pins 0.8 mm pitch interface connector HDRA Series
HDRA Series
１．Low-profile, compact design
２．Compatible with high-speed transmission
３．Robustness
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Multi-Pins 0.8 mm pitch interface connector HDRA Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Applicable Cable Diameter |
Drawing |
|---|---|---|---|---|---|---|---|---|---|---|

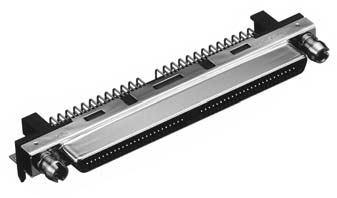

| HDRA-AS-0163-L*00+ |  |
68 | 0.8 | Screw lock harness/IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0077_HTKHDRA_EN.pdf | |
| HDRA-AS-0164-L*00+ |  |
100 | 0.8 | Screw lock harness/IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0078_HTKHDRA_EN.pdf | |

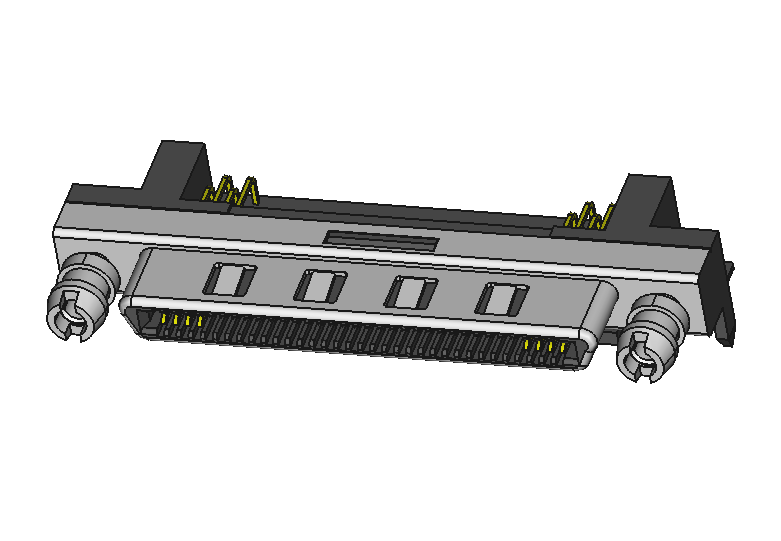

| HDRA-E#()LFDT-*+ |  |
36,68,100 #=A:36のみ #=C:68または100 |
0.8 | ライトアングルDIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0079_HTKHDRA_EN.pdf | |

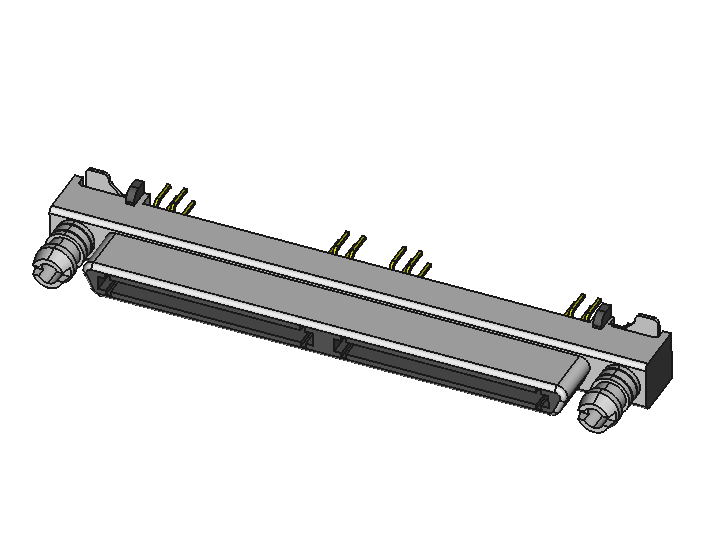

| HDRA-E68W1LFDT-*+ | 136 (68 × 2 tiers) *=None.SL |
0.8 | Two-tier Type Right Angle DIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0080_HTKHDRA_EN.pdf | ||
| HDRA-E()W1LFDT1EC-*+ |  |
136,200 (68,100×2Tires) *=None,SL |
0.8 | Two-tier with coverType Right Angle DIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0081_HTKHDRA_EN.pdf | |

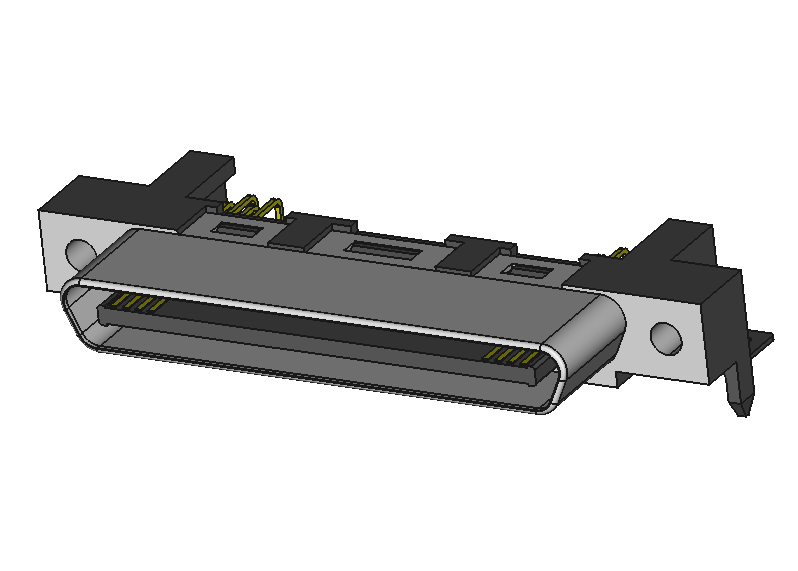

| HDRA-ED68LFZGP-*+ |  |
68 | 0.8 | Straight SMT | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | ||
| HDRA-ED68LFZGT-*+ | 68 *=S,SL |
0.8 | Straight DIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0082_HTKHDRA_EN.pdf | ||
| HDRA-ED68FYG+ | 68 | 0.8 | Straight SMT | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0083_HTKHDRA_EN.pdf | ||

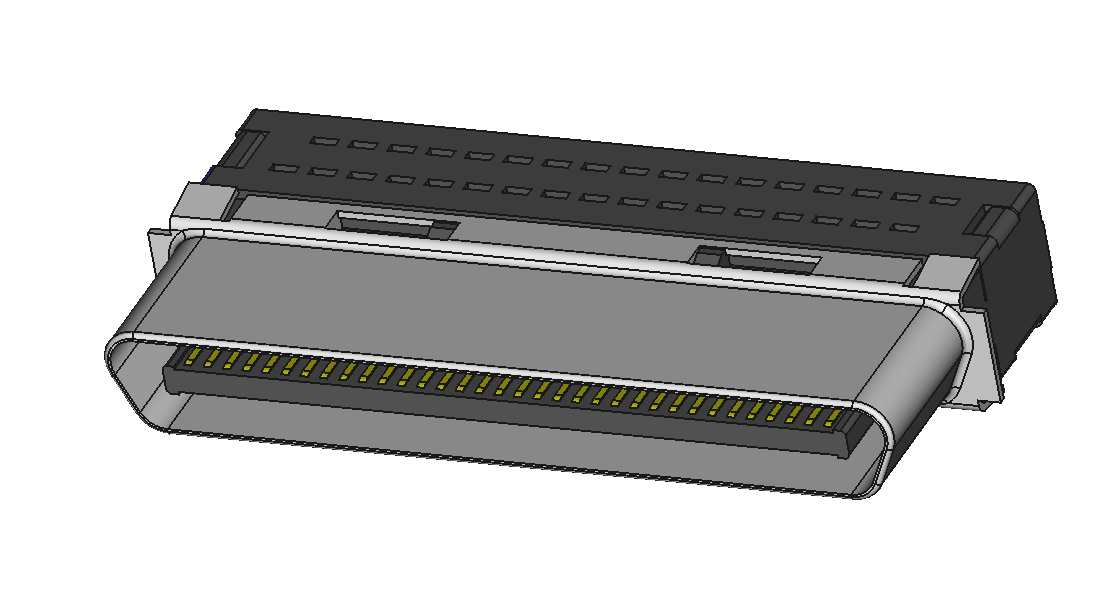

| HDRA-E68FYT-*+ |  |
68 | 0.8 | Straight SMT | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0084_HTKHDRA_EN.pdf | |

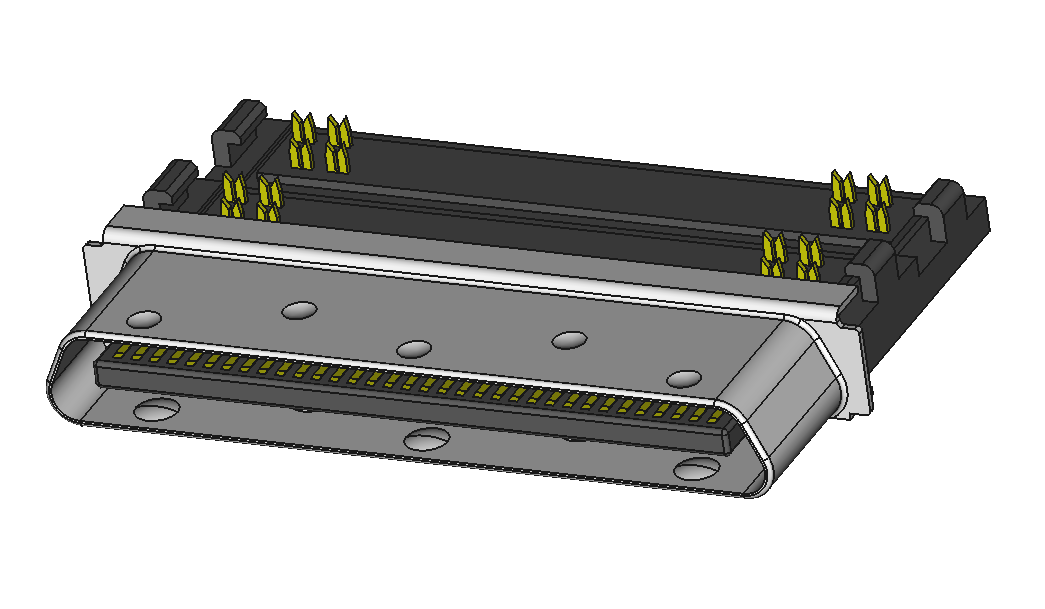

| HDRA-EC68FDT-*+ |  |
68 *=None,GP,SL,SLD |
0.8 | Straight DIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0085_HTKHDRA_EN.pdf | |
| HDRA-EC100FDT-*+ |  |
100 *=None,GP,SLD |
0.8 | Straight DIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0086_HTKHDRA_EN.pdf | |
| HDRA-E100LFDT-*+ |  |
100 *=None,SL |
0.8 | Right-angle DIP |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0087_HTKHDRA_EN.pdf | |
| HDRA-EC68LMDT-*+ |  |
68 *=無,GP |
0.8 | Right-angle DIP |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0088_HTKHDRA_EN.pdf | |

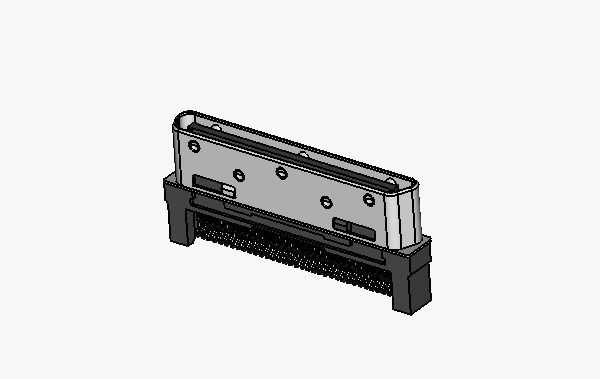

| HDRA-E68MT+ |  |
68 | 0.8 | Straight SMT | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0089_HTKHDRA_EN.pdf | |
| HDRA-EC100MDT-GP+ |  |
100 | 0.8 | Straight DIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0090_HTKHDRA_EN.pdf | |
| HDRA-E()M1+ | 68,100 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0091_HTKHDRA_EN.pdf | |
| HDRA-E()MA+ |  |
0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0092_HTKHDRA_EN.pdf | |
| HDRA-E()MA1+ |  |
68,100 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0093_HTKHDRA_EN.pdf |

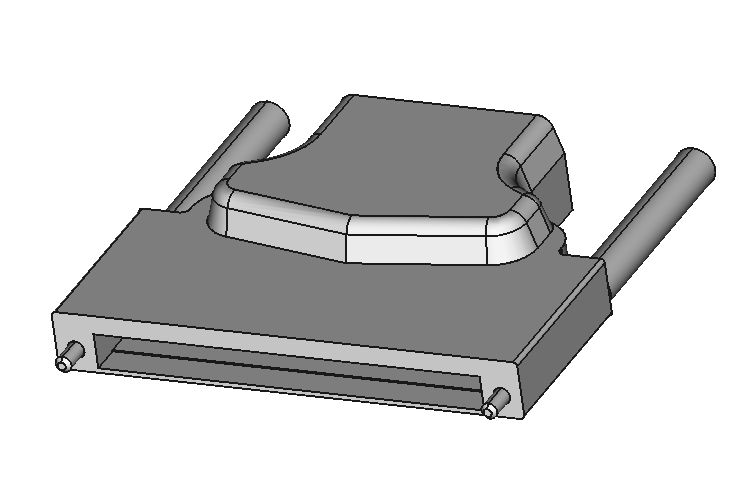

| HDRA-E68LGKP* |  |
68 *=A,C,E,F,H |
Plastic case | -55 | 85 | DL0094_HTKHDRA_EN.pdf | ||||
| HDRA-E36LPTH |  |
36 | Plastic case | -55 | 85 | DL0095_HTKHDRA_EN.pdf | ||||
| HDRA-E68LPD |  |
68 | Metal case | -55 | 85 | DL0096_HTKHDRA_EN.pdf | ||||
| HDRA-E100LPA |  |
100 | Metal case | -55 | 85 | DL0097_HTKHDRA_EN.pdf | ||||
| HDRA-E100LPW* |  |
100 *=B,C |
Metal case | -55 | 85 | DL0098_HTKHDRA_EN.pdf | ||||
| HDRA Screw |  |
-55 | 85 | DL0076_HTKHDR_EN.pdf |
