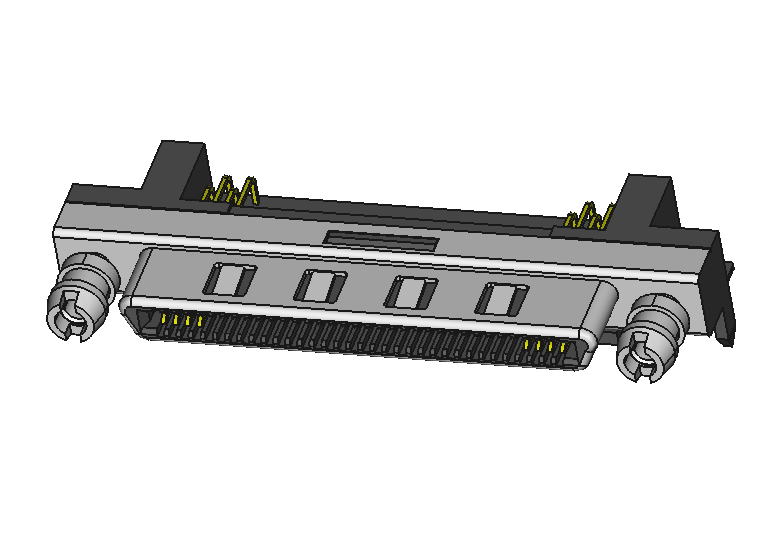

HDRA-E#()LFDT-*+

HDAR Series
１．Low-profile, compact design.
２．Compatible with high-speed transmission.
３．Robustness

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. HDRA-E#()LFDT-*+
    Pin Count 36,68,100
    #=A:36のみ
    #=C:68または100
    Pich
    [mm]    		 0.8
    Mounting Method/
    Wiring method    		 ライトアングルDIP
    Current Rating
    [A/Pin]    		 0.5
    Dielectric Withstanding
    Voltage    		 350V A.C.(r.m.s.) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -55
    Operating Temparature
    Max
    [deg.C]    		 85

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.

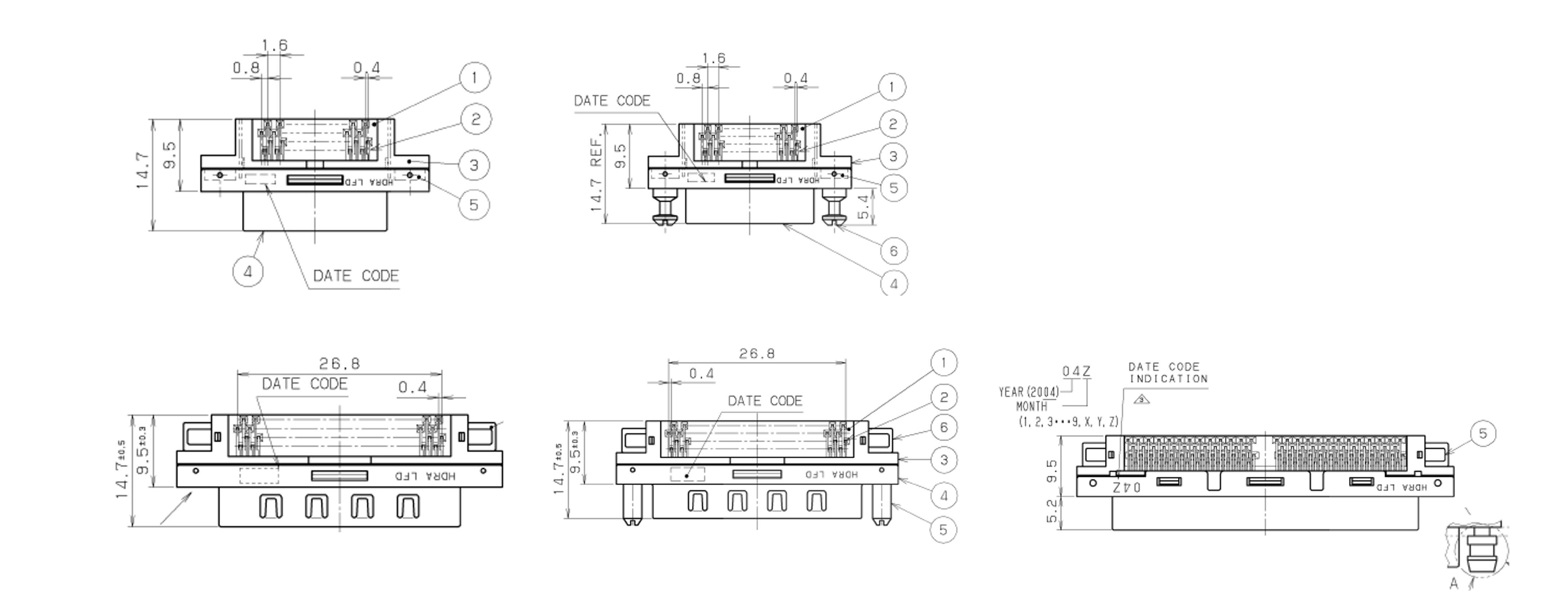

    Please request the Engineering Drawing for the most current and accurate design information.
