5.00+7.50mm Pitch Board-In Connector

PD06E Series
1.As Large insulation distance, suitable using for power supplies
2.As 5.00mm pitch, able to apply high current
3.Terminal position is easy to check by translucent Housing

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Appearance

Pin Count

Pich
[mm]

Current Rating
[A/Pin]

Dielectric Withstanding
Voltage

Operating Temparature
Min
[deg.C]

Operating Temparature
Max
[deg.C]

Cable Jacket Diameter
[Φ]

Applicable Cable Diameter

Drawing

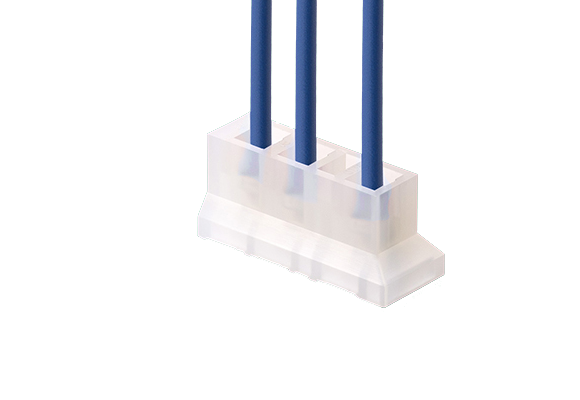

PD06E()M 3,4 5.00+7.50 7 1,500V A.C.(r.m.s) for a minute -40 100 DL0132_MCIPD06E_BI_CL.pdf

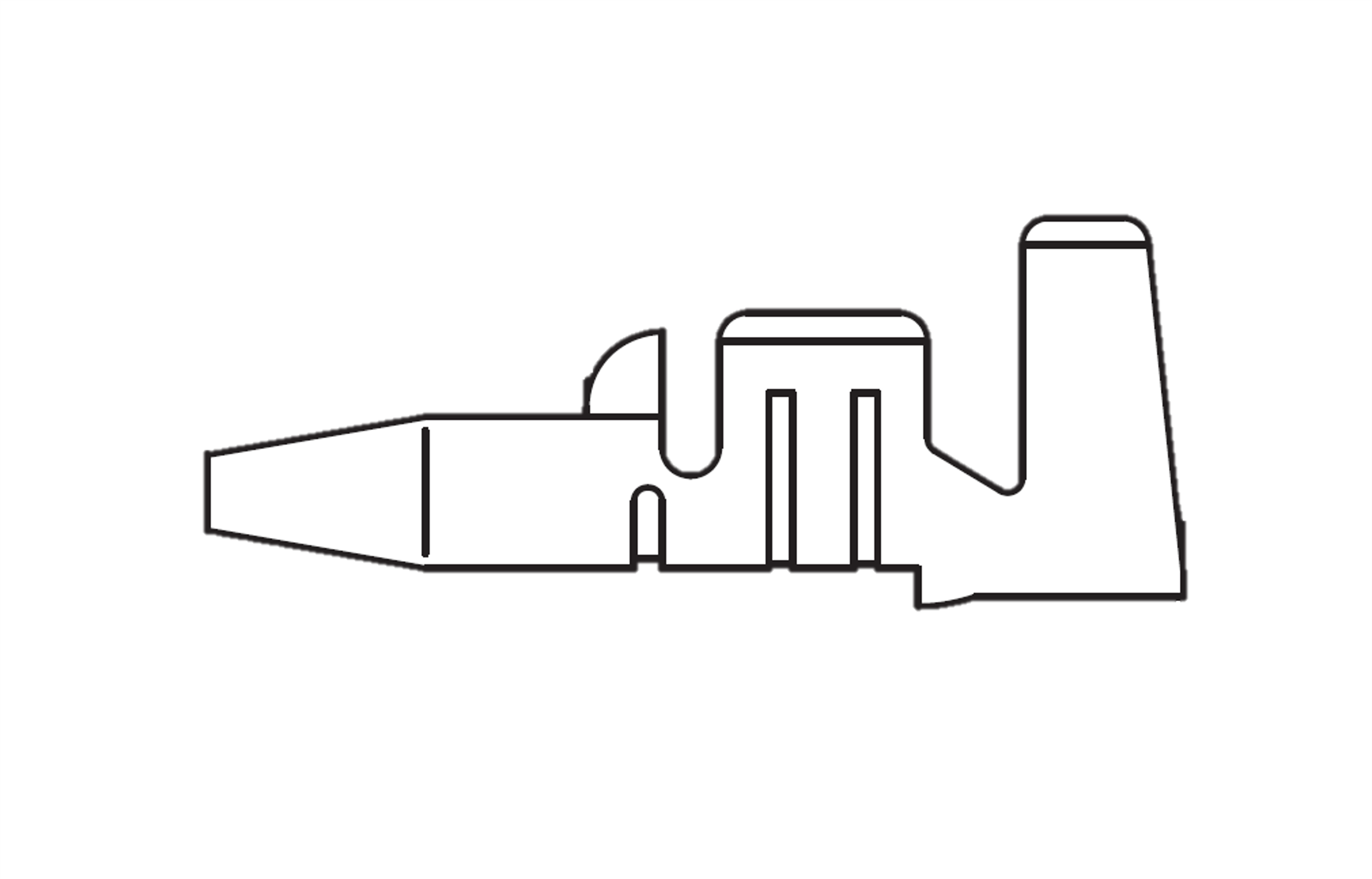

521610-2M -40 100 Φ3.20 AWG#20~18 DL0132_MCIPD06E_BI_CL.pdf
