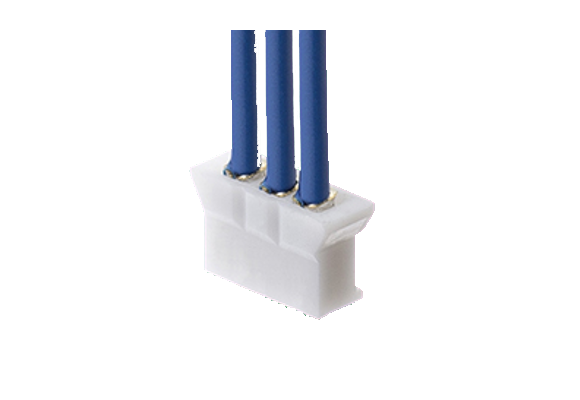

PD06E Series
1.As Large insulation distance, suitable using for power supplies
2.As 5.00mm pitch, able to apply high current
3.Terminal position is easy to check by translucent Housing
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. PD06E()M Pin Count 3,4 Pich
[mm]5.00+7.50 Current Rating
[A/Pin]7 Dielectric Withstanding
Voltage1,500V A.C.(r.m.s) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]100
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
