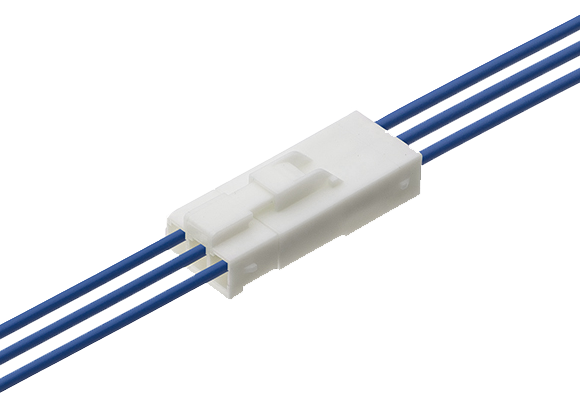

Inner-lock type 4.50mm Pitch Inline Connector

CL09 Series
1."Back Retainer" which will support terminal retention force can be attached to the Housing

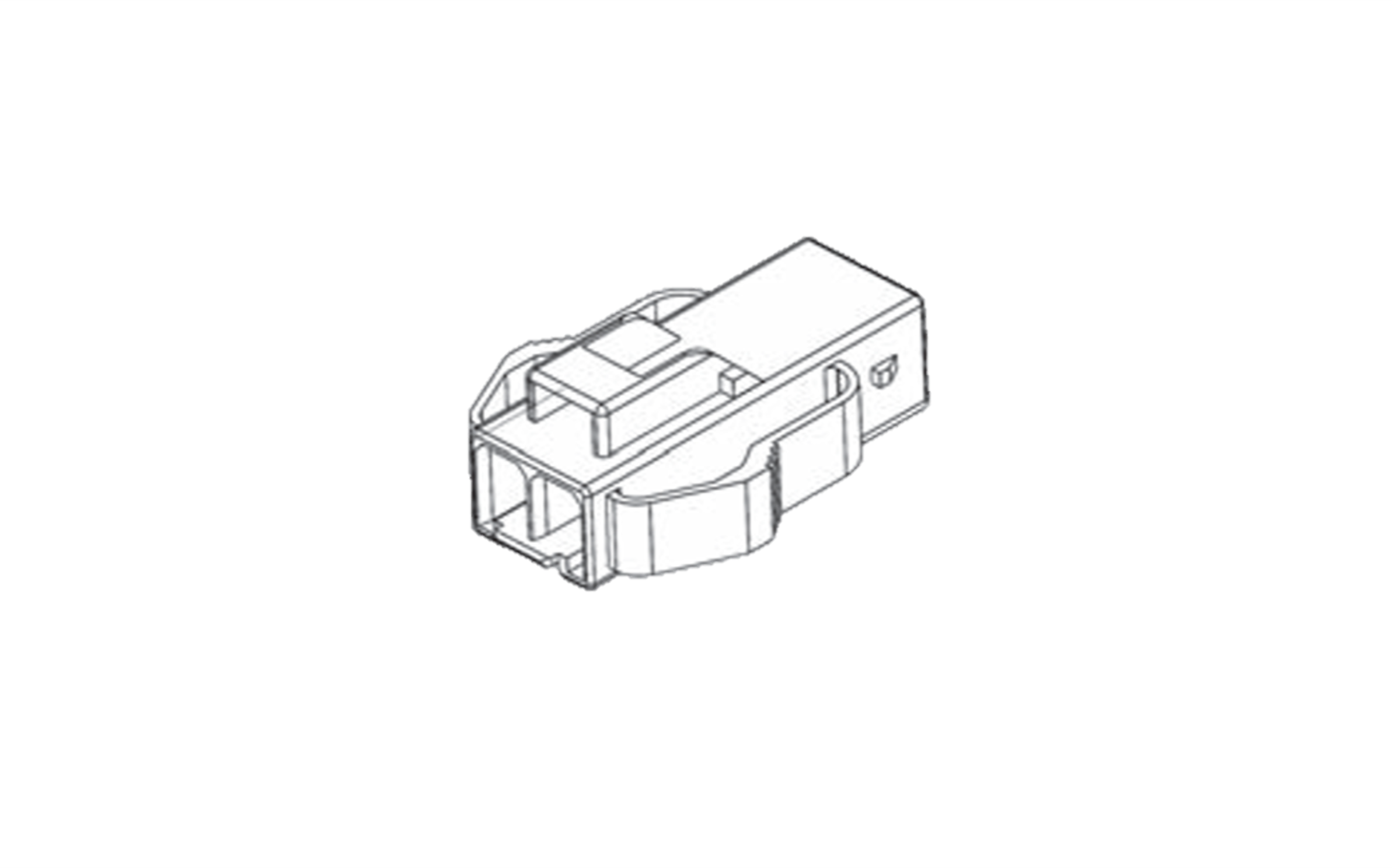

2.Panel lock type is also availabe
3.Partly applied at "Electrical Appliance and Material Safety Act"

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

Parts List

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts	Pin Count	Pich [mm]	Current Rating [A/Pin]	Dielectric Withstanding Voltage	Operating Temparature Min [deg.C]	Operating Temparature Max [deg.C]	Cable Jacket Diameter [Φ]	Applicable Cable Diameter	Catalog

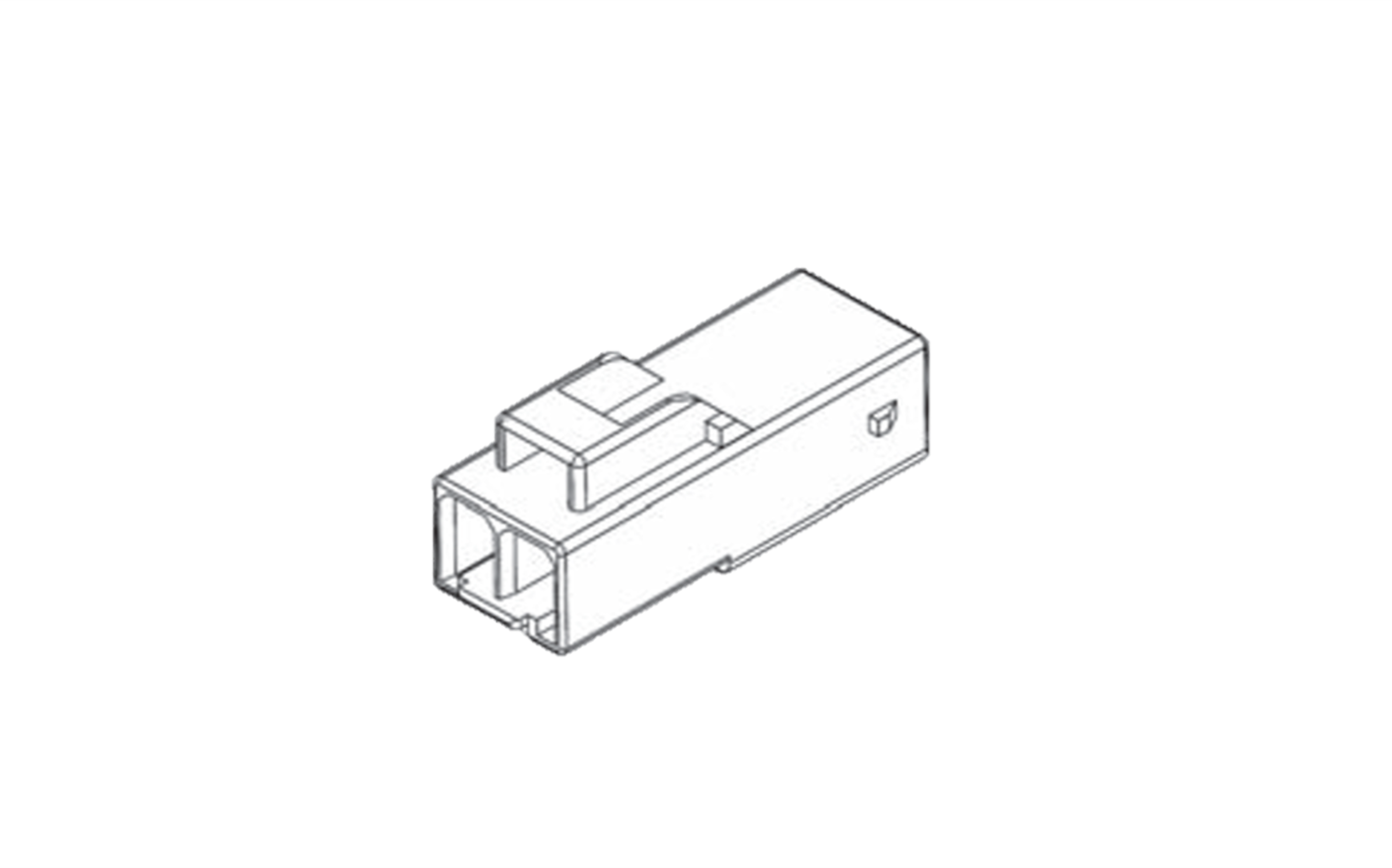

CL09A0()F	2,3,4,6	4.50×5.50	2P:12A 3P:12A 4P:10A 6P:9A	1,700V A.C.(r.m.s) for a minute	-40	105			DL0125_MCICL09_BI_CL.pdf

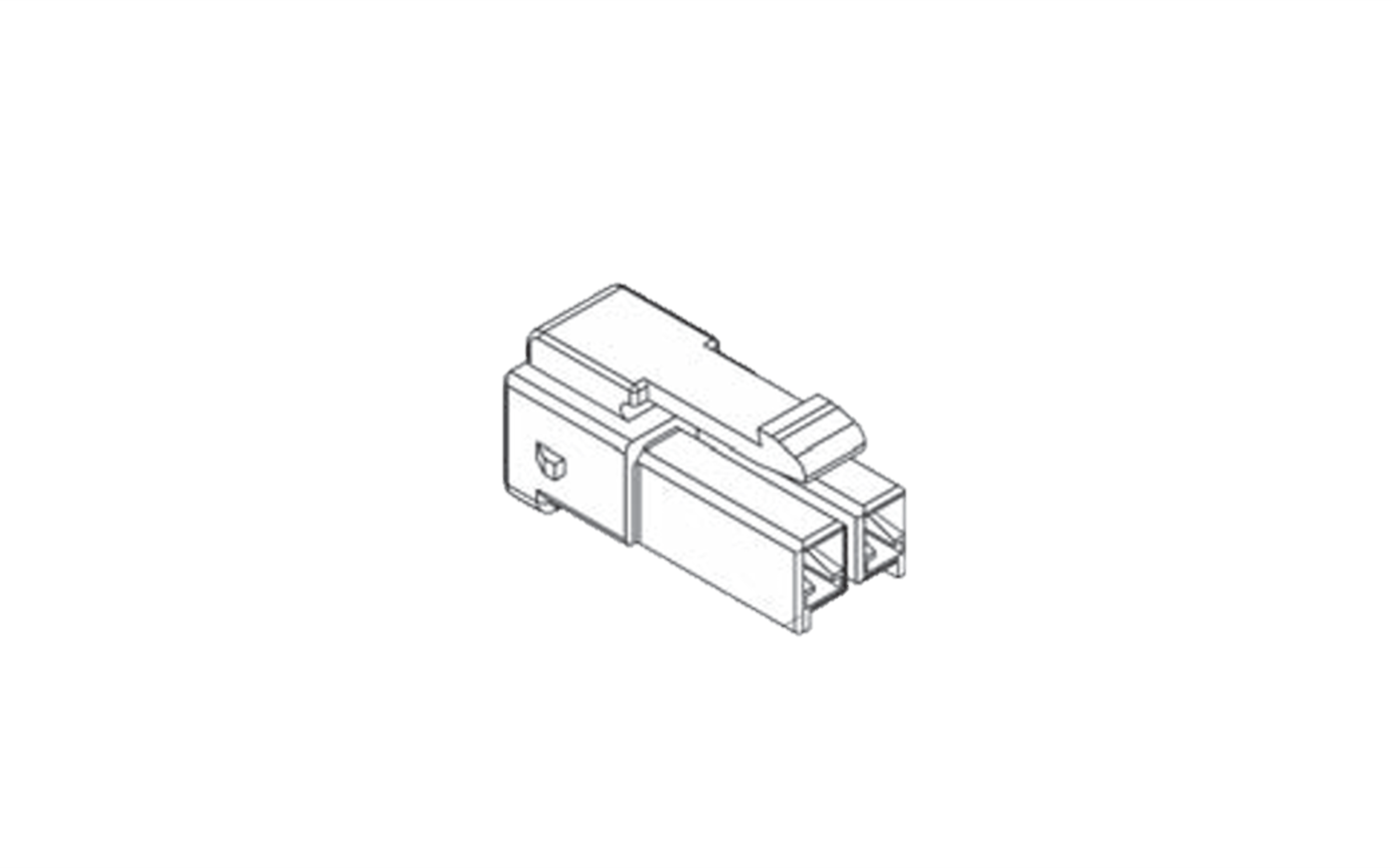

CL09A0()M	2,3,4,6	4.50×5.50	2P:12A 3P:12A 4P:10A 6P:9A	1,700V A.C.(r.m.s) for a minute	-40	105			DL0125_MCICL09_BI_CL.pdf
CL09B0()M	2,3,4,6	4.50×5.50	2P:12A 3P:12A 4P:10A 6P:9A	1,700V A.C.(r.m.s) for a minute	-40	105			DL0125_MCICL09_BI_CL.pdf

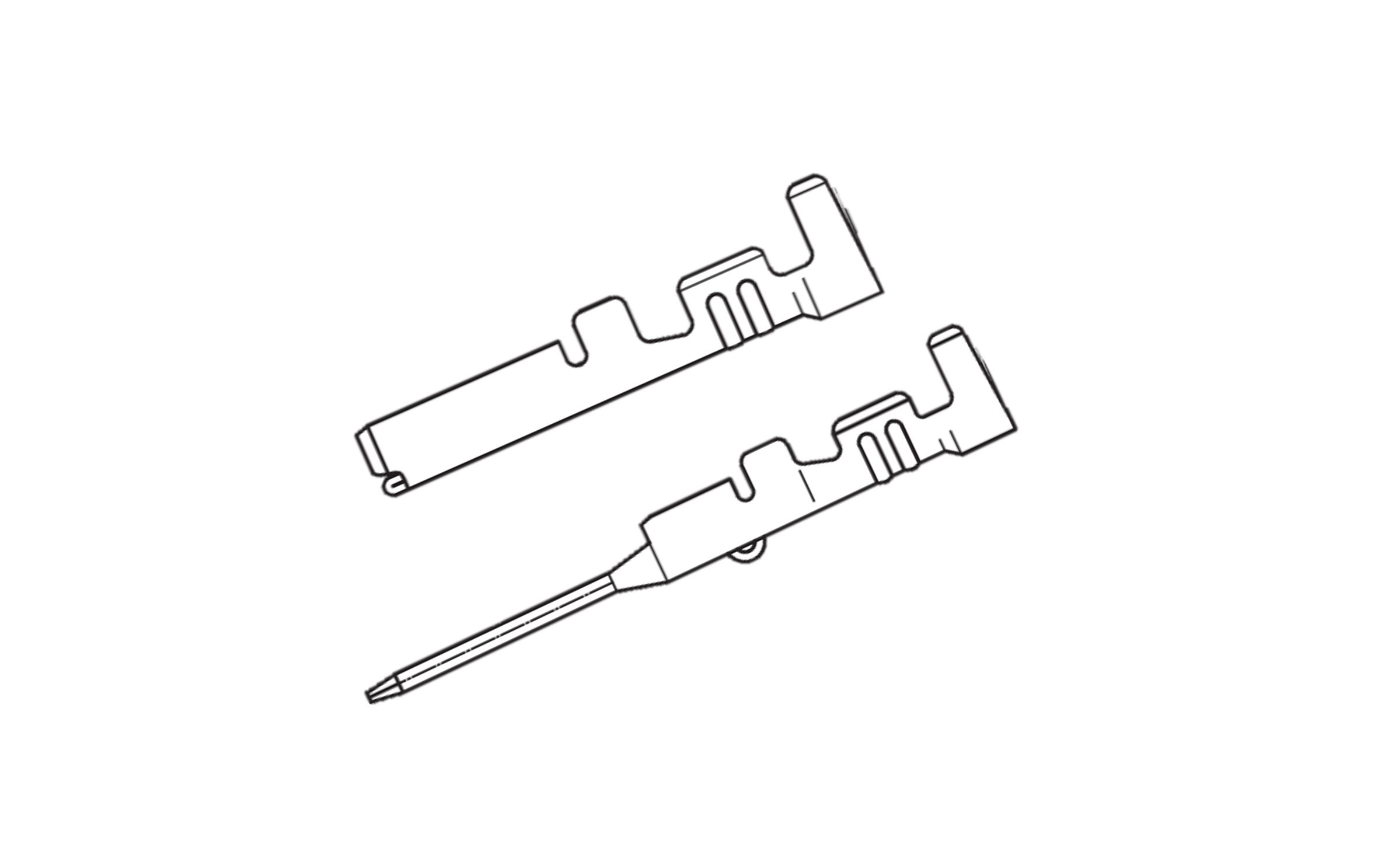

21501＊＊-2M					-40	105	＊=1,2:Φ2.60 ＊=3,4:Φ3.30 ＊=7,8:Φ1.50	＊=1,2:AWG#24~20 ＊=3,4:AWG#20~16 ＊=7,8:AWG#28~24	DL0125_MCICL09_BI_CL.pdf
