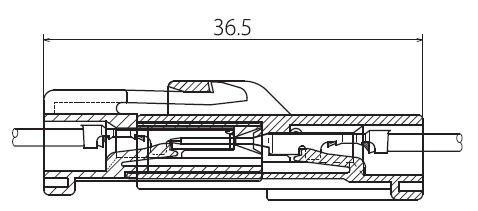

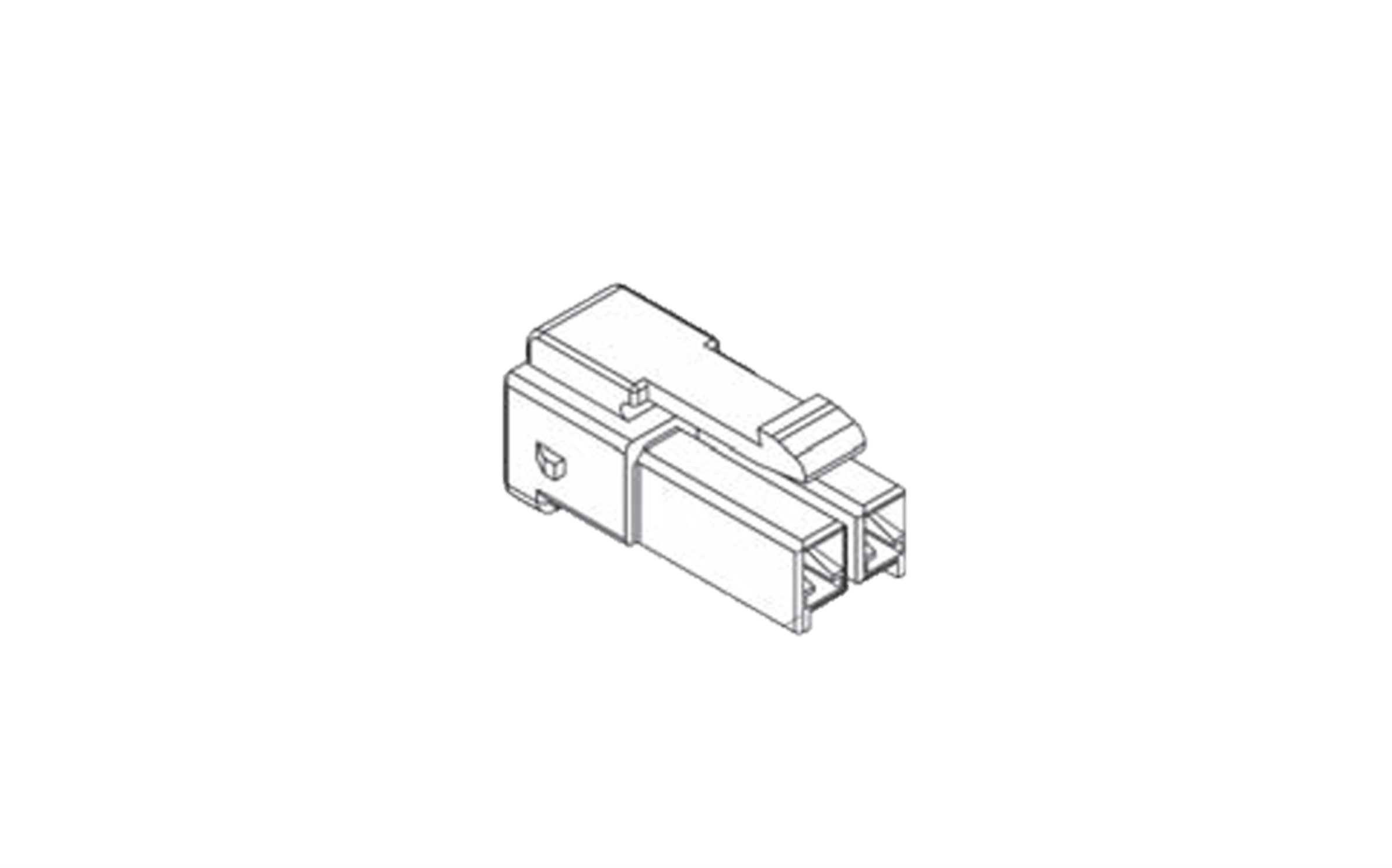

CL09A0()F

CL09 Series
1."Back Retainer" which will support terminal retention force can be attached to the Housing
2.Panel lock type is also availabe
3.Partly applied at "Electrical Appliance and Material Safety Act"

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. CL09A0()F
    Pin Count 2,3,4,6
    Pich
    [mm]    		 4.50×5.50
    Current Rating
    [A/Pin]    		 2P:12A
    3P:12A
    4P:10A
    6P:9A
    Dielectric Withstanding
    Voltage    		 1,700V A.C.(r.m.s) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
