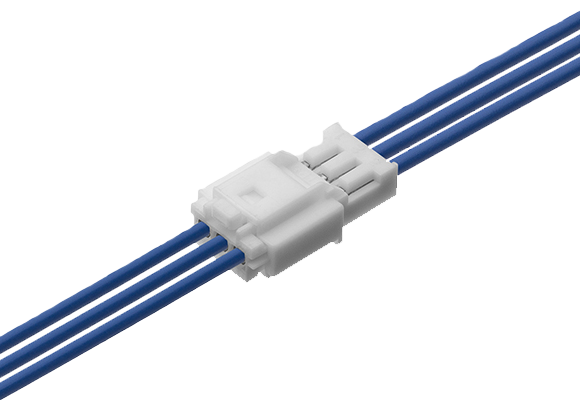

2.50mm Pitch Inline Connector CL25 Series
CL25 Series
1.Prevention of reverse insertion and Latch lock mechanism are applied
2.Applicable a wide range of wire sizes, up to AWG#30 minimum
3.Panel lock type is also availabe
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
2.50mm Pitch Inline Connector CL25 Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|

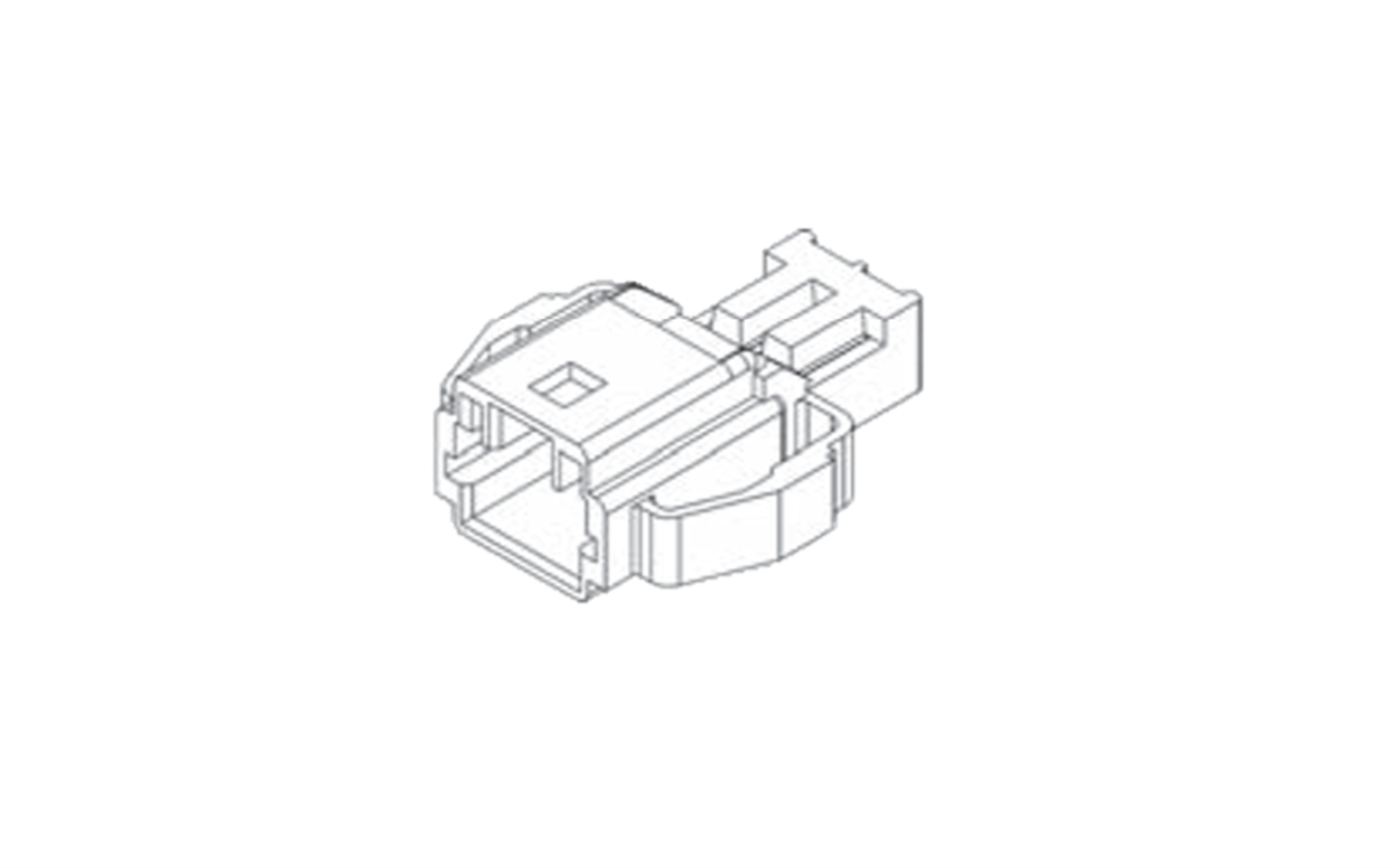

| CL25A0()F |  |
2,3,4,5 | 2.5 | 3 | 1,000V A.C.(r.m.s) for a minute | -25 | 85 | DL0121_MCICL25_BI_CL.pdf | ||

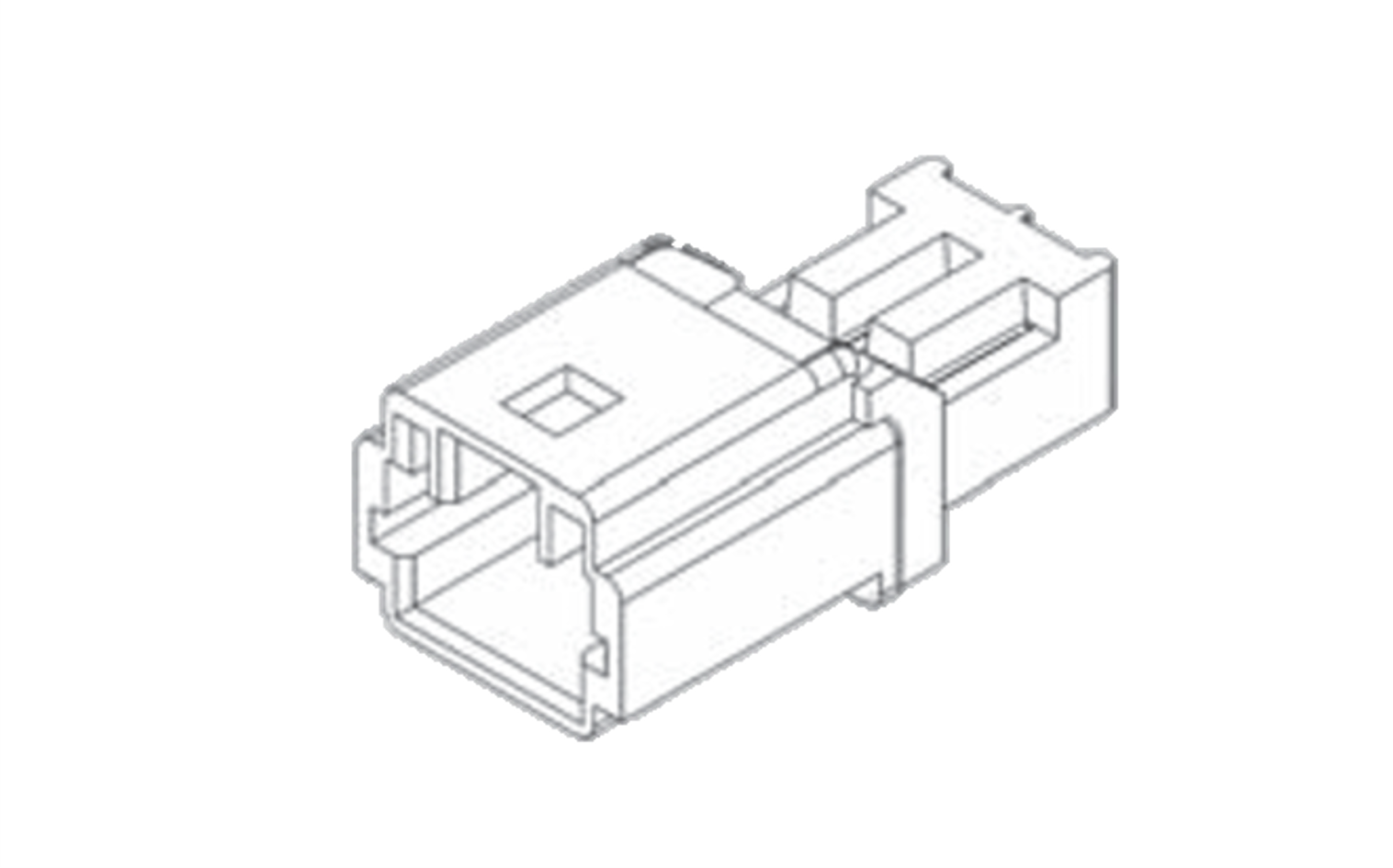

| CL25A0()M |  |
2,3,4,5 | 2.5 | 3 | 1,000V A.C.(r.m.s) for a minute | -25 | 85 | DL0121_MCICL25_BI_CL.pdf | ||

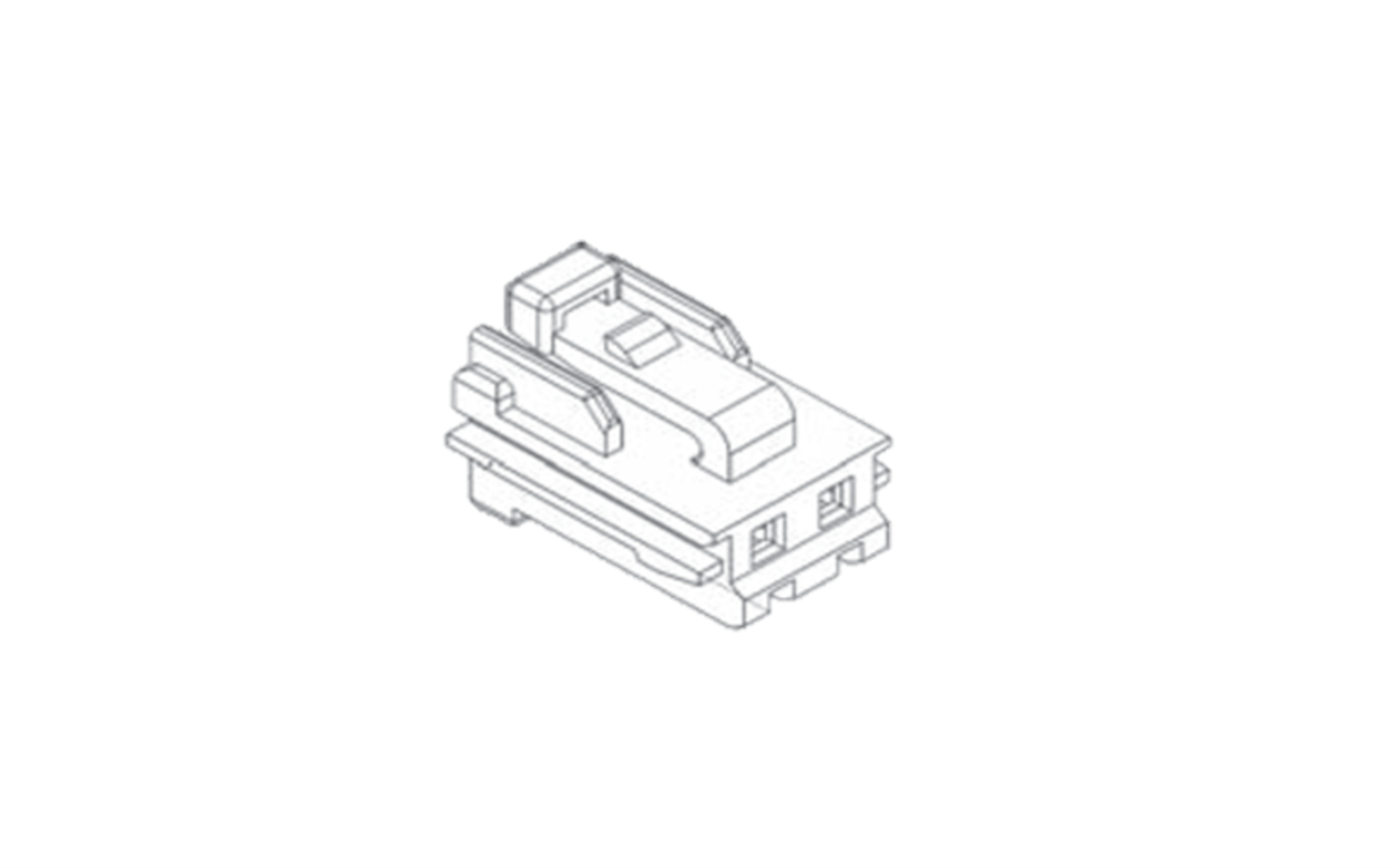

| CL25B0()M |  |
2,3,4,5 | 2.5 | 3 | 1,000V A.C.(r.m.s) for a minute | -25 | 85 | DL0121_MCICL25_BI_CL.pdf | ||

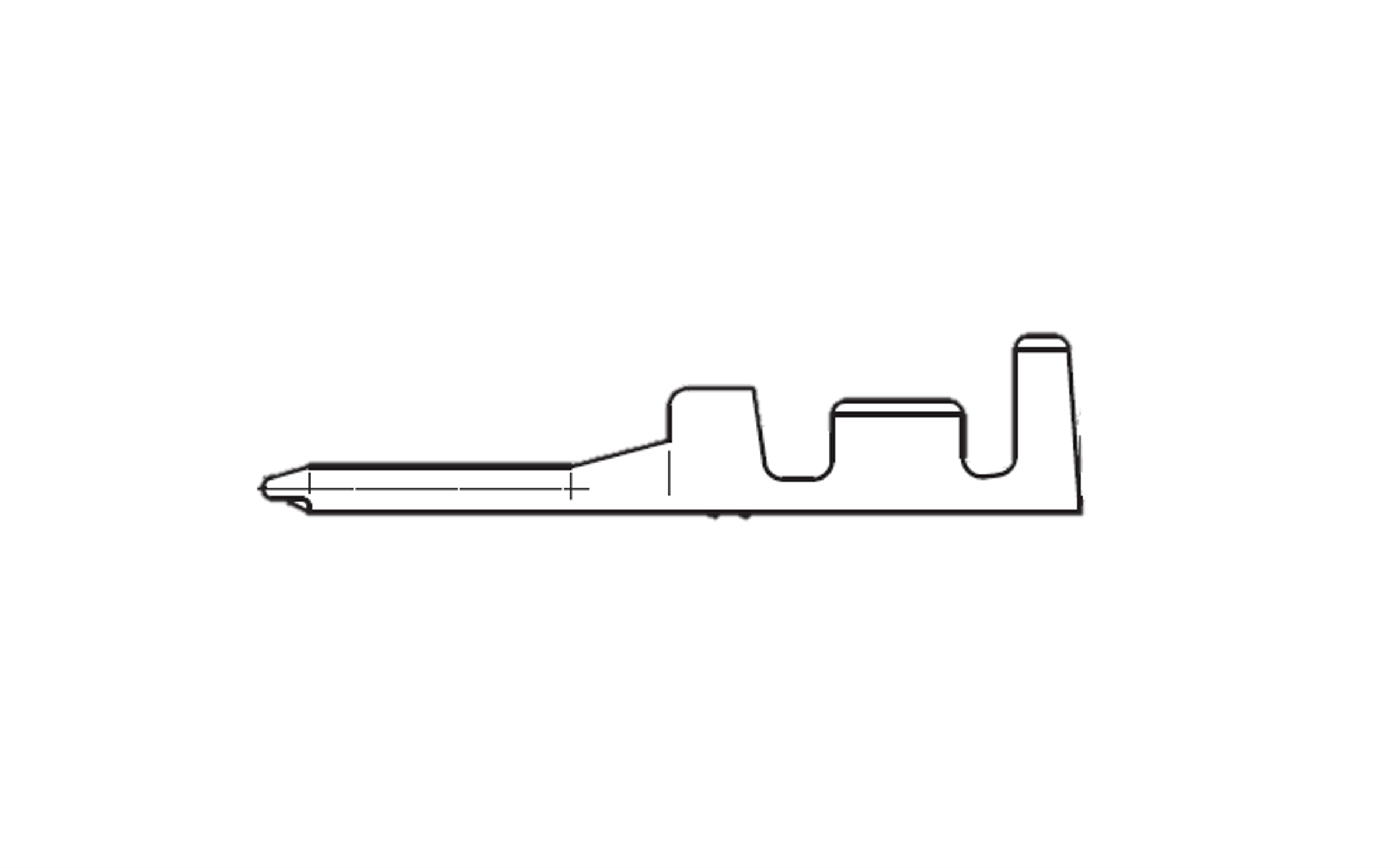

| 50634＊-2M |  |
-25 | 85 | Φ1.50 | AWG#30~24 | DL0121_MCICL25_BI_CL.pdf | ||||
| 50635＊-2M |  |
-25 | 85 | Φ1.70 | AWG#24~22 | DL0121_MCICL25_BI_CL.pdf | ||||

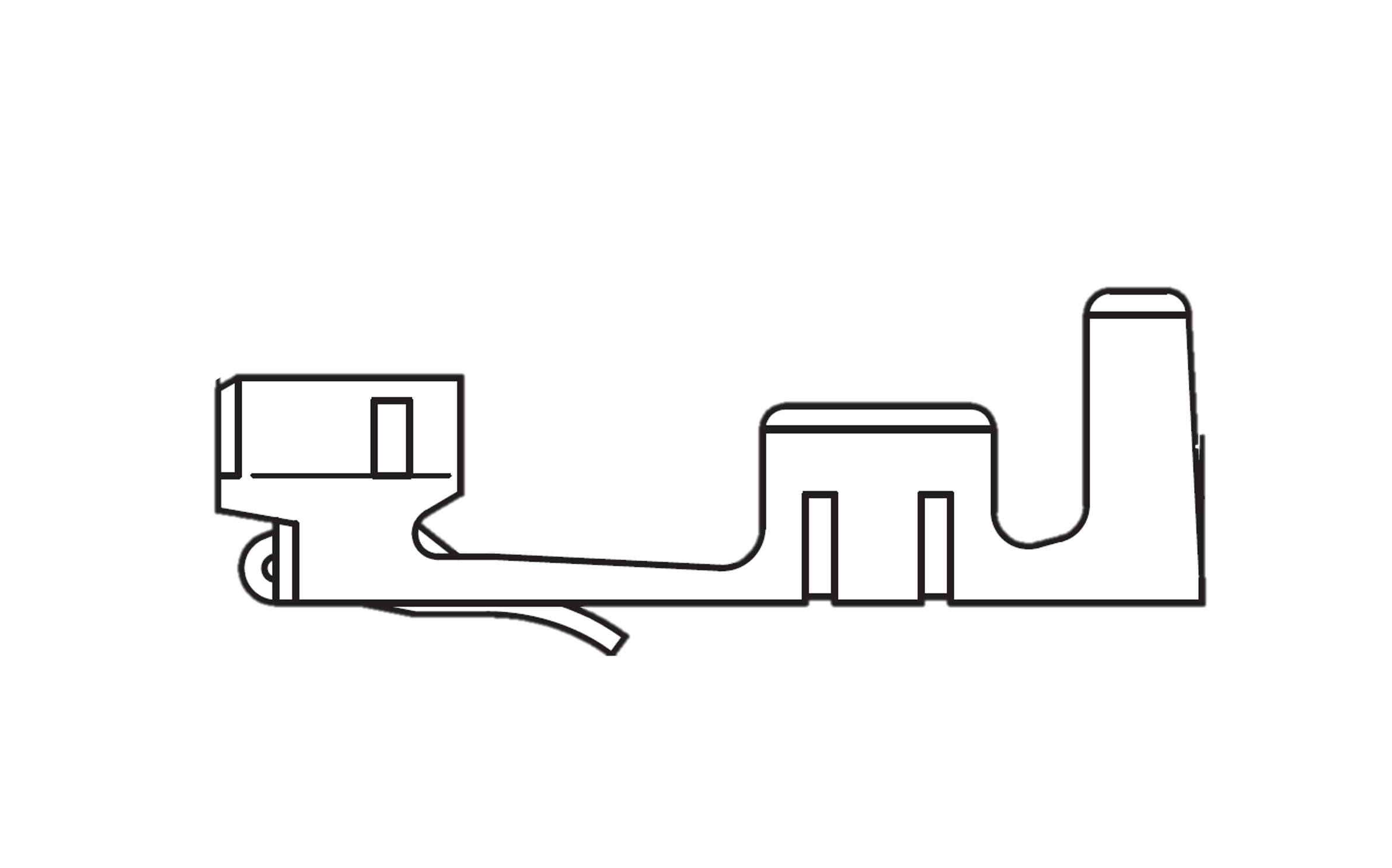

| 706326-2MK |  |
-25 | 85 | Φ1.50 | AWG#30~24 | DL0121_MCICL25_BI_CL.pdf | ||||
| 706426-2MK |  |
-25 | 85 | Φ1.70 | AWG#24~22 | DL0121_MCICL25_BI_CL.pdf |
