2.00mm Pitch Board-In Connector SBL001

SBL001 Series
1.Low height design right angle connector
2.PBT material is applied on this Housing
3.Terminal retention by Housing lance

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Appearance

Pin Count

Pich
[mm]

Current Rating
[A/Pin]

Dielectric Withstanding
Voltage

Operating Temparature
Min
[deg.C]

Operating Temparature
Max
[deg.C]

Cable Jacket Diameter
[Φ]

Applicable Cable Diameter

Drawing

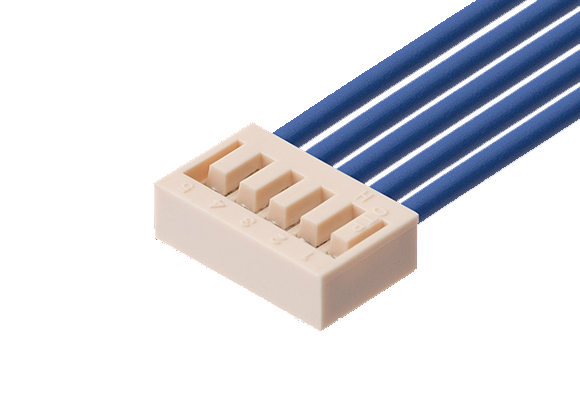

SBL-001-() 2,3,4,5,6,7,8,9,10,11,12,13,14,15 2 3 500V A.C.(r.m.s) for a minute -40 105 DL0133_MCISBL001_BI_CL.pdf

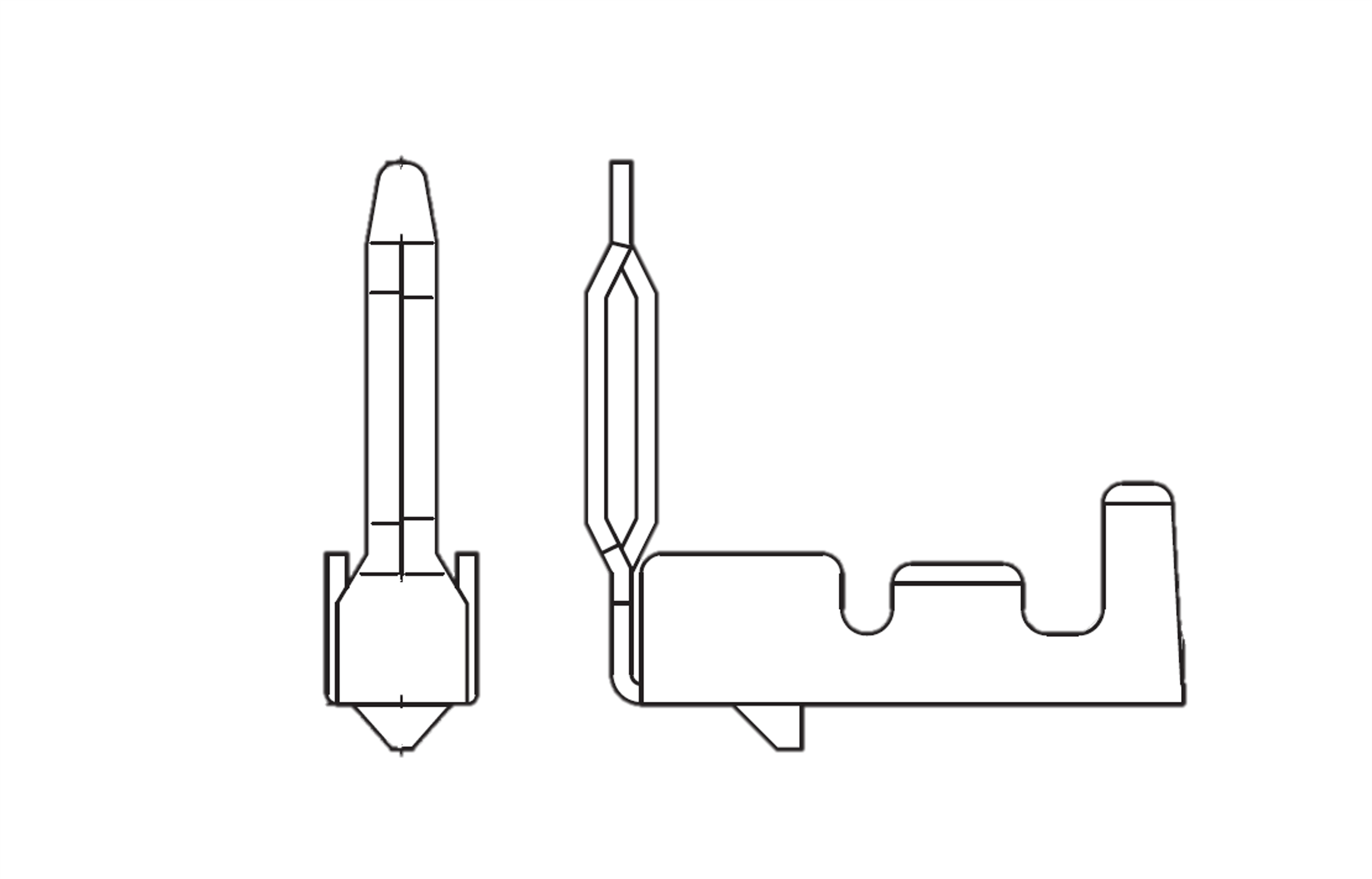

508391-2MA -40 105 Φ1.30 AWG#28~24 DL0133_MCISBL001_BI_CL.pdf
