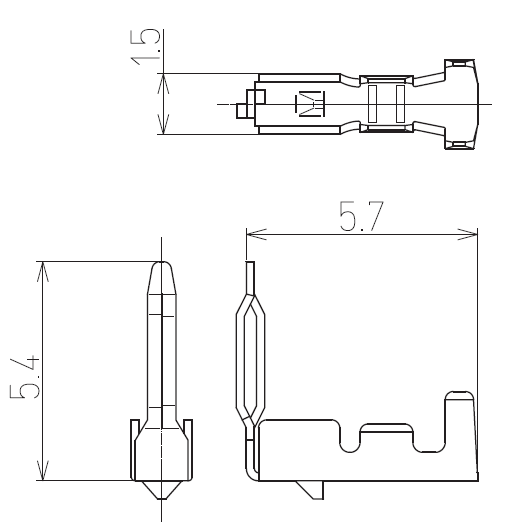

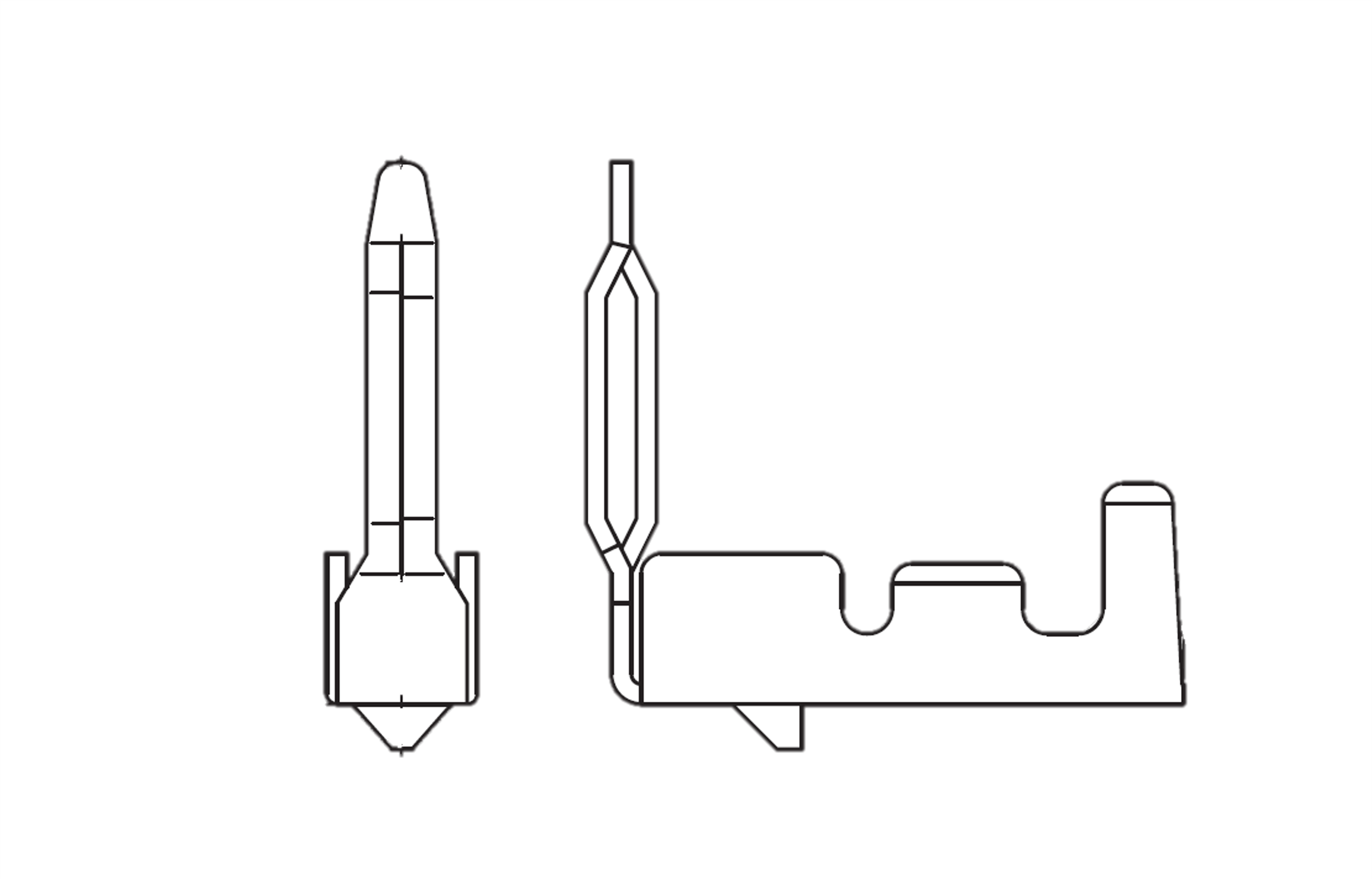

508391-2MA

SBL001 Series
1.Low height design right angle connector
2.PBT material is applied on this Housing
3.Terminal retention by Housing lance

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. 508391-2MA
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 105
    Cable Jacket Diameter
    [Φ]    		 Φ1.30
    Applicable Cable Diameter AWG#28~24

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
