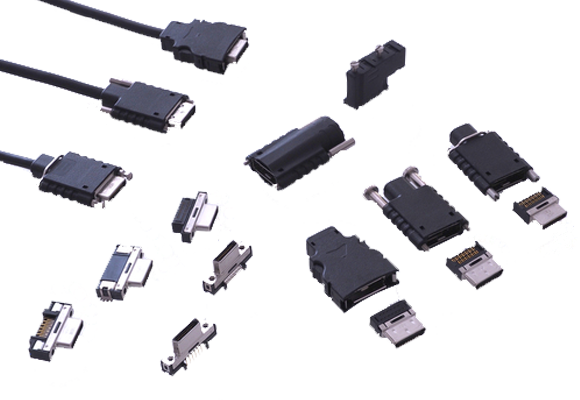

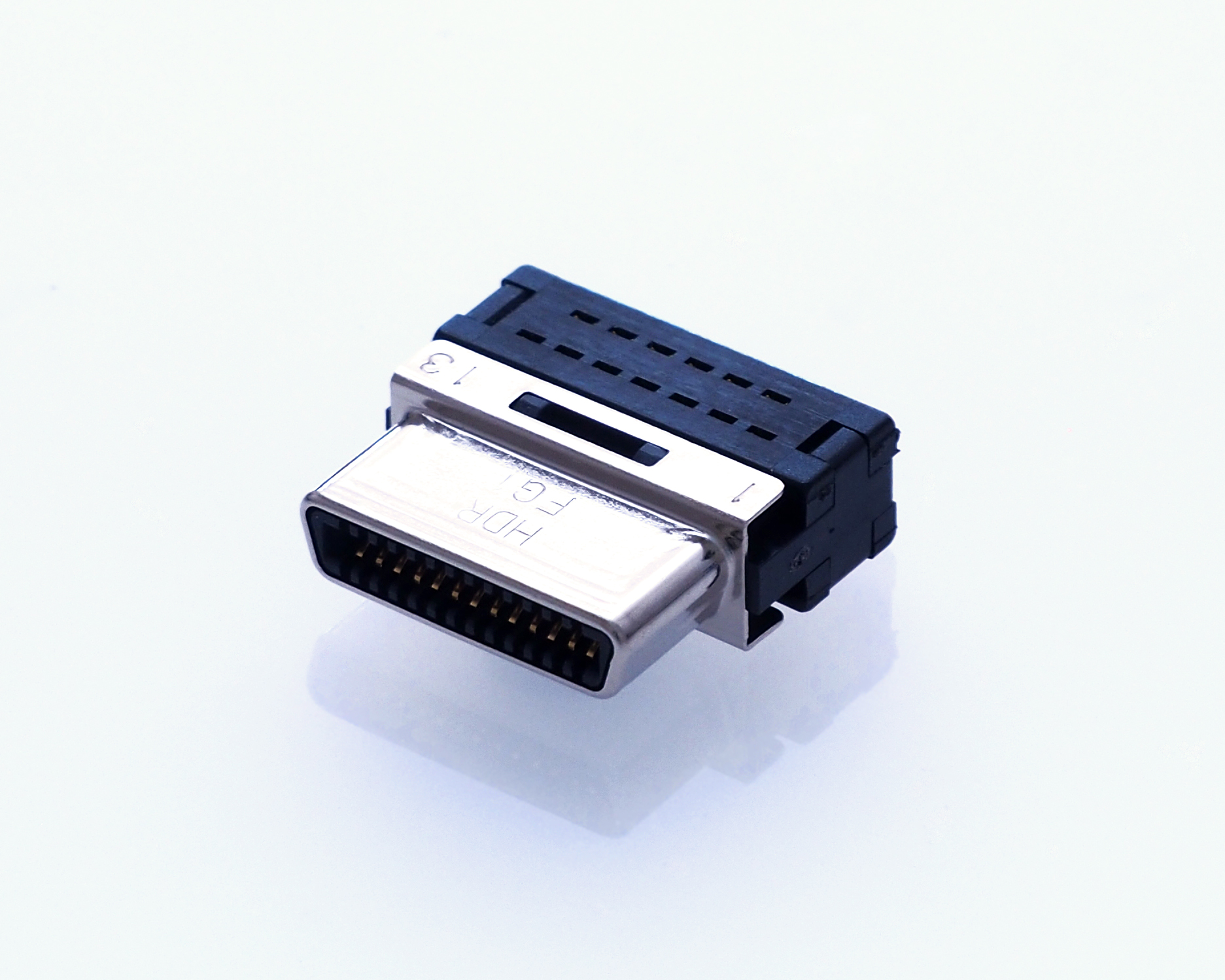

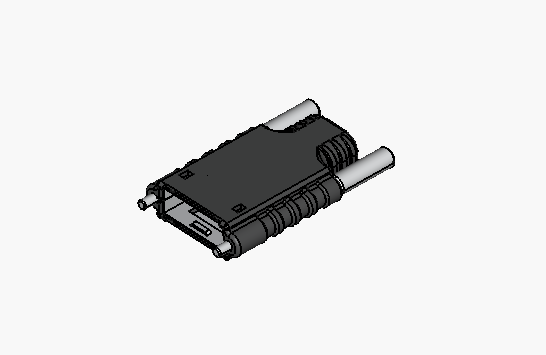

0.8mm pitch interface connector HDR Series
HDR Series
１．Small size (reduced 50% mounting area comparing to 1.27mm pitch)
２．Metal-shell for high EMI
３．Various Combination
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
0.8mm pitch interface connector HDR Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Drawing |

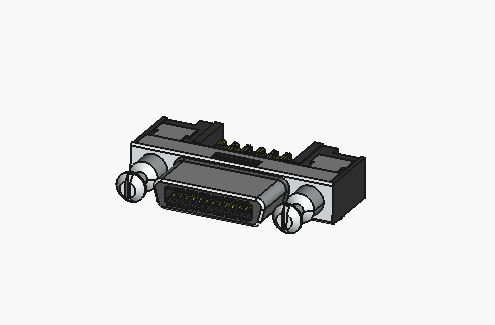

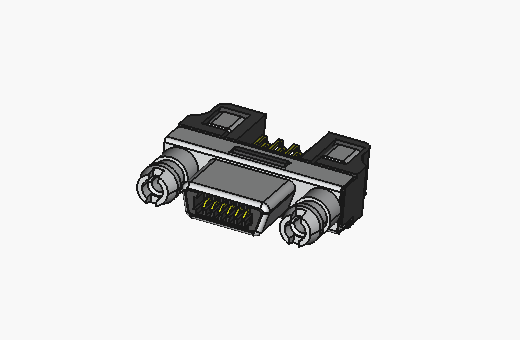

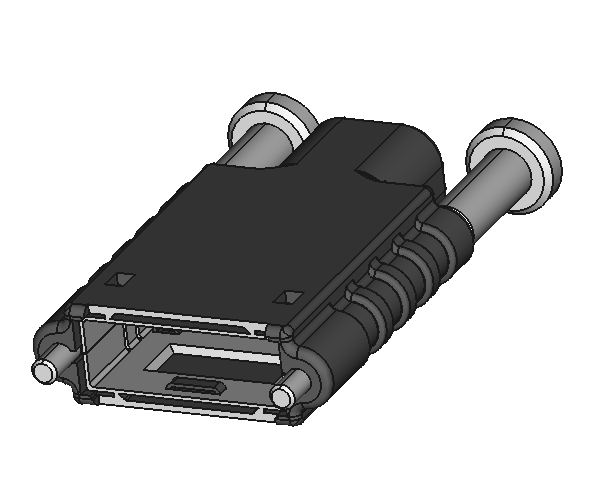

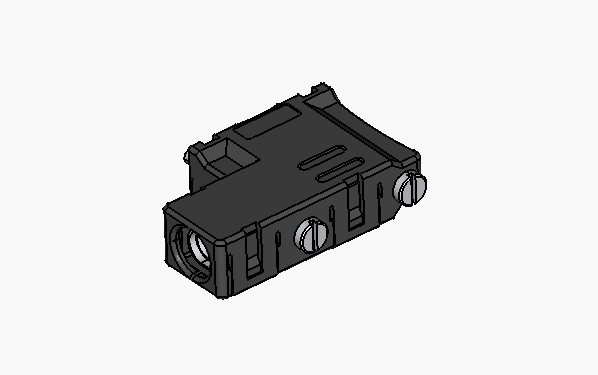

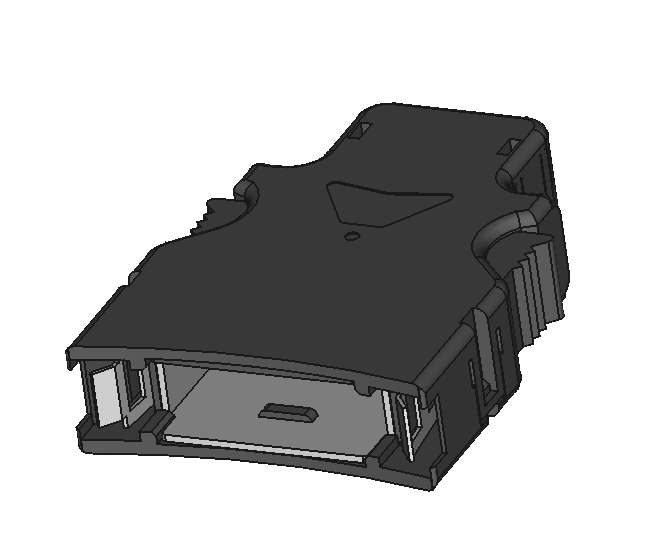

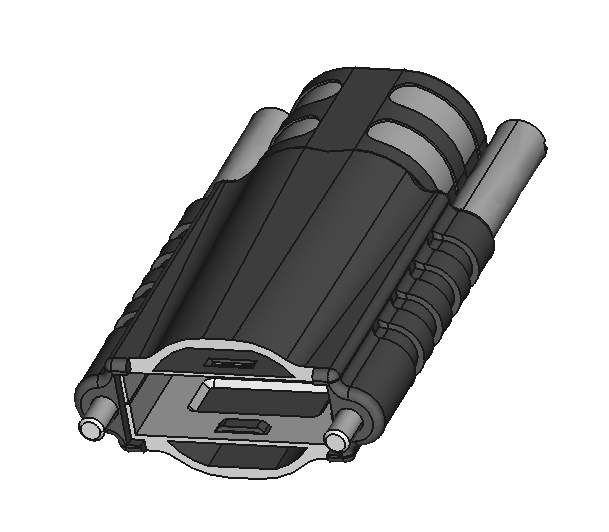

|---|---|---|---|---|---|---|---|---|---|---|---|
| HDR-AS-0146-L*00+ |  |
50 | 0.8 | Screw lock harness/IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0044_HTKHDR_EN.pdf | |
| HDR-AS-0147-L*00+ |  |
50 | 0.8 | Spring lock harness/IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0045_HTKHDR_EN.pdf | |
| HDR-AS-0148-L*00+ |  |
26 | 0.8 | Screw lock harness/IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0046_HTKHDR_EN.pdf | |
| HDR-AS-0149-L*00+ |  |
26 | 0.8 | Spring lock harness/IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0047_HTKHDR_EN.pdf | |
| HDR-AS-0151-L*00+ |  |
14 | 0.8 | Screw lock harness/IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0048_HTKHDR_EN.pdf | |
| HDR-AS-0152-L*00+ |  |
14 | 0.8 | Spring lock harness/IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | AWG#30 | DL0049_HTKHDR_EN.pdf | |
| HDR-E14SLPZ+ |  |
14 | Case | -55 | 85 | Φ5.3 | DL0050_HTKHDR_EN.pdf | ||||
| HDR-E()LPAP* |  |
14,26,50 | For IDC case | -55 | 85 | ()=14:Φ5.1 ()=26:Φ5.9 ()=50:Φ7.3 |
DL0051_HTKHDR_EN.pdf | ||||
| HDR-E()LPHP*+ |  |
14,26,50 *=None,2,3 |

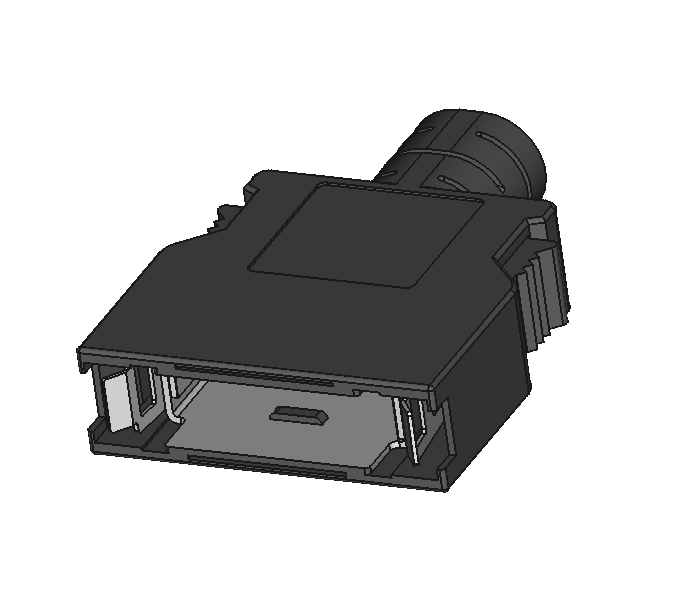

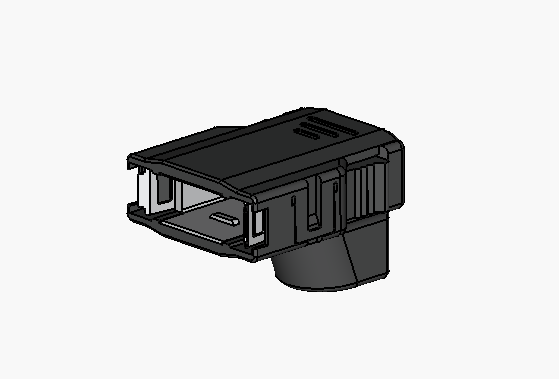

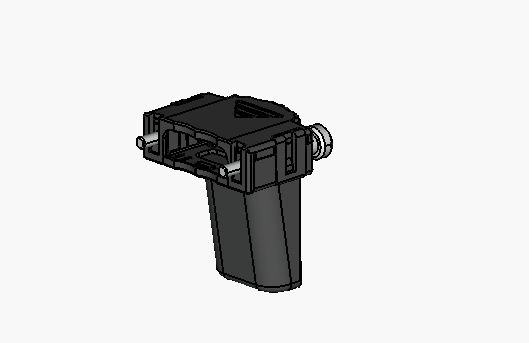

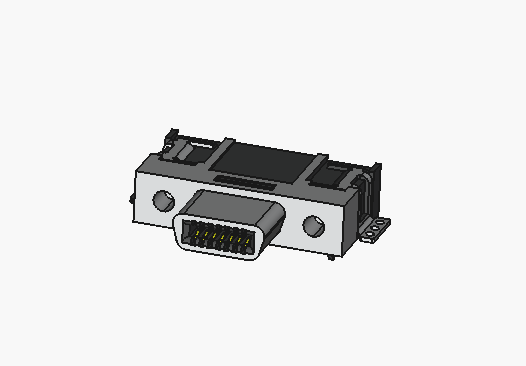

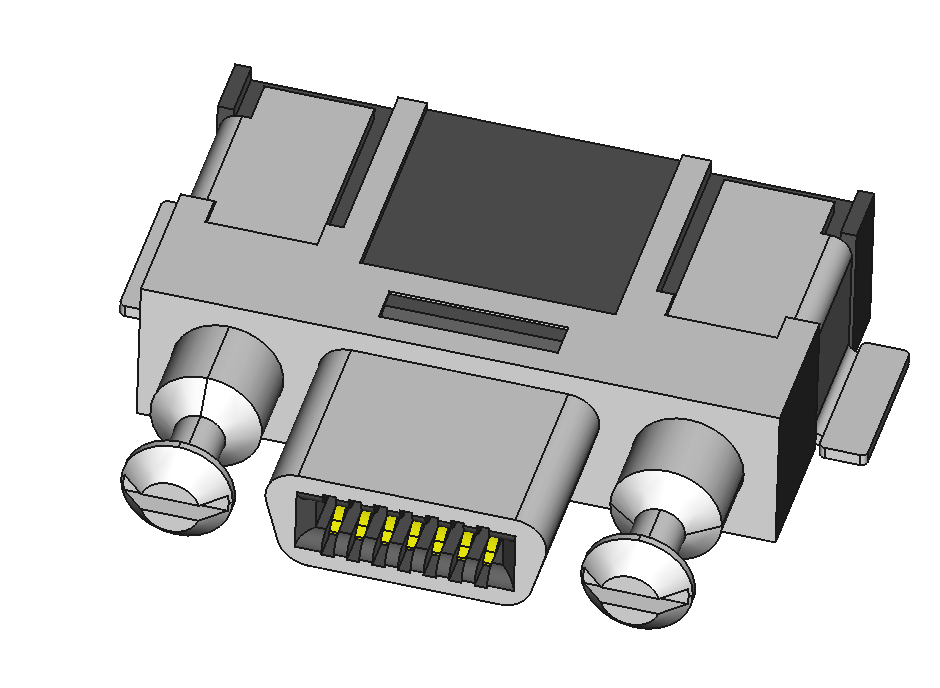

Case | -55 | 85 | ()=14,26:Φ6.5 ()=50:Φ8.5 |
DL0052_HTKHDR_EN.pdf | ||||
| HDR-E26LPKP+ |  |
26 | Case | -55 | 85 | Φ11.7 | DL0054_HTKHDR_EN.pdf | ||||
| HDR-E()LPJP+ |  |
26,50 | For Soldering case | -55 | 85 | ()=26:Φ6.8 ()=50:Φ8.0 |
DL0056_HTKHDR_EN.pdf | ||||
| HDR-E26ALP*P+ |  |
26 | Case | -55 | 85 | *=A:Φ6.0～6.8 *=B:Φ10.7～11.7 |
DL0057_HTKHDR_EN.pdf | ||||
| HDR-E26LPMP+ |  |
26 | Case | -55 | 85 | Φ7.5 | DL0058_HTKHDR_EN.pdf | ||||
| HDR-E14ALPC+ |  |
14 | Case | -55 | 85 | Φ5.1 | DL0059_HTKHDR_EN.pdf | ||||
| HDR-EA()LFYPG1-*+ |  |

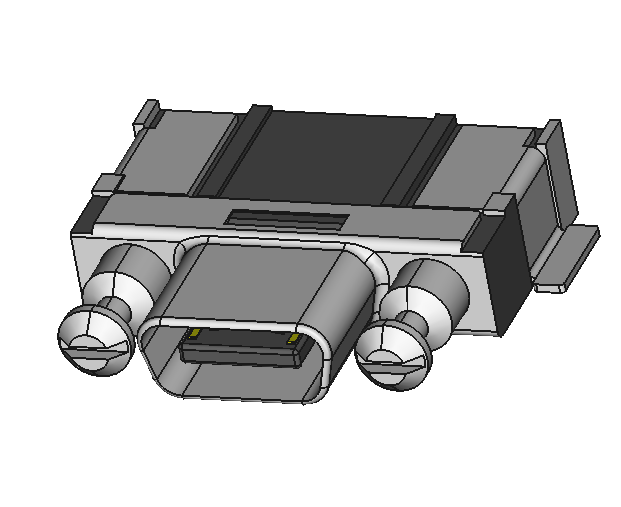

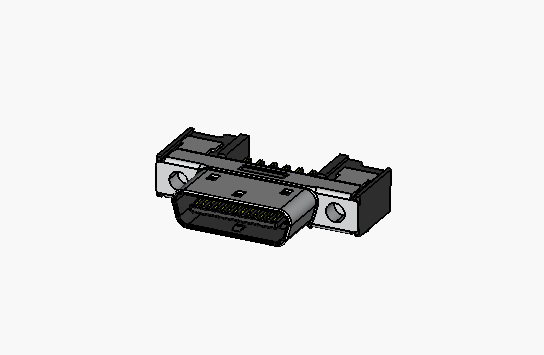

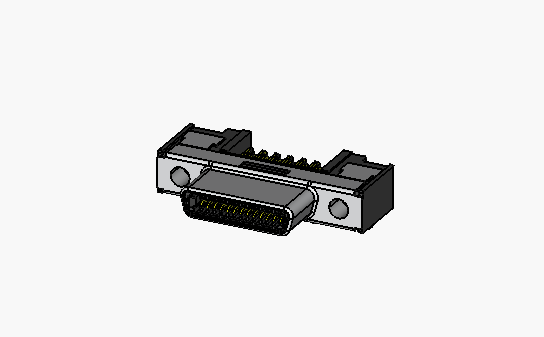

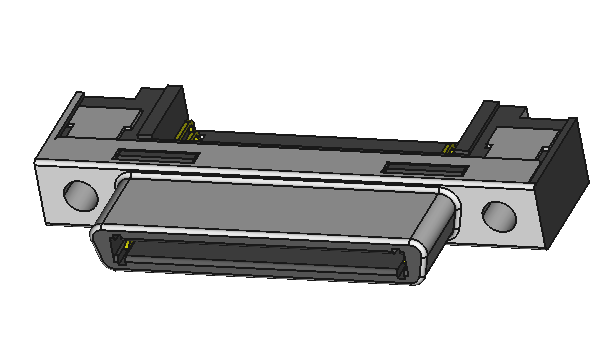

14,26 | 0.8 | Right-angle SMT 基板固定：Screw fastening |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0060_HTKHDR_EN.pdf | ||
| HDR-EA()LFYWG1+ |  |
14,26 | 0.8 | Right-angle SMT 基板固定：Locking pin |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0061_HTKHDR_EN.pdf | ||
| HDR-EA()LMYPG1-*+ |  |
14,26 | 0.8 | Right-angle SMT 基板固定：Screw fastening |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0062_HTKHDR_EN.pdf | ||
| HDR-EC()LFDT-*+ | 26,50 | 0.8 | Right-angle DIP |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0063_HTKHDR_EN.pdf | |||
| HDR-EC()LFDT1-*+ |  |
14,50 | 0.8 | Right-angle DIP |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0064_HTKHDR_EN.pdf | ||
| HDR-EC()LFDT2-*+ |  |
14,50 | 0.8 | Right-angle DIP |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0065_HTKHDR_EN.pdf | ||
| HDR-EC()LFDTG2-*+ |  |
14,26,50 | 0.8 | Right-angle DIP |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0066_HTKHDR_EN.pdf | ||
| HDR-EC14LFDTN-*+ |  |
14 *None,SLE |

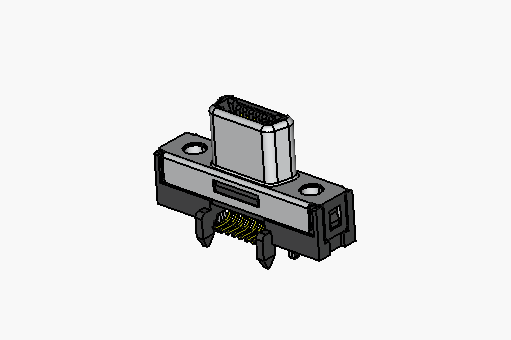

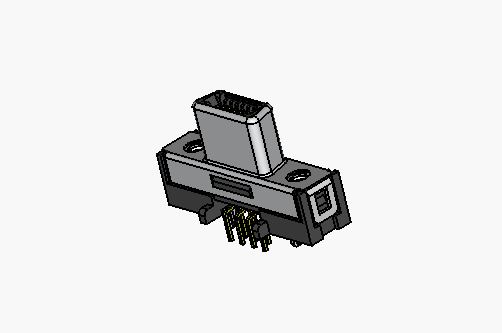

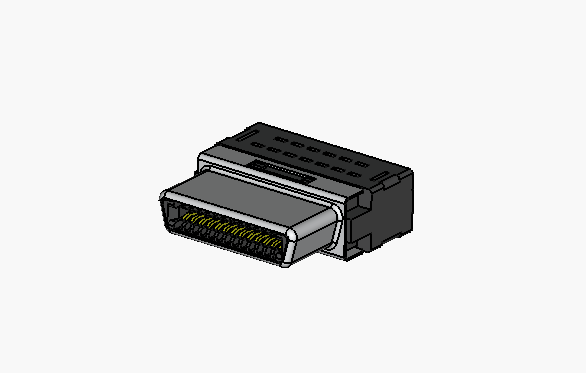

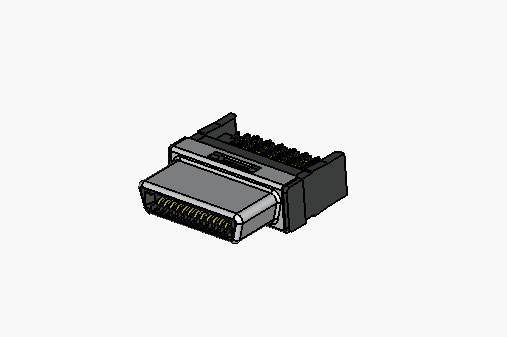

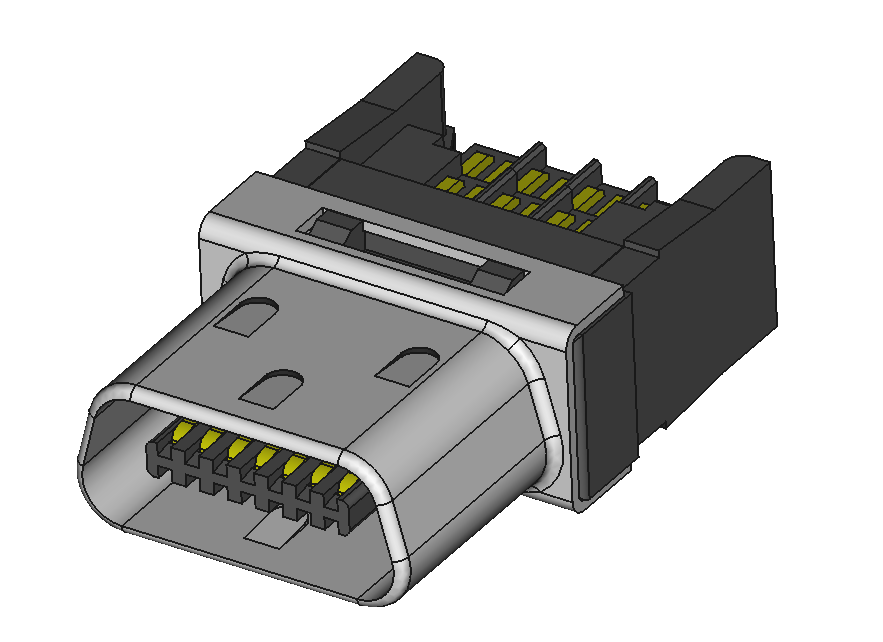

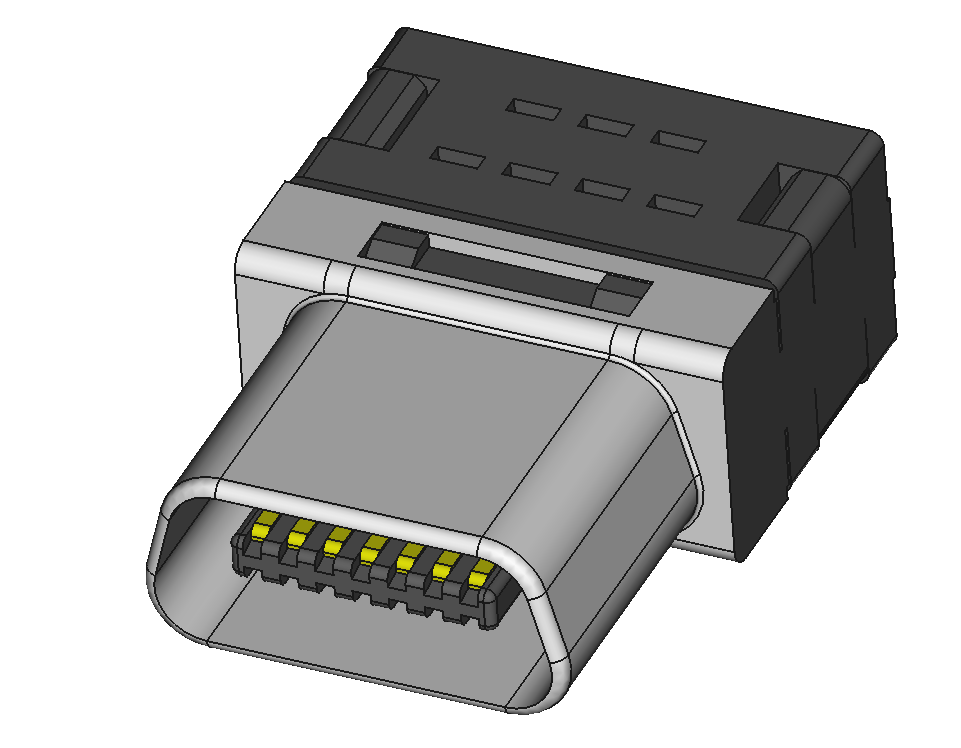

0.8 | Right-angle DIP |
0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0067_HTKHDR_EN.pdf | ||
| HDR-EC()FDTG2-*+ |  |
14,26 | 0.8 | Straight DIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0068_HTKHDR_EN.pdf | ||
| HDR-EC()FYTG2+ |  |
14,26 | 0.8 | Straight SMT | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0069_HTKHDR_EN.pdf | ||
| HDR-EC26LMDTG1-*+ |  |
26 | 0.8 | Straight DIP | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | DL0070_HTKHDR_EN.pdf | ||
| HDR-E()FAG1+ |  |
14,26,50 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#30 | DL0071_HTKHDR_EN.pdf |
| HDR-E()FG1+ |  |
14,26,50 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#28 | DL0071_HTKHDR_EN.pdf |
| HDR-E()FSG1+ |  |
14,26 | 0.8 | Soldering | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ1.0 | AWG#28 | DL0072_HTKHDR_EN.pdf |
| HDR-E()MAG1+ |  |
14,26,50 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#30 | DL0073_HTKHDR_EN.pdf |
| HDR-E()MG1+ | 14,26,50 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#28 | DL0073_HTKHDR_EN.pdf | |
| HDR-E()MSG1+ |  |
14,26,50 | 0.8 | Soldering | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ1.0 | AWG#28 | DL0074_HTKHDR_EN.pdf |
| HDR-E26MBAG1+ | 26 | 0.8 | IDC | 0.5 | 350V A.C.(r.m.s.) for a minute | -55 | 85 | Φ0.58 | AWG#32 | DL0073_HTKHDR_EN.pdf | |

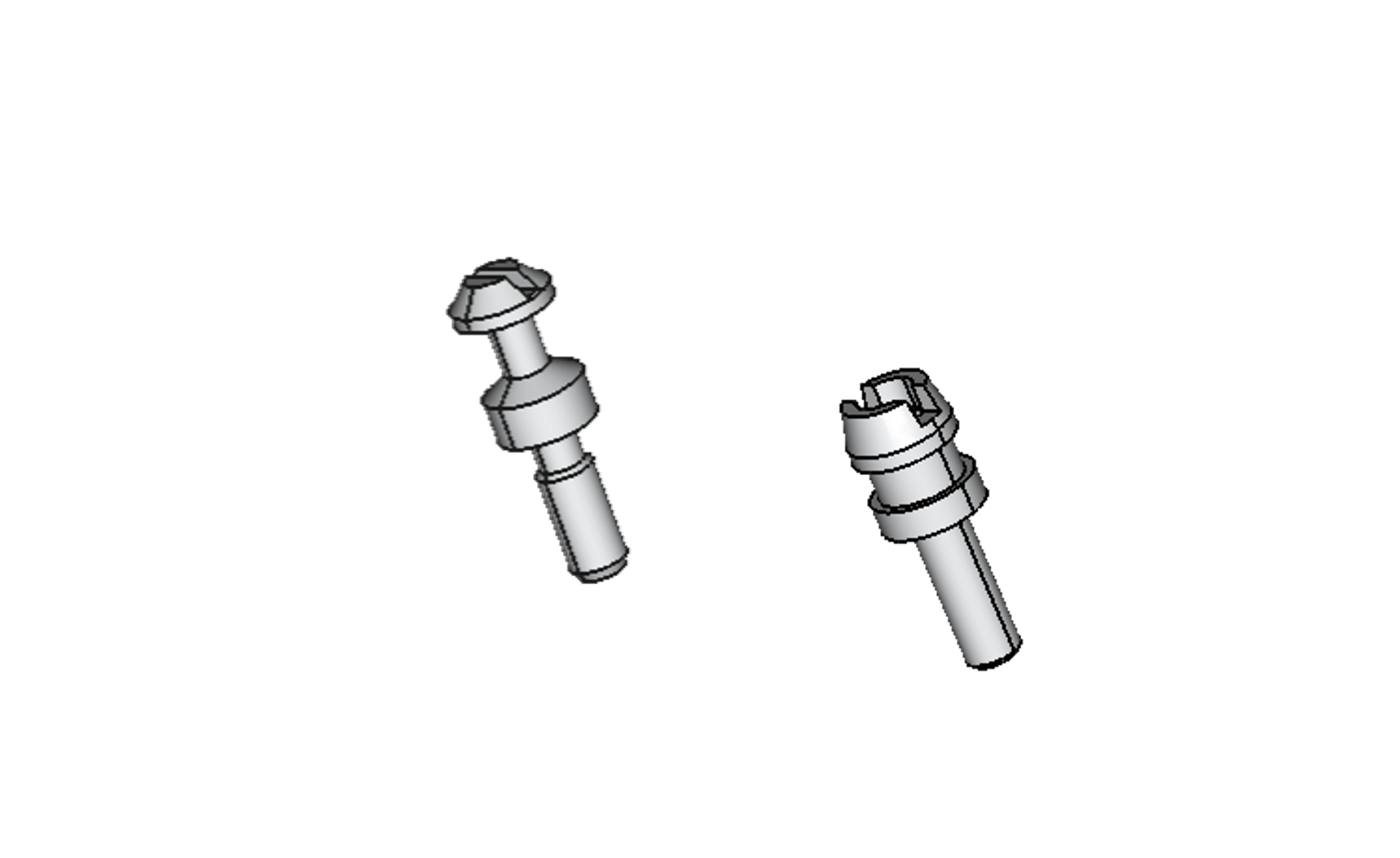

| HDR Screw |  |
-55 | 85 | DL0076_HTKHDR_EN.pdf |
