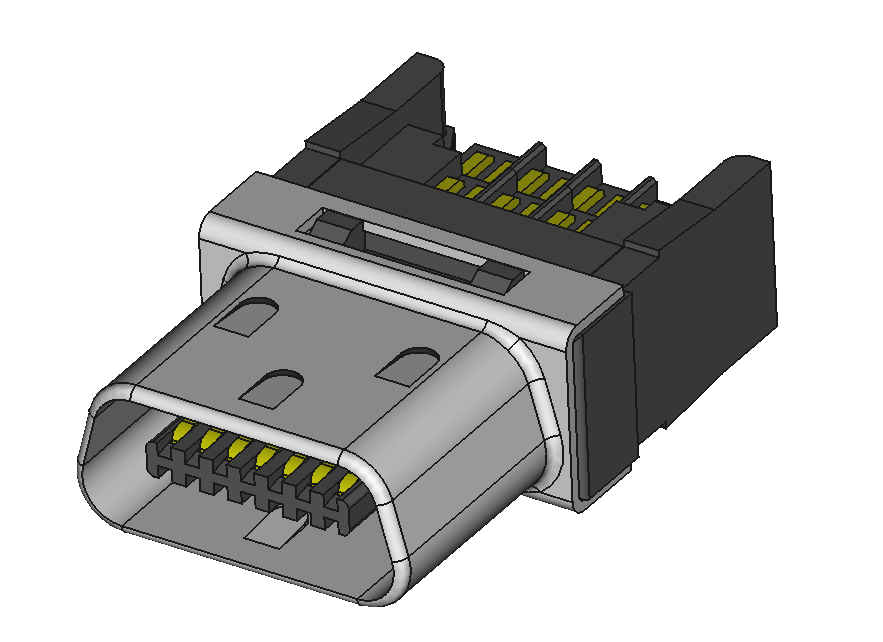

HDR Series
１．Small size (reduced 50% mounting area comparing to 1.27mm pitch)
２．Metal-shell for high EMI
３．Various Combination
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. HDR-E()MSG1+ Pin Count 14,26,50 Pich
[mm]0.8 Mounting Method/
Wiring methodSoldering Current Rating
[A/Pin]0.5 Dielectric Withstanding
Voltage350V A.C.(r.m.s.) for a minute Operating Temparature
Min
[deg.C]-55 Operating Temparature
Max
[deg.C]85 Cable Jacket Diameter
[Φ]Φ1.0 Applicable Cable Diameter AWG#28
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.

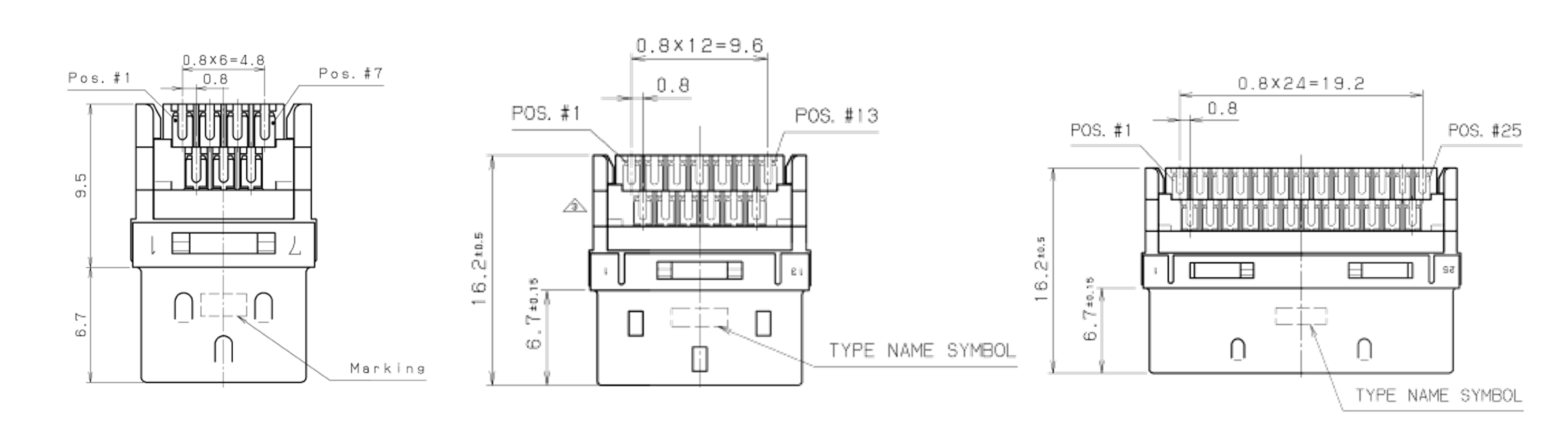

Please request the Engineering Drawing for the most current and accurate design information.
