1.50mm Pitch Board-In Connector

PD12 Series

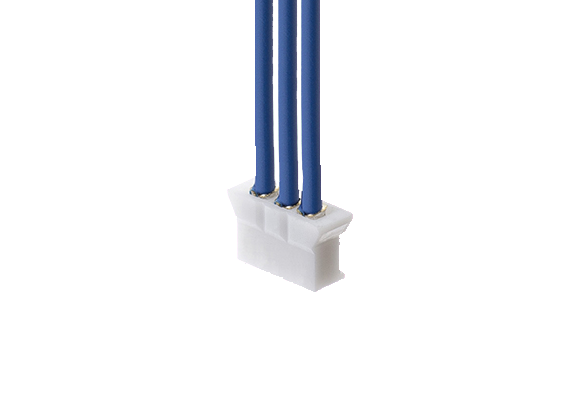

1.Compact board-mount connector with a height of 3.50mm and a depth of 2.3mm

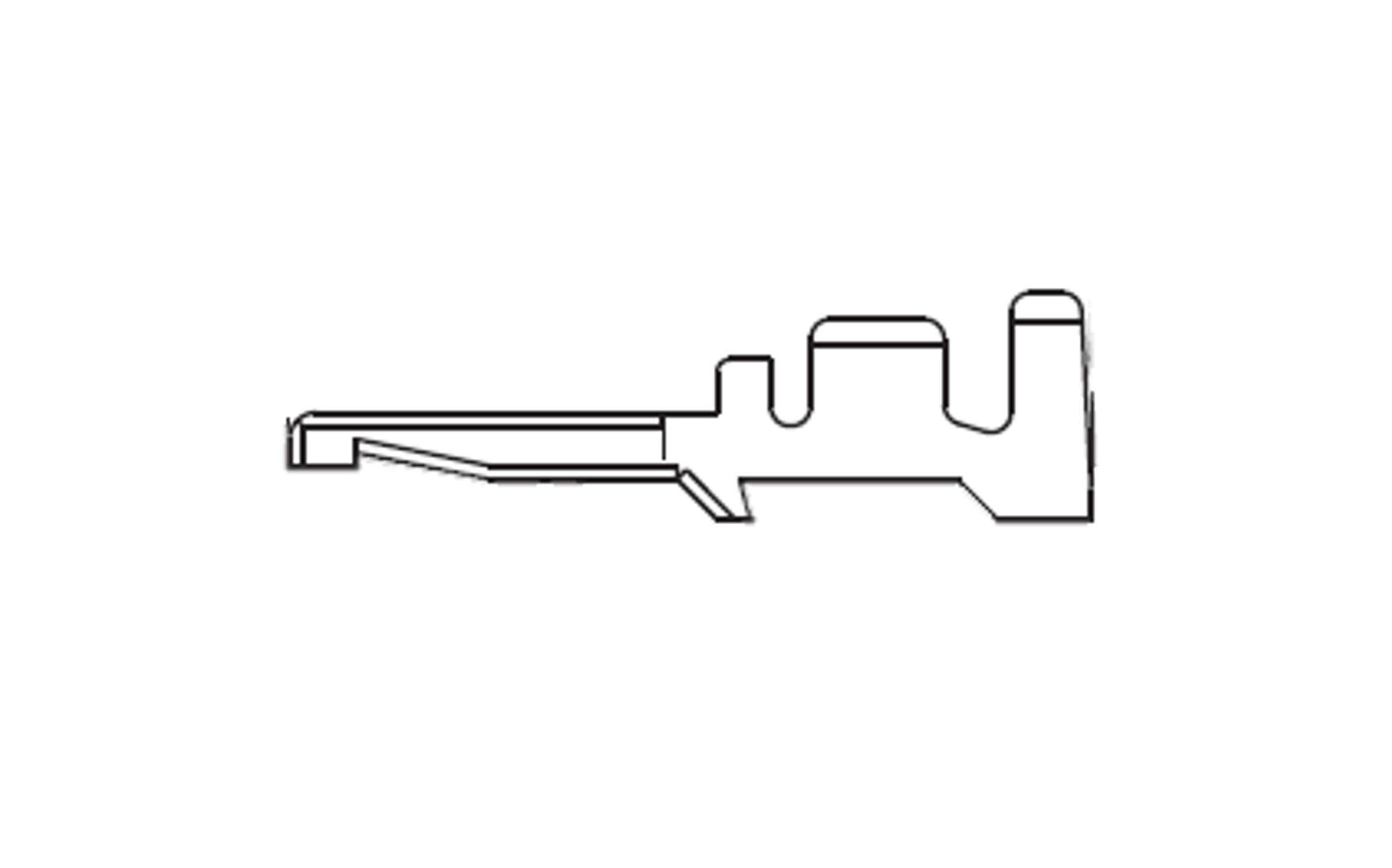

2.Terminal retention by Housing lance

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

Appearance

Pin Count

Pich
[mm]

Current Rating
[A/Pin]

Dielectric Withstanding
Voltage

Operating Temparature
Min
[deg.C]

Operating Temparature
Max
[deg.C]

Cable Jacket Diameter
[Φ]

Applicable Cable Diameter

Drawing

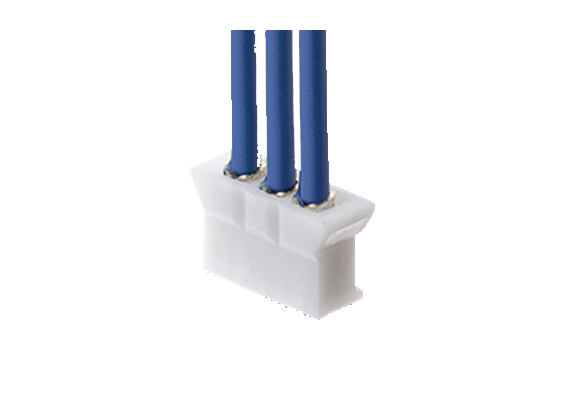

PD12A()M 2,3,4,5,6,7,8,9,10,11,12,13,14,15 1.5 1 800V A.C.(r.m.s) for a minute -40 85 DL0128_MCIPD12_BI_CL.pdf
507105-2M -40 85 Φ0.88 AWG#30~28 DL0128_MCIPD12_BI_CL.pdf
