PD12 Series
1.Compact board-mount connector with a height of 3.50mm and a depth of 2.3mm
2.Terminal retention by Housing lance
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

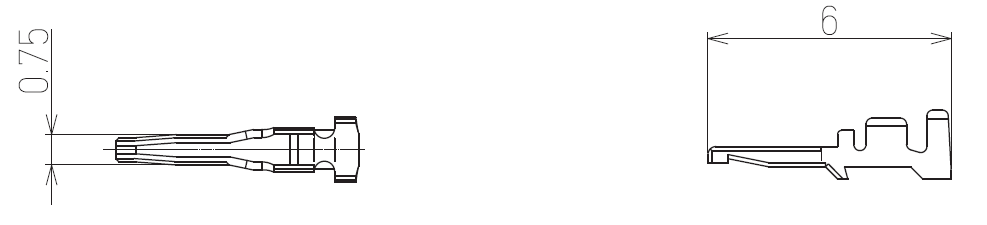

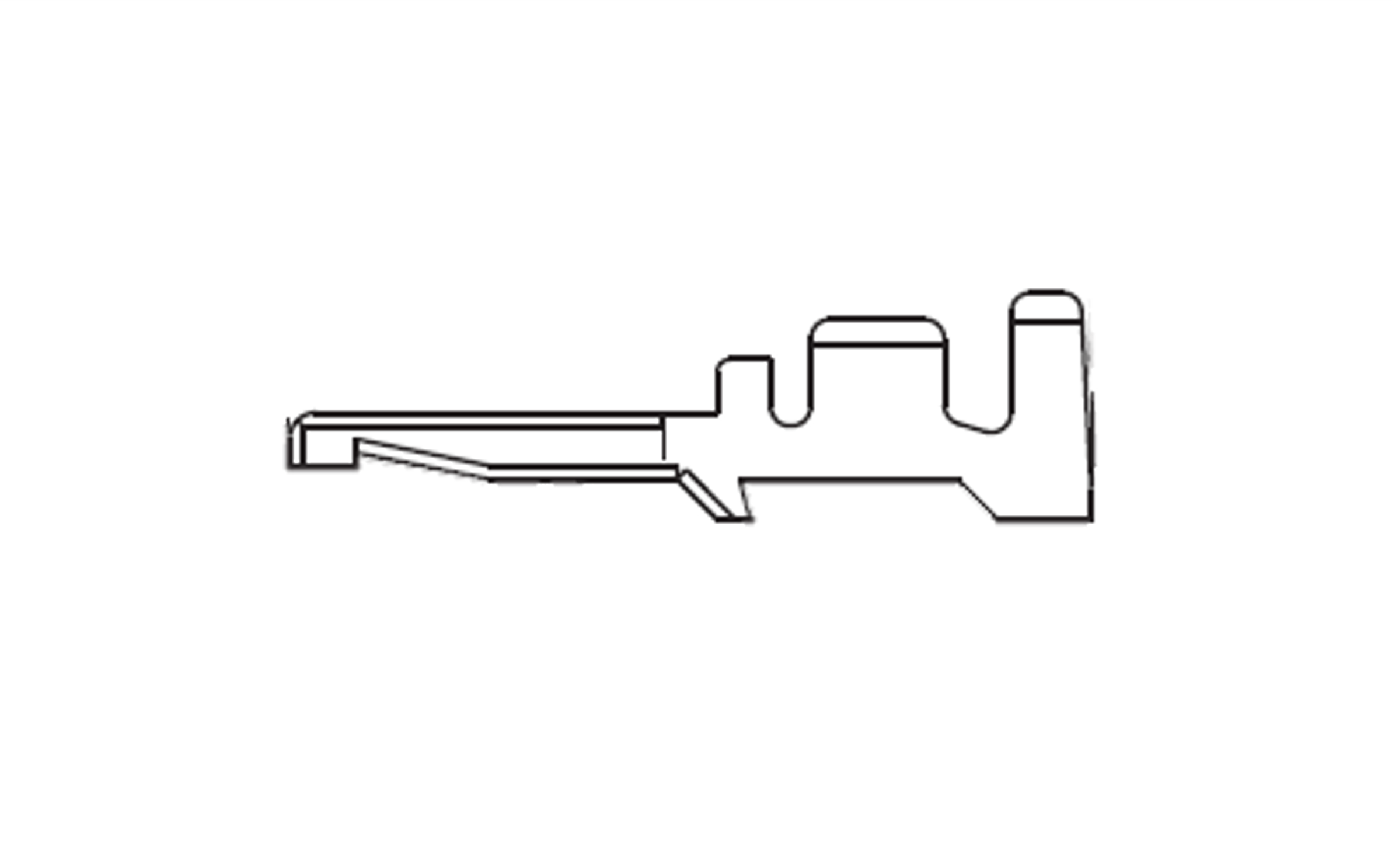

Parts No. 507105-2M Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]85 Cable Jacket Diameter
[Φ]Φ0.88 Applicable Cable Diameter AWG#30~28
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
