2.50mm Pitch Board-In Connector BL03

BL03 Series
1.Low height design right angle connector
2.Heat resist up to 125℃ (When using heat resist wire)
3.Terminal retention by Housing lance enable sure lock

【Model Description】
()・・・ Number of pins
*/#・・・ Product specification

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

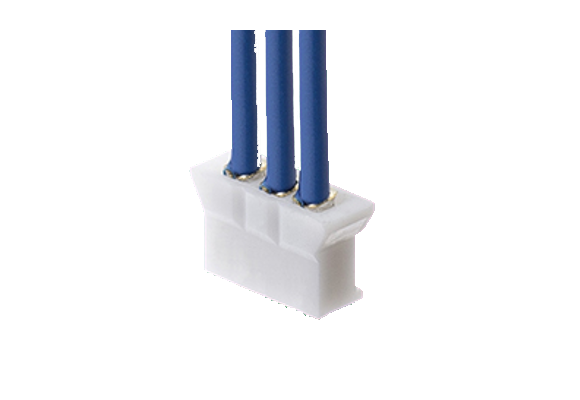

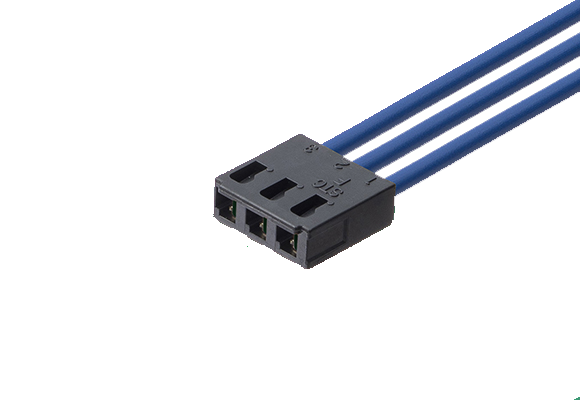

Appearance

Pin Count

Pich
[mm]

Current Rating
[A/Pin]

Dielectric Withstanding
Voltage

Operating Temparature
Min
[deg.C]

Operating Temparature
Max
[deg.C]

Cable Jacket Diameter
[Φ]

Applicable Cable Diameter

Drawing

BL03H5-()B0 2,3,4,5,6,7 2.5 4 500V A.C.(r.m.s) for a minute -40 125 DL0136_MCIBL03_BI_CL.pdf
BL03C5-010A -40 125 Φ1.70 AWG#22~20 DL0136_MCIBL03_BI_CL.pdf
