BL03H5-()B0

BL03 Series

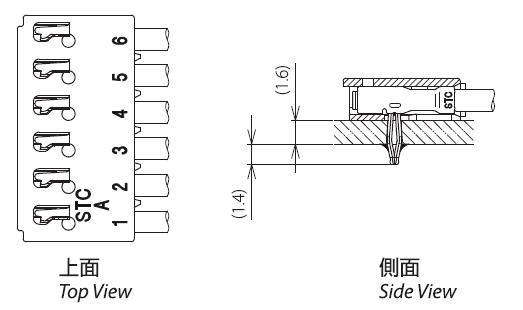

1.Low height design right angle connector
2.Heat resist up to 125℃ (When using heat resist wire)
3.Terminal retention by Housing lance enable sure lock

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

  • Parts No. BL03H5-()B0
    Pin Count 2,3,4,5,6,7
    Pich
    [mm]    		 2.5
    Current Rating
    [A/Pin]    		 4
    Dielectric Withstanding
    Voltage    		 500V A.C.(r.m.s) for a minute
    Operating Temparature
    Min
    [deg.C]    		 -40
    Operating Temparature
    Max
    [deg.C]    		 125

  • The product information in this data is for reference only.
    This is subject to change without notice.
    Contact our sales staff for further information before considering or ordering any of our products.
    Please request the Engineering Drawing for the most current and accurate design information.
