BL001 Series
1.Low height design right angle connector
2. Heat resist up to 105℃

【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification

Parts List

Click the arrow icon in the table below to switch from ascending to descending order.

scroll

Parts

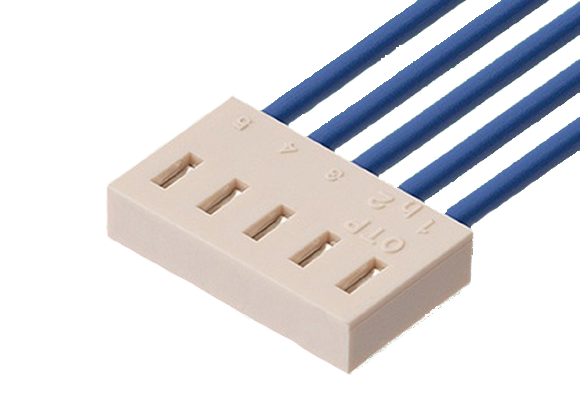

Appearance

Pin Count

Pich
[mm]

Current Rating
[A/Pin]

Dielectric Withstanding
Voltage

Operating Temparature
Min
[deg.C]

Operating Temparature
Max
[deg.C]

Cable Jacket Diameter
[Φ]

Applicable Cable Diameter

Drawing
BL-001-() 2,3,4,5,6,7,8,9,10,11,12,13,14,15 2.5 3 500V A.C.(r.m.s) for a minute -40 105 DL0134_MCIBL001_BI_CL.pdf
51069＊-2MA -40 105 ＊=1,3:Φ1.70 ＊=1:AWG#28~22
＊=3:AWG#22~20		 DL0134_MCIBL001_BI_CL.pdf
