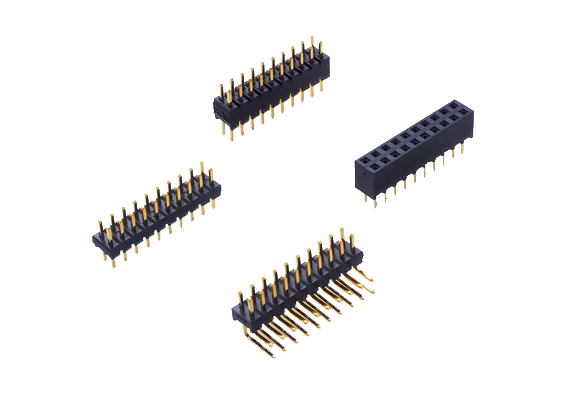

2.00mm Pitch Internal Connection Pin Header LPC Series
LPC Series
1. Pin removal is available
2. Pin length change is available
3. Plating/thickness change is available (gold/ tin copper)
*Please contact us for details.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
2.00mm Pitch Internal Connection Pin Header LPC Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|

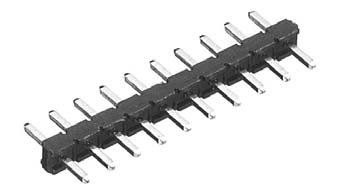

| LPC-()MG |  |
1～30 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0215_HTKLPC_JP.pdf |
| LPC-()ML** |  |
1～30 *Please contact us regarding availability of your desired number of pins. |

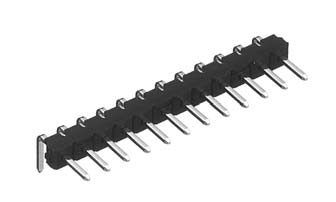

2 | Right-angle DIP |
1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0216_HTKLPC_EN.pdf |
| LPC-()M2L** |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2 | Right-angle DIP |
1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0217_HTKLPC_EN.pdf |
| LPC-()MA** |  |
1～16 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0218_HTKLPC_EN.pdf |
| LPC-()MB2G |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0219_HTKLPC_EN.pdf |
| LPC-()MC2G |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0220_HTKLPC_EN.pdf |
| LPC-()MD2G |  |
2～60 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0221_HTKLPC_EN.pdf |
| LPC-()M2G |  |
4～60 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0222_HTKLPC_EN.pdf |
| LPC-()MA2G |  |
4～24 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0223_HTKLPC_EN.pdf |
| LPC-()MH2G |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight SMT | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0224_HTKLPC_EN.pdf |
| LPC-()MY2CG+ |  |
6～14,20 *Please contact us regarding availability of your desired number of pins. |
2 | Straight SMT | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0225_HTKLPC_EN.pdf |
| LPC-B()MY2LG+ |  |
10,12,14,16,20,22,24,26,30,40,44,50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight SMT | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0226_HTKLPC_BI.pdf |
| LPC-()PM2LG |  |
20,26 *Please contact us regarding availability of your desired number of pins. |
2 | Right-angle DIP |
1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0227_HTKLPC_EN.pdf |
| LPC-()PM2G |  |
4,18,20,26 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0228_HTKLPC_BI.pdf |
| LPC-B()M2G |  |
10,12,14,16,20,22,24,26,30,40,44,50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0229_HTKLPC_BI.pdf |
| LPC-B()MY2G |  |
10,12,14,16,20,22,24,26,30,40,44,50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight SMT | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0230_HTKLPC_BI.pdf |
| LPC Contact |  |
-25 | 85 | ||||||
| LPC-()F02 |  |
6～20,24～30,34,36,44 *Please contact us regarding availability of your desired number of pins. |
Housing | -25 | 85 | DL0231_HTKLPC_EN.pdf | |||
| LPC-()PF02 |  |
4,10,18,20,26 *Please contact us regarding availability of your desired number of pins. |
Housing | -25 | 85 | DL0232_HTKLPC_BI.pdf | |||
| LPC-()FS01 |  |
2,3,4,6,10,12,20 *Please contact us regarding availability of your desired number of pins. |
Housing | -25 | 85 | DL0214_HTKLPC_EN.pdf |
