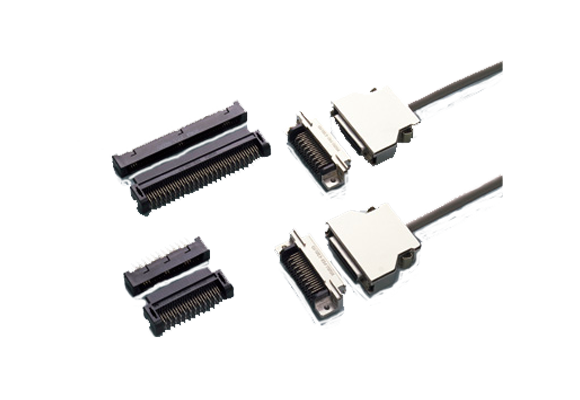

1.27mm Pitch Connector PCS Series
PCS Series
1. Cables are connected either by IDC or by soldering to meet the needs of our customers
2. Solid construction for interfaces
3. Lineup of accessories to prevent wrong insertion
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|

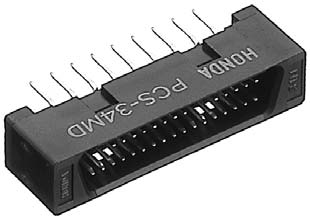

| PCS-()MD+ |  |
48,68,96 | 1.27 | Straight DIP | 1 | 500/750V A.C.(r.m.s.) for a minute | -55 | 105 | DL0238_HTKPCS_EN.pdf |

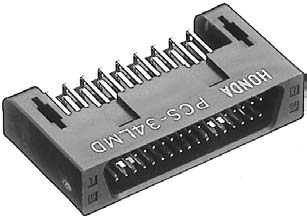

| PCS-()LMD+ |  |
34,48,68,96 | 1.27 | Right-angle DIP |
1 | 500/750V A.C.(r.m.s.) for a minute | -55 | 105 | DL0239_HTKPCS_EN.pdf |

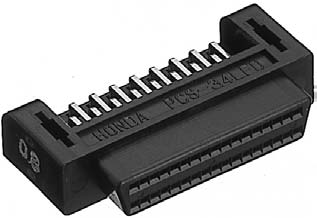

| PCS-()LFD+ |  |
34,68,96 | 1.27 | Right-angle DIP |
1 | 500/750V A.C.(r.m.s.) for a minute | -55 | 105 | DL0240_HTKPCS_EN.pdf |

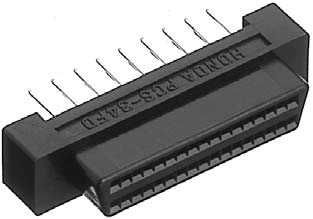

| PCS-()FD+ |  |
34,48,68,96 | 1.27 | Straight DIP | 1 | 500/750V A.C.(r.m.s.) for a minute | -55 | 105 | DL0241_HTKPCS_EN.pdf |

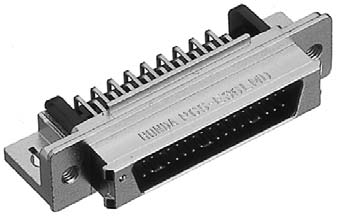

| PCS-E()LMD+ |  |
20,28,36,50,68,96 | 1.27 | Right-angle DIP |
1 | 500/750V A.C.(r.m.s.) for a minute | -55 | 105 | DL0242_HTKPCS_JP.pdf |
| PCS-E()MD+ |  |
20,28,36,50 | 1.27 | Straight DIP | 1 | 500/750V A.C.(r.m.s.) for a minute | -55 | 105 | DL0243_HTKPCS_EN.pdf |
