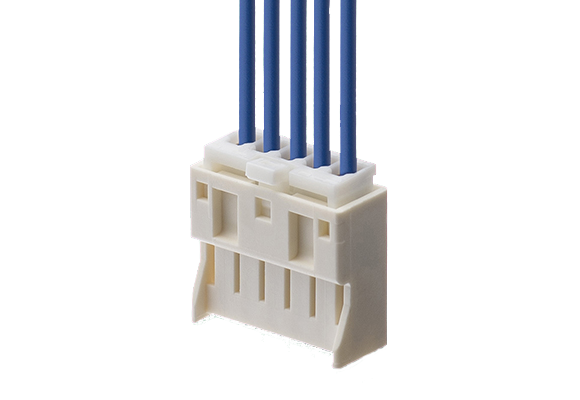

2.50mm Pitch DIP-PCB connector for potting PI05 Series
PI05 Series
1. Low height connector which can mount on PCB with Radial Taping
2. Inner Lock design, miniaturized connector
3. Bulk package has a "Boss" on the connector, Radial Taping package will not have "Boss" on the connector
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

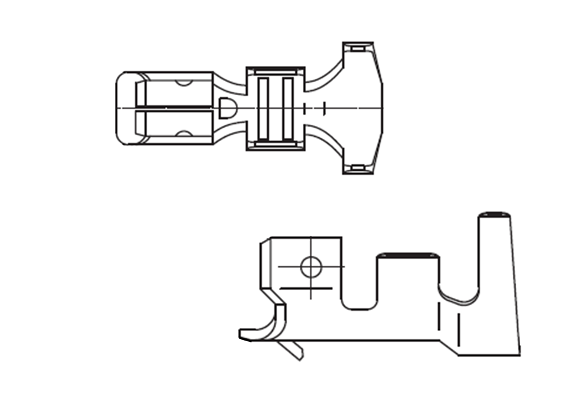

| PI05C6-0*0A |  |
-40 | 100 | *=1:Φ1.70 *=2:Φ1.20 |
*=1:AWG#26~22 *=2:AWG#30~28 |
DL0270_MCIPI05_BI_CL.pdf | |||||

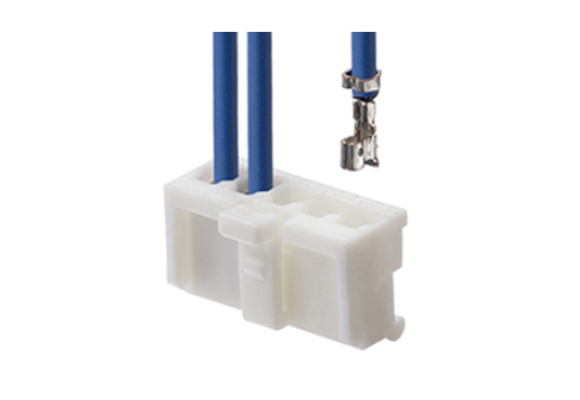

| PI05H6-()N0 |  |
2~13 | 2.5 | Housing | -40 | 100 | DL0270_MCIPI05_BI_CL.pdf | ||||

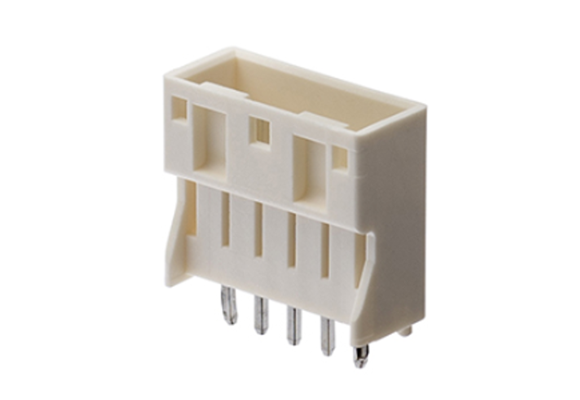

| PI05A1-()NA |  |
2~13 | 2.5 | Straight DIP | 3 | 1000V A.C.(r.m.s.) for a minute | -40 | 100 | DL0270_MCIPI05_BI_CL.pdf | ||

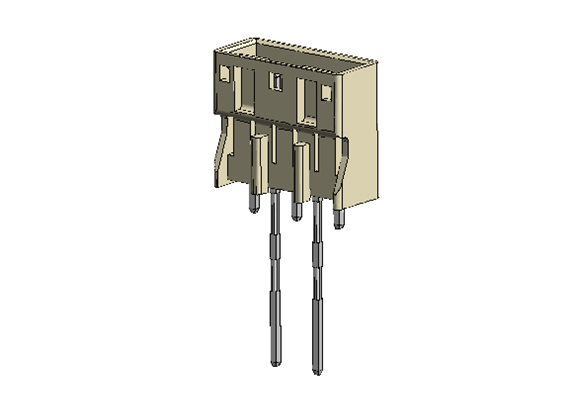

| PI05R1-()NA-02 |  |
2~8 | 2.5 | Straight DIP | 3 | 1000V A.C.(r.m.s.) for a minute | -40 | 100 | DL0270_MCIPI05_BI_CL.pdf |
