PI05 Series
1. Low height connector which can mount on PCB with Radial Taping
2. Inner Lock design, miniaturized connector
3. Bulk package has a "Boss" on the connector, Radial Taping package will not have "Boss" on the connector
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

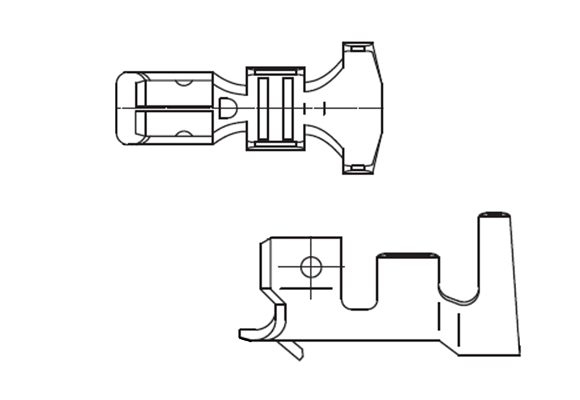

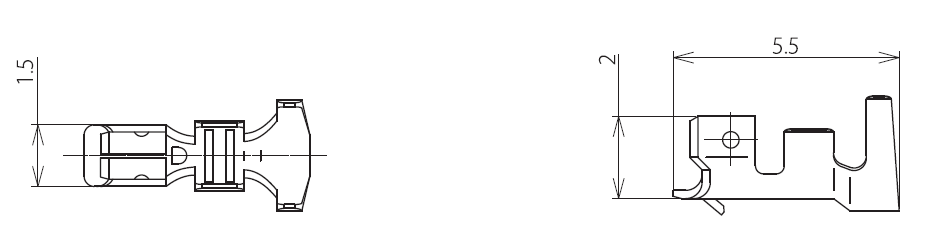

Parts No. PI05C6-0*0A Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]100 Cable Jacket Diameter
[Φ]*=1:Φ1.70
*=2:Φ1.20Applicable Cable Diameter *=1:AWG#26~22
*=2:AWG#30~28
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
