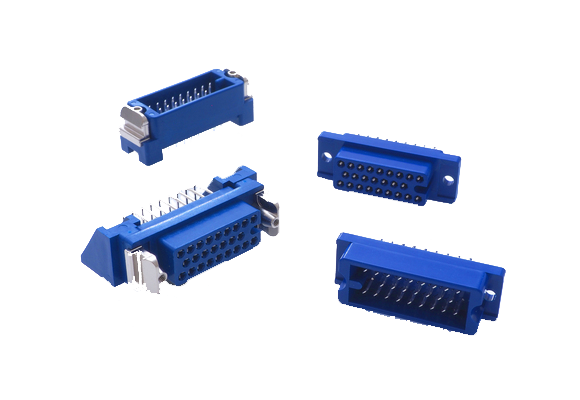

Multi-Pin Angular Connector MR Series
MR,MRP Series
１．Long- term reliability (Long Seller over 50 years)
２．In line-type cases are also available
３．Many sales results
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Drawing |
|---|---|---|---|---|---|---|---|---|---|---|
| MRP-()F01 |  |
8,16,20,25,34,50 | Housing | -40 | 55 | DL0179_HTKMR()_BI.pdf | ||||
| MRP-()M01 |  |
8,16,20,25,34,50 | Housing | -40 | 55 | DL0180_HTKMR()_BI.pdf | ||||

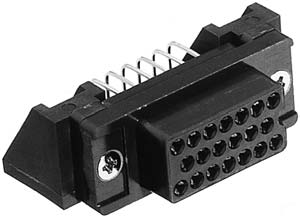

| MR-()FA* |  |
8,16,20,25,34,50 | 2.6 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 55 | DL0181_HTKMR()_BI.pdf | |
| MR-()FD2* |  |
8,16,20,25,34,50 | 2.6 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 55 | DL0182_HTKMR()_BI.pdf | |

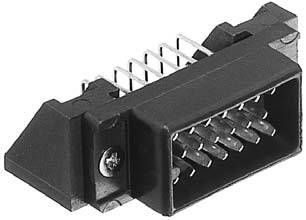

| MR-()MA* |  |
8,16,20,25,34,50 | 2.6 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 55 | DL0183_HTKMR()_BI.pdf | |
| MR-()MD2* |  |
8,16,20,25,34,50 | 2.6 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 55 | DL0184_HTKMR()_BI.pdf | |
| MR-()LW+ |  |
8,16,20,25,34,50,60 | Case | -40 | 55 | *=8:Φ6 *=16:Φ9 *=20:Φ11 *=25:Φ13.5 *=34:Φ15 *=50:Φ16 *=60:Φ18 |
DL0185_HTKMR()_BI.pdf | |||
| MR-()NSB+ |  |
20,50 | Case | -40 | 55 | *=20:Φ11×11 *=50:Φ16×16 |
DL0186_HTKMR()_BI.pdf | |||
| MR-()L+ |  |
8,16,20,25,34,50 | Case | -40 | 55 | *=8:Φ11 *=16:Φ9 *=20:Φ11 *=25:Φ13.5 *=34:Φ15 *=50:Φ16 |
DL0187_HTKMR()_BI.pdf | |||

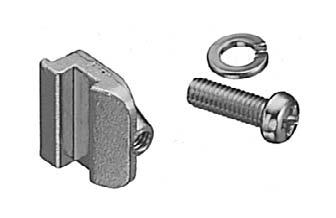

| MR-PK |  |
Misinsertion prevention Kye | -40 | 55 | DL0152_HTKMR()_BI.pdf | |||||
| MR-R4+ |  |
8,16,20,25,34,50 | Accessory | -40 | 55 | DL0155_HTKMR()_BI.pdf | ||||
| MR-R6+ |  |
60 | Accessory | -40 | 55 | DL0157_HTKMR()_BI.pdf | ||||
| MR() Contact |  |
-40 | 55 | DL0159_HTKMR()_BI.pdf |
