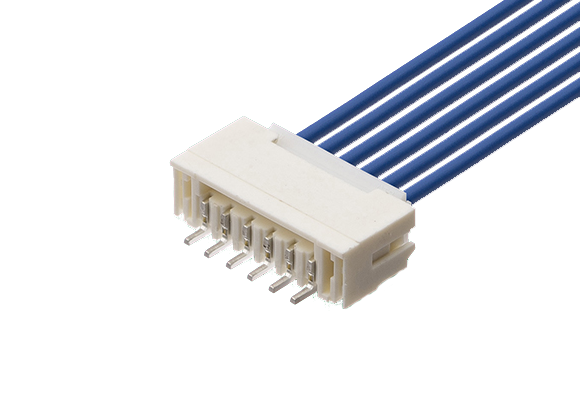

Fine-wire compatible 2.00 mm Pitch SMT-PCB connector PI29 Series
PI29 Series
1. Series with surface-mount-compatible on the PCB side(Based on the 2.00mm pitch PI22)
2. Available in 2 types: straight type or angle type
3. The package is Embossed Taping Reel
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

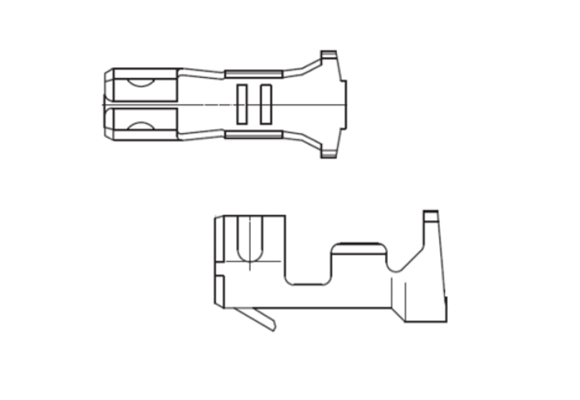

| PI29 Contact |  |
-25 | 85 | Φ1.50 | AWG#30~24 | DL0268_MCIPI29_BI_CL.pdf | |||||

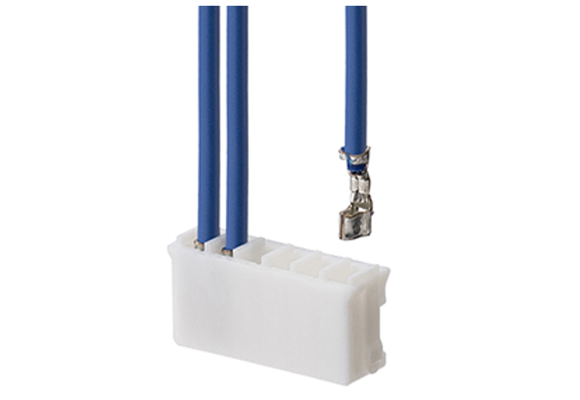

| PI29 Housing |  |
2~15 | 2 | Housing | -25 | 85 | DL0268_MCIPI29_BI_CL.pdf | ||||

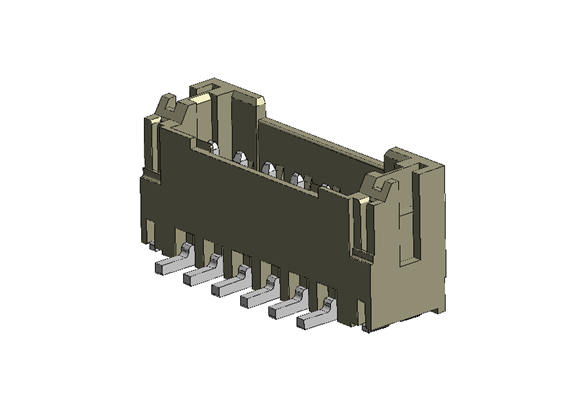

| PI29T1-()NB |  |
2~15 | 2 | Straight SMT | 2 | 800V A.C.(r.m.s.) for a minute | -25 | 85 | DL0268_MCIPI29_BI_CL.pdf | ||

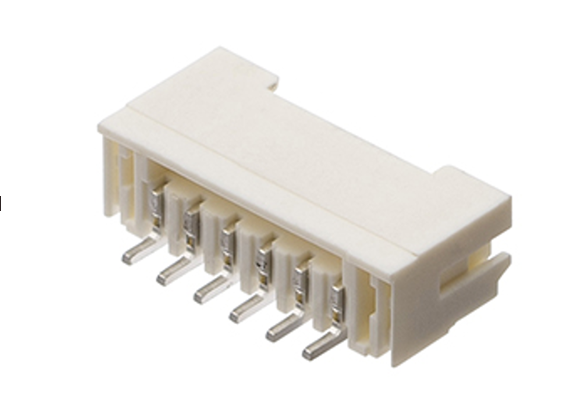

| PI29T3-()NB |  |
2~15 | 2 | Right-angle SMT |
2 | 800V A.C.(r.m.s.) for a minute | -25 | 85 | DL0268_MCIPI29_BI_CL.pdf |
