PI29 Series
1. Series with surface-mount-compatible on the PCB side(Based on the 2.00mm pitch PI22)
2. Available in 2 types: straight type or angle type
3. The package is Embossed Taping Reel
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

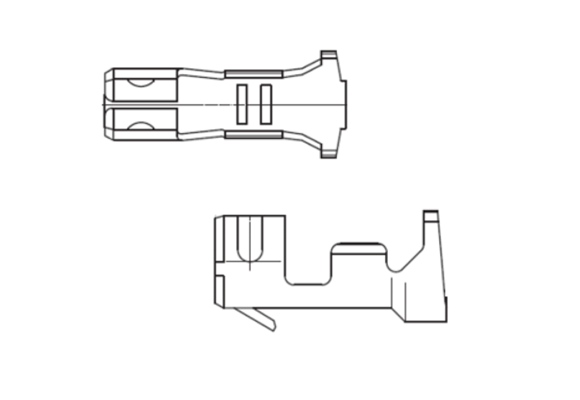

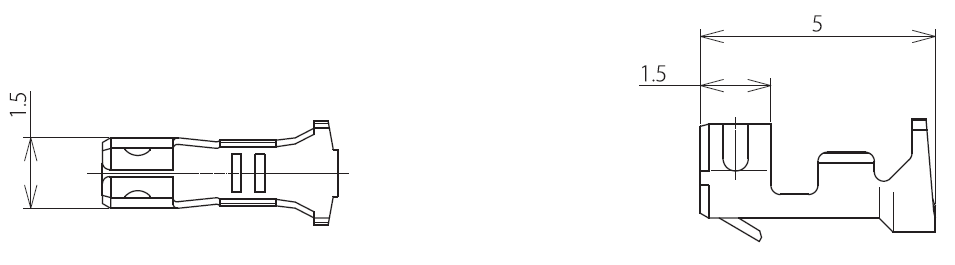

Parts No. PI29 Contact Operating Temparature
Min
[deg.C]-25 Operating Temparature
Max
[deg.C]85 Cable Jacket Diameter
[Φ]Φ1.50 Applicable Cable Diameter AWG#30~24
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Applicable Cable Diameter
705304-2M -25 85 Φ1.50 AWG#30~24 -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
