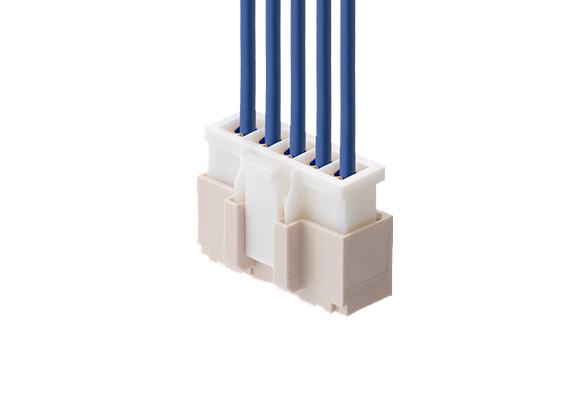

3.96mm Pitch DIP-PCB connector PB02 Series
PB02 Series
1. Achieved in preventing solder crack by changing ordinally square Pin to Elastic semicircular flat plate press Pin
2. To prevent incorrect mating, walls are adopted on all four sides of the block
3. 4-points dimple contact enable high reliability
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |

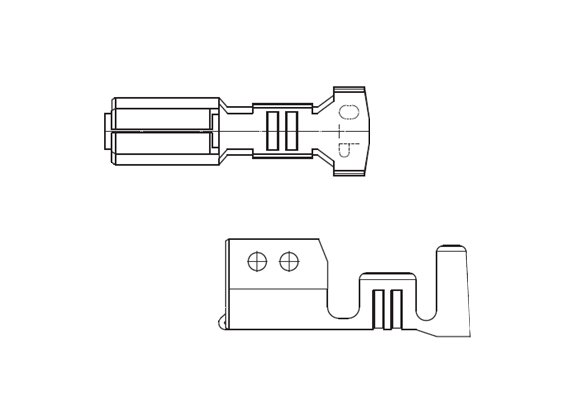

|---|---|---|---|---|---|---|---|---|---|---|---|
| 711612-2M |  |
-25 | 105 | Φ3.20 | AWG#22~18 | DL0275_MCIPB02_BI_CL.pdf | |||||

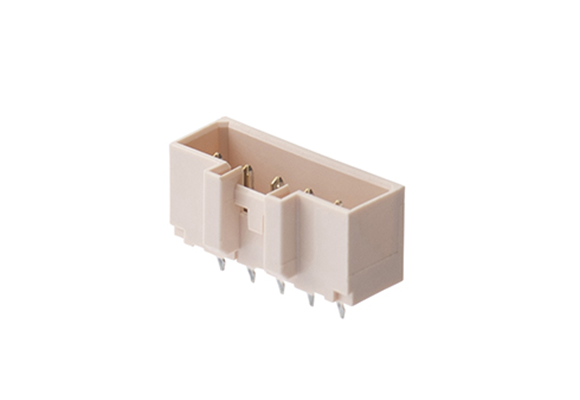

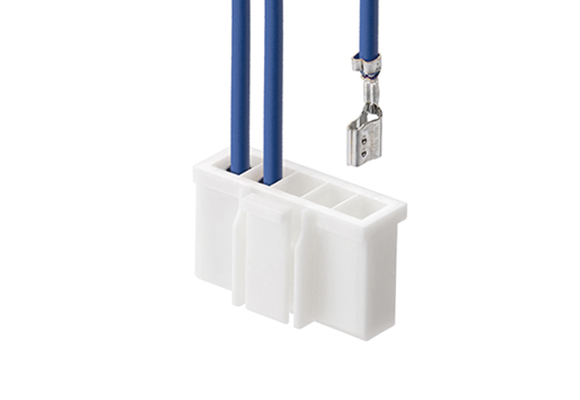

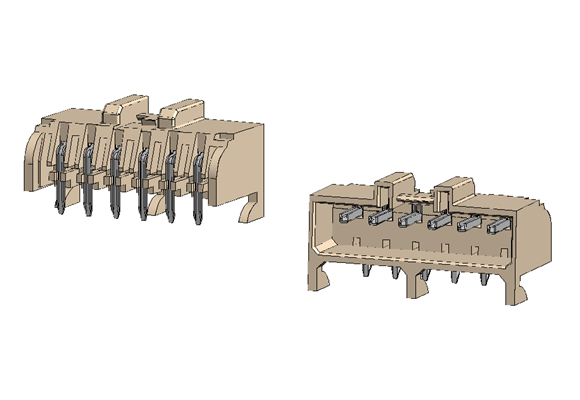

| PB02B()F |  |
2~10 | 3.96 | Housing | -25 | 105 | DL0275_MCIPB02_BI_CL.pdf | ||||
| PB02A()M |  |
2~10 | 3.96 | Straight DIP | 7 | 1500V A.C.(r.m.s.) for a minute | -25 | 105 | DL0275_MCIPB02_BI_CL.pdf | ||
| PB02B()M |  |
2~10 | 3.96 | Right-angle DIP |
7 | 1500V A.C.(r.m.s.) for a minute | -25 | 105 | DL0275_MCIPB02_BI_CL.pdf |
