1.50 mm Pitch DIP-PCB connector PI28 Series
PI28 Series

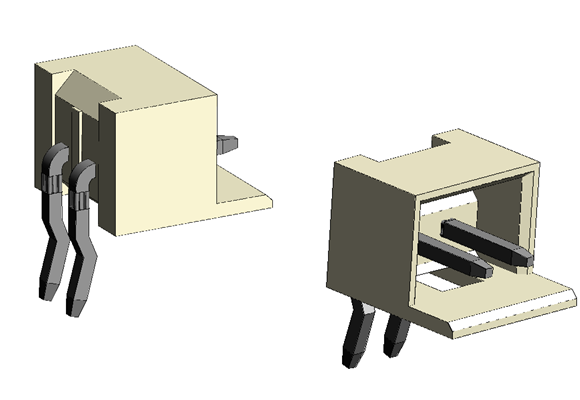

1. Miniaturized design, mounted height 6.2mm(straight type) and 3.5mm(right angle type)
2. The side wall designed inside of pin block in order to prevent from scratches
3. Pin block and housing have lock mechanism which also prevent from mis-insertion
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

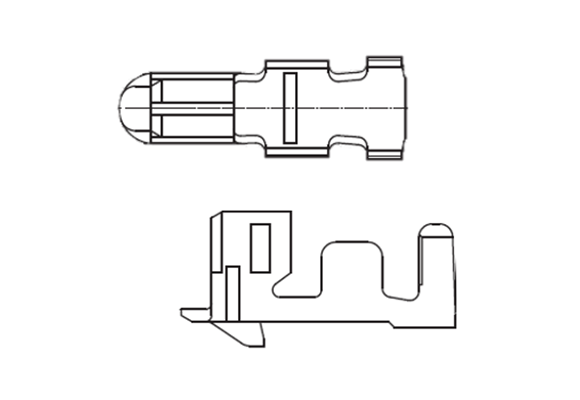

| 704152-2M |  |
-40 | 85 | Φ0.90 | AWG#30~28 | DL0264_MCIPI28_BI_CL.pdf | |||||

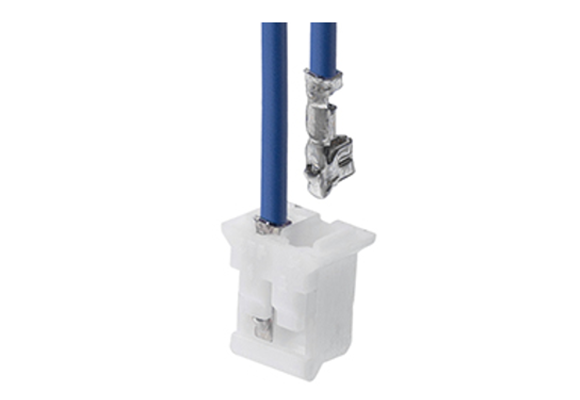

| PI28A()F |  |
2~15 | 1.5 | Housing | -40 | 85 | DL0264_MCIPI28_BI_CL.pdf | ||||

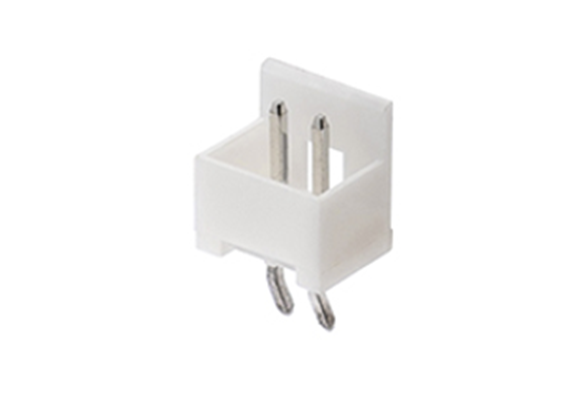

| PI28A()M |  |
2~15 | 1.5 | Straight DIP | 1 | 800V A.C.(r.m.s.) for a minute | -40 | 85 | DL0264_MCIPI28_BI_CL.pdf | ||
| PI28E()M |  |
2~15 | 1.5 | Right-angle DIP |
1 | 800V A.C.(r.m.s.) for a minute | -40 | 85 | DL0264_MCIPI28_BI_CL.pdf |
