PI28 Series
1. Miniaturized design, mounted height 6.2mm(straight type) and 3.5mm(right angle type)
2. The side wall designed inside of pin block in order to prevent from scratches
3. Pin block and housing have lock mechanism which also prevent from mis-insertion
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

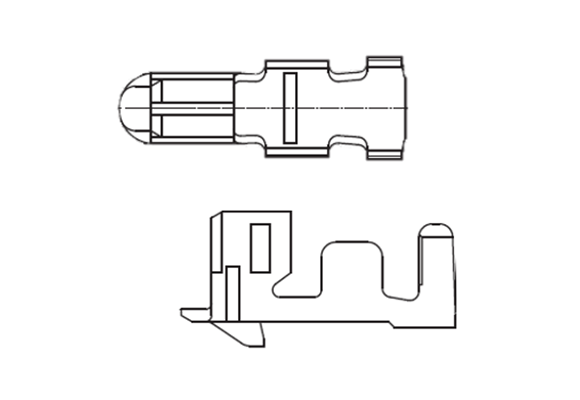

Parts No. 704152-2M Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]85 Cable Jacket Diameter
[Φ]Φ0.90 Applicable Cable Diameter AWG#30~28
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.

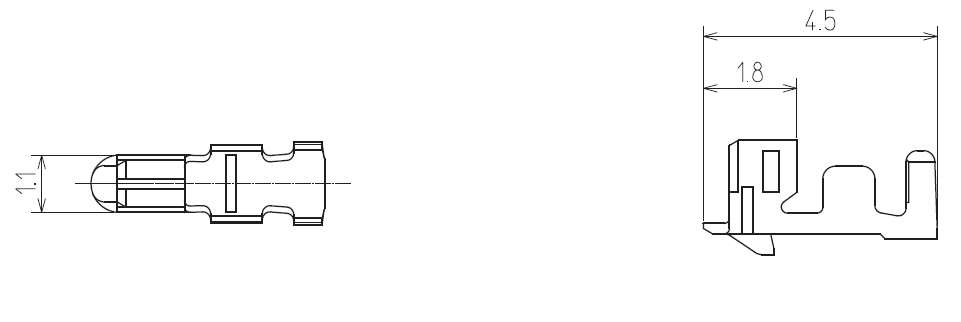

Please request the Engineering Drawing for the most current and accurate design information.
