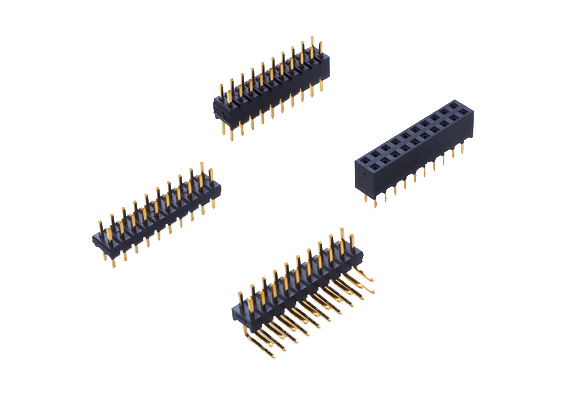

2.00mm Pitch Internal Connection Pin Header LPC Series
LPC Series
１．Pin removal is available
２．Pin length change is available
３．Plating/thickness change is available (gold/ tin copper)
*Please contact us for details.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|

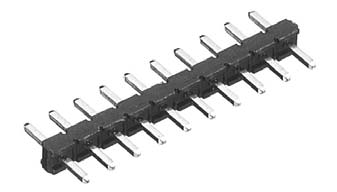

| LPC-()MG |  |
1～30 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0215_HTKLPC_JP.pdf |

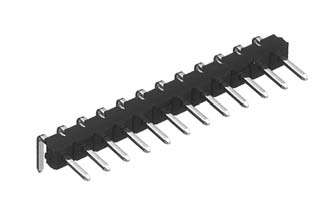

| LPC-()ML** |  |
1～30 *Please contact us regarding availability of your desired number of pins. |
2 | Right-angle DIP |
1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0216_HTKLPC_EN.pdf |
| LPC-()M2L** |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2 | Right-angle DIP |
1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0217_HTKLPC_EN.pdf |
| LPC-()MA** |  |
1～16 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0218_HTKLPC_EN.pdf |
| LPC-()MB2G |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0219_HTKLPC_EN.pdf |
| LPC-()MC2G |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0220_HTKLPC_EN.pdf |
| LPC-()MD2G |  |
2～60 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0221_HTKLPC_EN.pdf |
| LPC-()M2G |  |
4～60 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0222_HTKLPC_EN.pdf |
| LPC-()MA2G |  |
4～24 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0223_HTKLPC_EN.pdf |
| LPC-()MH2G |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight SMT | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0224_HTKLPC_EN.pdf |
| LPC-()MY2CG+ |  |
6～14,20 *Please contact us regarding availability of your desired number of pins. |
2 | Straight SMT | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0225_HTKLPC_EN.pdf |
| LPC-()FDSG+ |  |
2～25 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0233_HTKLPC_EN.pdf |
| LPC-()FDG+ |  |
4～50 *Please contact us regarding availability of your desired number of pins. |
2 | Straight DIP | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0234_HTKLPC_JP.pdf |
| LPC-()FYG+ |  |
6～22 *Please contact us regarding availability of your desired number of pins. |
2 | Straight SMT | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0235_HTKLPC_EN.pdf |
| LPC-SPG |  |
2 | 2 | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0236_HTKLPC_EN.pdf | |
| LPC-6SPG |  |
6 | 2 | 1 | 500V A.C.(r.m.s.) for a minute | -25 | 85 | DL0237_HTKLPC_EN.pdf |
