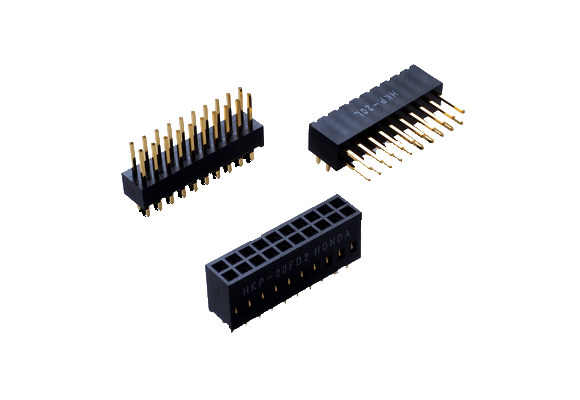

2.54mm Pitch Internal Connection Pin Header HKP Series
HKP Series
1. Pin removal is available
2. Pin length change is available
3. Optional keys to prevent incorrect insertion
*Please contact us for details.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
2.54mm Pitch Internal Connection Pin Header HKP Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|
| HKP-()M1 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0199_HTKHKP_EN.pdf |
| HKP-()M2 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0200_HTKHKP_EN.pdf |
| HKP-()M29 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0201_HTKHKP_EN.pdf |
| HKP-()M2L |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0202_HTKHKP_EN.pdf |
| HKP-()M2WT |  |
4～36 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0203_HTKHKP_JP.pdf |
| HKP-()M5LS |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0204_HTKHKP_EN.pdf |
| HKP-()M5S |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0205_HTKHKP_JP.pdf |
| HKP-()M6 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0206_HTKHKP_EN.pdf |
| HKP-()M6L |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0207_HTKHKP_EN.pdf |
| HKP-()M8 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0208_HTKHKP_EN.pdf |
| HKP-()M5WS |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0209_HTKHKP_EN.pdf |
| HKP-()FDS2 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0210_HTKHKP_EN.pdf |
| HKP-()FD2 |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0211_HTKHKP_EN.pdf |
| HKP Contact |  |
-40 | 105 | ||||||
| HKP-()FS01 |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
Housing | -40 | 105 | DL0212_HTKHKP_EN.pdf | |||
| HKP-()F02 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
Housing | -40 | 105 | DL0213_HTKHKP_EN.pdf |
