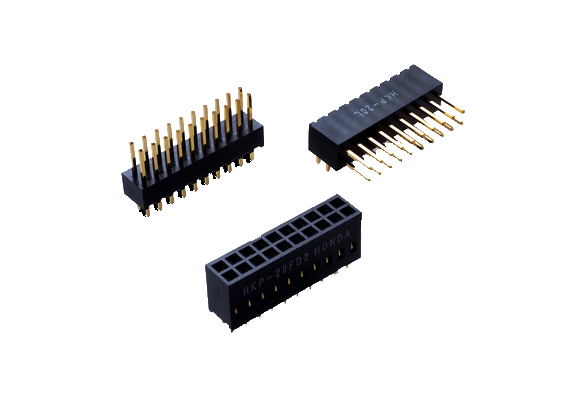

2.54mm Pitch Internal Connection Pin Header HKP Series
HKP Series
１．Pin removal is available
２．Pin length change is available
３．Optional keys to prevent incorrect insertion
*Please contact us for details.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|
| HKP-()M1 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0199_HTKHKP_EN.pdf |
| HKP-()M2 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0200_HTKHKP_EN.pdf |
| HKP-()M29 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0201_HTKHKP_EN.pdf |
| HKP-()M2L |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0202_HTKHKP_EN.pdf |
| HKP-()M2WT |  |
4～36 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0203_HTKHKP_JP.pdf |

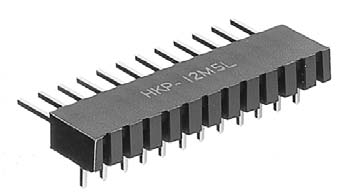

| HKP-()M5LS |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0204_HTKHKP_EN.pdf |
| HKP-()M5S |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0205_HTKHKP_JP.pdf |
| HKP-()M6 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0206_HTKHKP_EN.pdf |
| HKP-()M6L |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0207_HTKHKP_EN.pdf |
| HKP-()M8 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0208_HTKHKP_EN.pdf |
| HKP-()M5WS |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0209_HTKHKP_EN.pdf |
| HKP-()FDS2 |  |
4～70 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0210_HTKHKP_EN.pdf |
| HKP-()FD2 |  |
2～50 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 105 | DL0211_HTKHKP_EN.pdf |
| HKP-44F201 | accessory | -40 | 105 | DL0233_HTKHKP_EN.pdf |
