Outer Lock Type 2.50mm Pitch DIP-PCB connector PI06 Series
PI06 Series
1. Connectors suitable for radial tape mounting

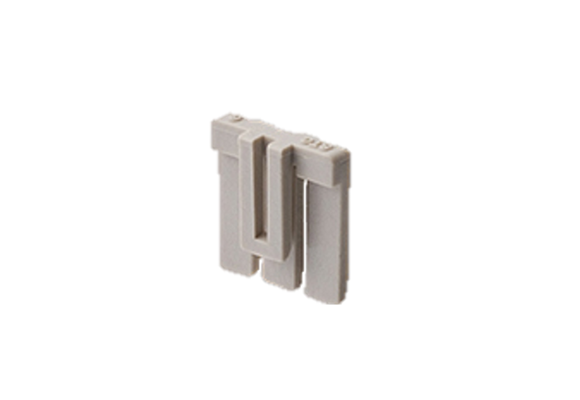

2. Back retainer are able to install in order to strengthen Terminal retention force
3. Bulk package has a "Boss" on the connector, Radial Taping package will not have "Boss" on the connector
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

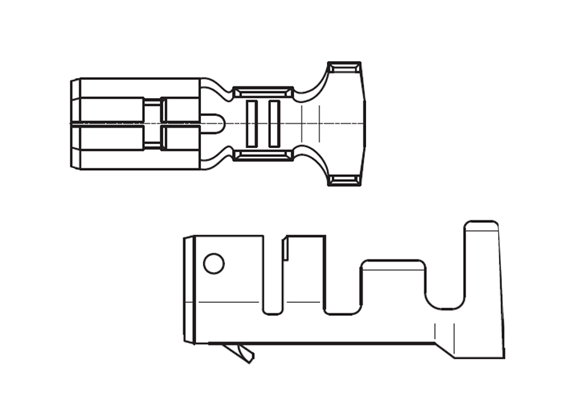

| PI06C6-0*0A |  |
-40 | 105 | Φ1.90 | *=1:AWG#28~22 *=2:AWG#20 |
DL0271_MCIPI06_BI_CL.pdf | |||||

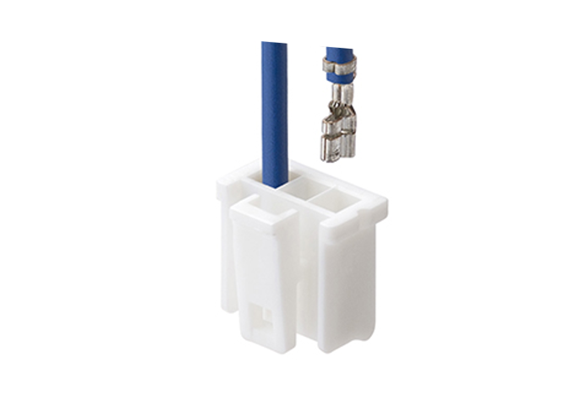

| PI06H6-()N0 |  |
2~15 | 2.5 | Housing | -40 | 105 | DL0271_MCIPI06_BI_CL.pdf | ||||

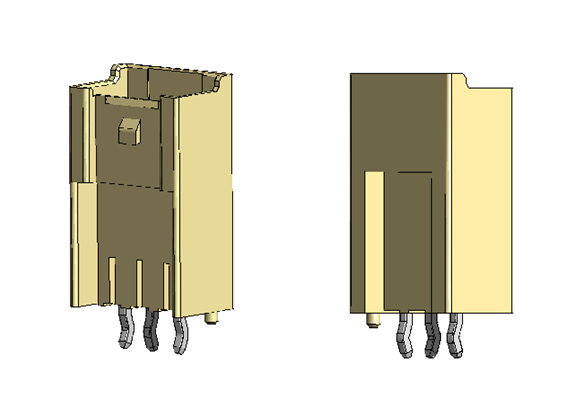

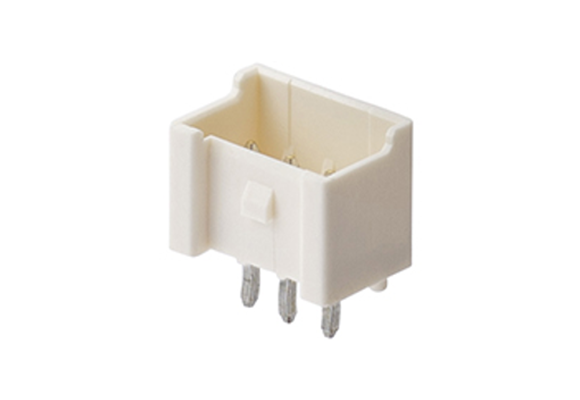

| PI06A1-()NA-01 |  |
2~15 | 2.5 | Straight DIP | 5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0271_MCIPI06_BI_CL.pdf | ||

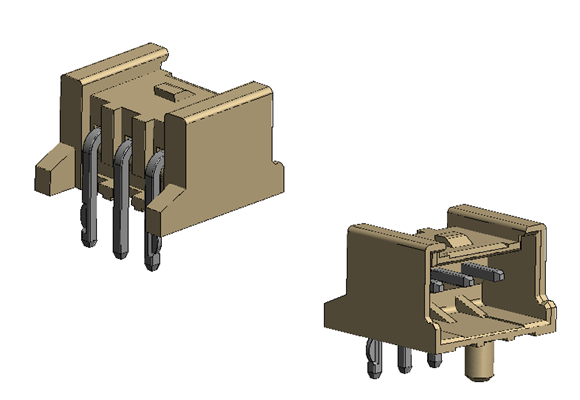

| PI06A3-()NA-01 |  |
2~15 | 2.5 | Right-angle DIP |
5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0271_MCIPI06_BI_CL.pdf | ||
| PI06H8-()N0 |  |
2~15 | 2.5 | -40 | 105 | DL0271_MCIPI06_BI_CL.pdf | |||||

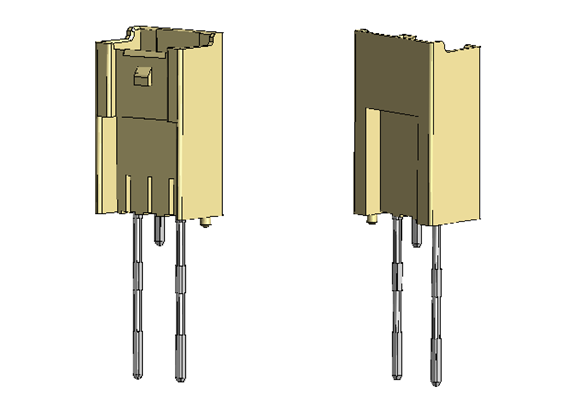

| PI06R1-()NA |  |
2~8 | 2.5 | Radial Taping | 5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0271_MCIPI06_BI_CL.pdf | ||
| PI06A1-()NA-04 |  |
2~15 | 2.5 | 5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0271_MCIPI06_BI_CL.pdf | |||
| PI06R1-()NA-02 |  |
2~8 | 2.5 | Radial Taping | 5 | 500V A.C.(r.m.s.) for a minute | -40 | 105 | DL0271_MCIPI06_BI_CL.pdf |
