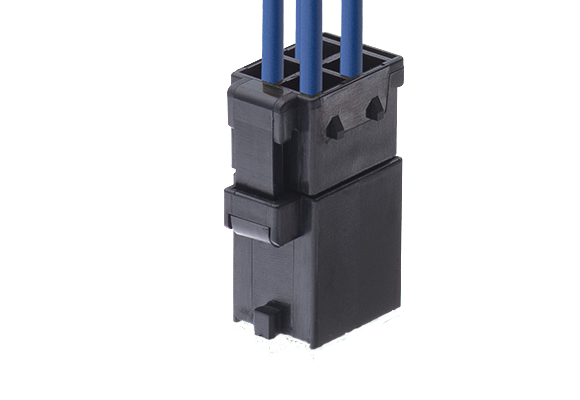

6.00mm Pitch DIP-PCB connector CL09E Series
CL09E Series
1. Designed for potting use, 6.00mm pitch for PCB connector
2. The terminals insert easily into the Housing with a good click feeling
3. Design for refer to the Electrical Appliance and Material Safety Act
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

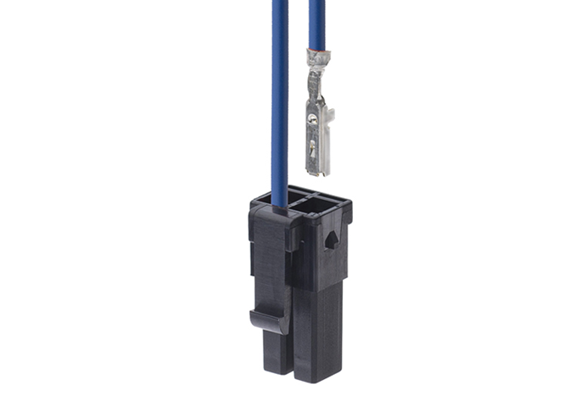

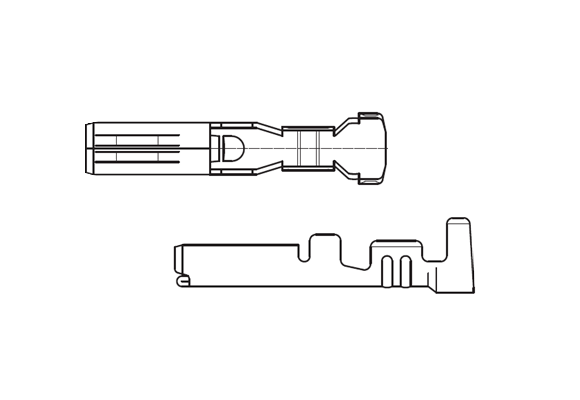

| 21501*-2M |  |
-40 | 105 | *=2:Φ2.60 *=4:Φ3.30 |
*=2:AWG#24~20 *=4:AWG#20~16 |
DL0276_MCICL09E_BI_CL.pdf | |||||
| CL09E()F |  |
2,4 | 6.00×5.50 | Housing | 8.00(in case of 4 Pin) | 1700V A.C.(r.m.s.) for a minute | -40 | 105 | DL0276_MCICL09E_BI_CL.pdf | ||

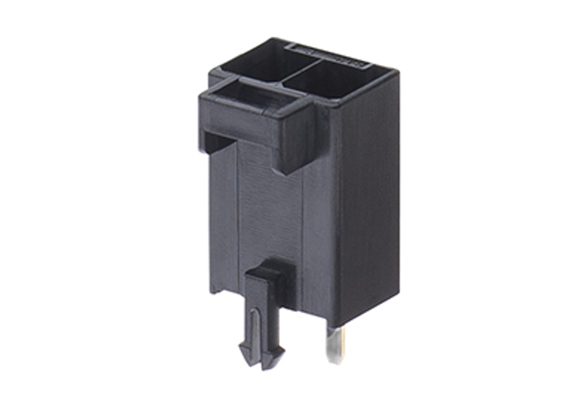

| CL09E()M |  |
2,4 | 6.00×5.50 | Straight DIP | 8.00(in case of 4 Pin) | 1700V A.C.(r.m.s.) for a minute | -40 | 105 | DL0276_MCICL09E_BI_CL.pdf |
