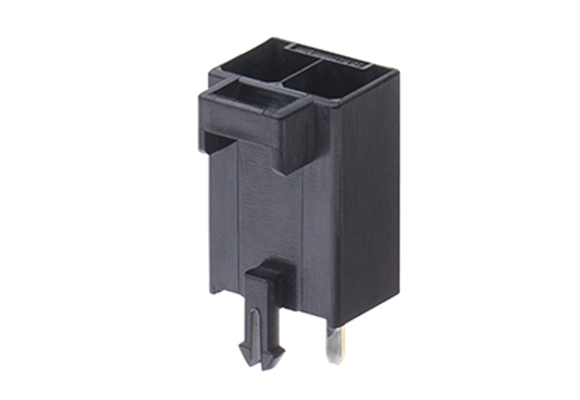

CL09E Series
1. Designed for potting use, 6.00mm pitch for PCB connector
2. The terminals insert easily into the Housing with a good click feeling
3. Design for refer to the Electrical Appliance and Material Safety Act
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. CL09E()M Pin Count 2,4 Pich
[mm]6.00×5.50 Mounting Method/
Wiring methodStraight DIP Current Rating
[A/Pin]8.00(in case of 4 Pin) Dielectric Withstanding
Voltage1700V A.C.(r.m.s.) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.

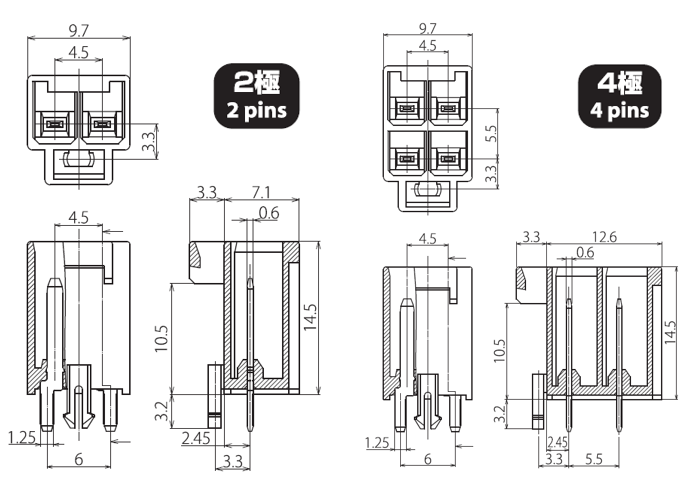

Please request the Engineering Drawing for the most current and accurate design information.
