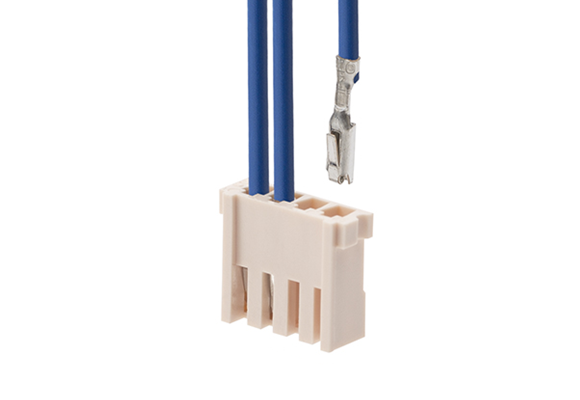

Friction Lock Type 2.50mm Pitch DIP-PCB connector PI-051 Series
PI-051 Series
1. Uses PBT in molded part and endure under 125℃
2. Design considered to endure under scratches and dust prevention
3. The terminal is used phosphor bronze with excellent creep resistance and has stable contact on it's upper and lower surface
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

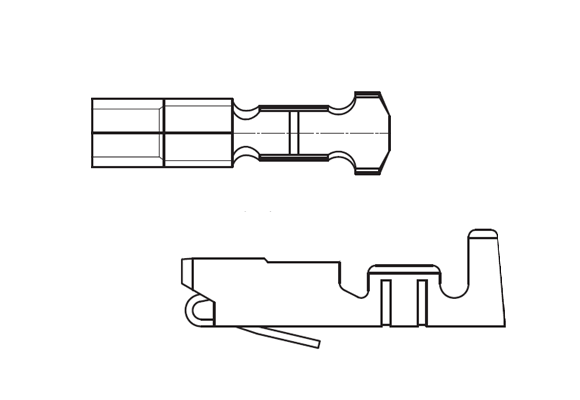

| 706*12-2MK |  |
-35 | 105 | *=3:Φ1.50 *=4:Φ1.70 |
*=3:AWG#30~24 *=4:AWG#24~22 |
DL0274_MCIPI-051_BI_CL.pdf | |||||
| PI-051-()F |  |
2~4 | 2.5 | Housing | -35 | 105 | DL0274_MCIPI-051_BI_CL.pdf | ||||
| PI-051-()M |  |
2~4 | 2.5 | Straight DIP | 3 | 1000V A.C.(r.m.s.) for a minute | -35 | 105 | DL0274_MCIPI-051_BI_CL.pdf |
