PI-051 Series
1. Uses PBT in molded part and endure under 125℃
2. Design considered to endure under scratches and dust prevention
3. The terminal is used phosphor bronze with excellent creep resistance and has stable contact on it's upper and lower surface
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

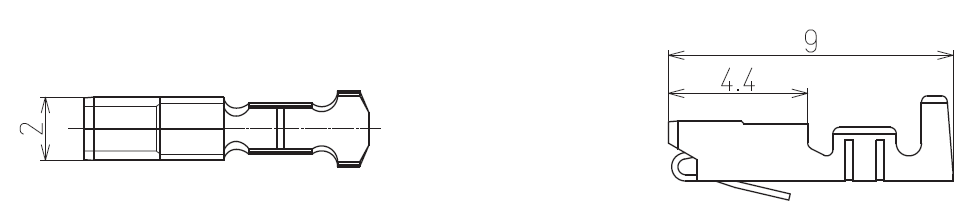

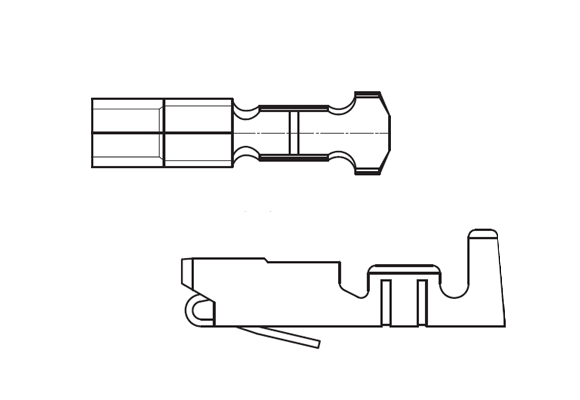

Parts No. 706*12-2MK Operating Temparature
Min
[deg.C]-35 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]*=3:Φ1.50
*=4:Φ1.70Applicable Cable Diameter *=3:AWG#30~24
*=4:AWG#24~22
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
