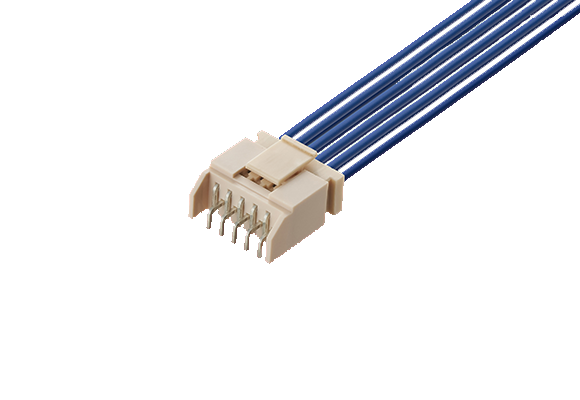

Staggered Array 2.50mm Pitch DIP-PCB connector PI35 Series
PI35 Series
1. Redced implementation area through staggered Array
2. Terminal design inside of the Housing are offseted with step which enables smooth mating when insertioning large-Pin-count connector
3. The box shape of Terminal design are strong against scratch and prevent from deformation during harnrss assembling
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

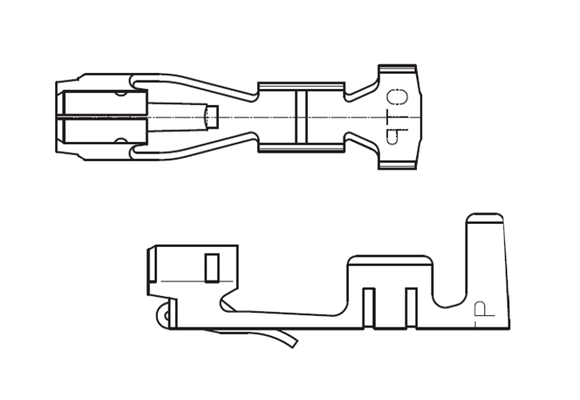

| 706*22-2MK |  |
-35 | 105 | *=3:Φ1.50 *=4:Φ1.70 |
*=3:AWG#30~24 *=4:AWG#24~22 |
DL0273_MCIPI35_BI_CL.pdf | |||||

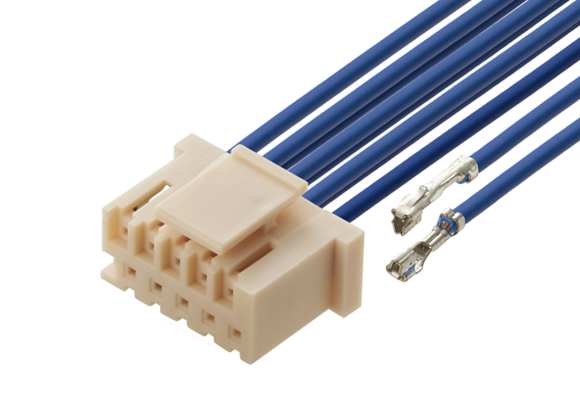

| PI35B()F |  |
10,12,14,16,18,20,22 | 2.5 | Housing | -35 | 105 | DL0273_MCIPI35_BI_CL.pdf | ||||

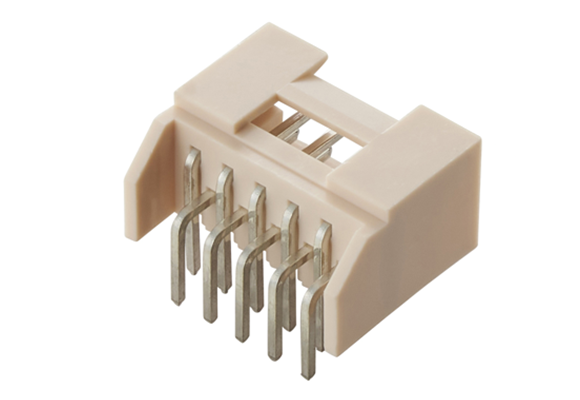

| PI35B()M |  |
10,12,14,16,18,20,22 | 2.5 | Straight DIP | 3 | 800V A.C.(r.m.s.) for a minute | -35 | 105 | DL0273_MCIPI35_BI_CL.pdf |
