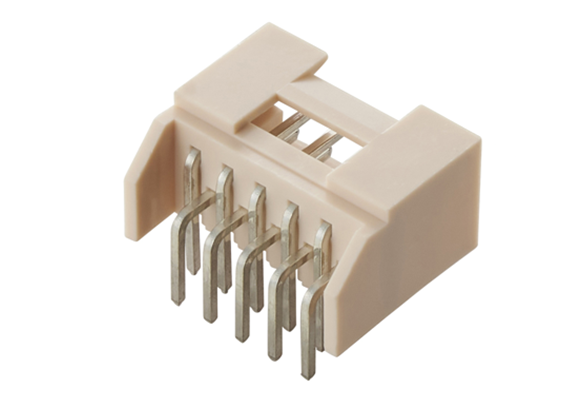

PI35 Series
1. Redced implementation area through staggered Array
2. Terminal design inside of the Housing are offseted with step which enables smooth mating when insertioning large-Pin-count connector
3. The box shape of Terminal design are strong against scratch and prevent from deformation during harnrss assembling
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. PI35B()M Pin Count 10,12,14,16,18,20,22 Pich
[mm]2.5 Mounting Method/
Wiring methodStraight DIP Current Rating
[A/Pin]3 Dielectric Withstanding
Voltage800V A.C.(r.m.s.) for a minute Operating Temparature
Min
[deg.C]-35 Operating Temparature
Max
[deg.C]105
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
