2.00 mm Pitch DIP-PCB connector PI22 Series
PI22 Series
1. Male and Female mating are friction lock, and also side latch prevents mis-insertion
2. The Housing has a indication of minimum and maximum pin numbers
3. The Terminal has a centralized 2 points contact system which enables stable contactability
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

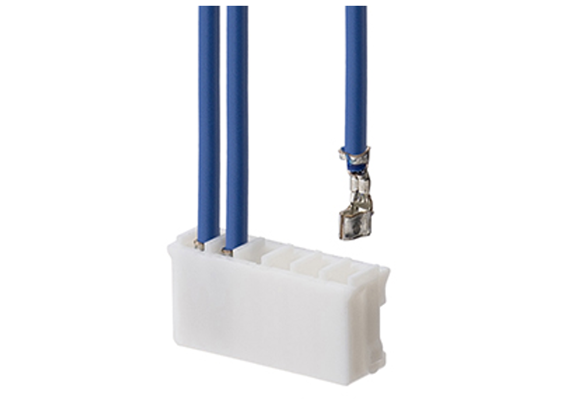

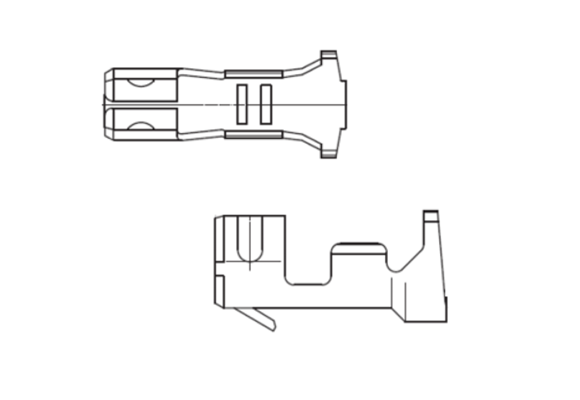

| PI22 Contact |  |
-25 | 85 | Φ1.50 | AWG#30~24 | DL0266_MCIPI22_BI_CL.pdf | |||||
| PI22 Housing |  |
2~15 | 2 | Housing | -25 | 85 | DL0266_MCIPI22_BI_CL.pdf | ||||

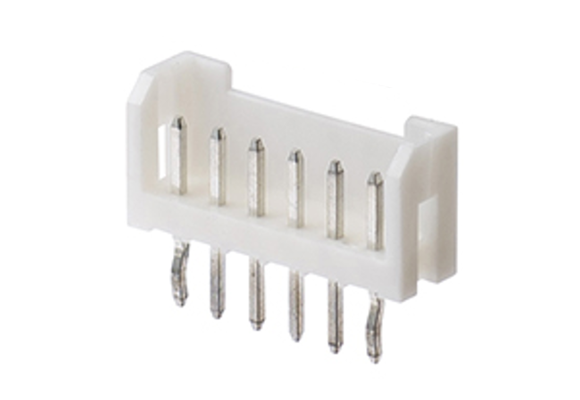

| PI22A()M |  |
2~15 | 2 | Straight DIP | 2 | 800V A.C.(r.m.s.) for a minute | -25 | 85 | DL0266_MCIPI22_BI_CL.pdf | ||

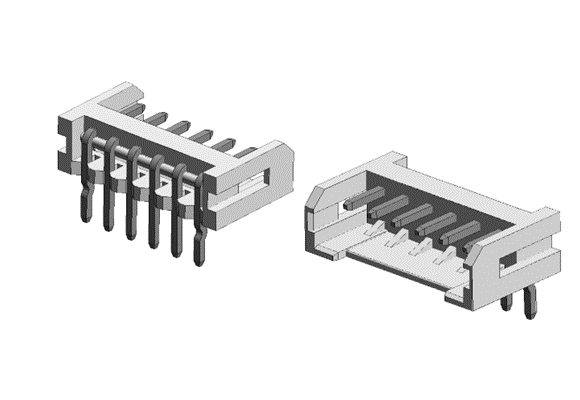

| PI22B()M |  |
2~15 | 2 | Right-angle DIP |
2 | 800V A.C.(r.m.s.) for a minute | -25 | 85 | DL0266_MCIPI22_BI_CL.pdf |
