PI22 Series
1. Male and Female mating are friction lock, and also side latch prevents mis-insertion
2. The Housing has a indication of minimum and maximum pin numbers
3. The Terminal has a centralized 2 points contact system which enables stable contactability
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

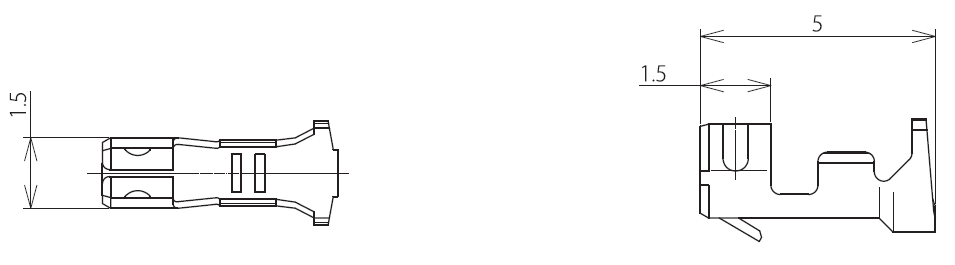

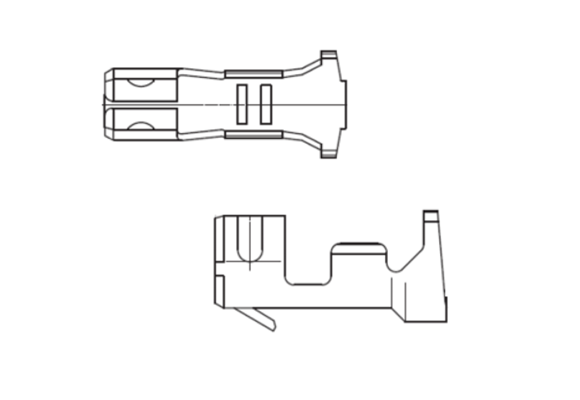

Parts No. PI22 Contact Operating Temparature
Min
[deg.C]-25 Operating Temparature
Max
[deg.C]85 Cable Jacket Diameter
[Φ]Φ1.50 Applicable Cable Diameter AWG#30~24
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Applicable Cable Diameter
705304-2M -25 85 Φ1.50 AWG#30~24 -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
