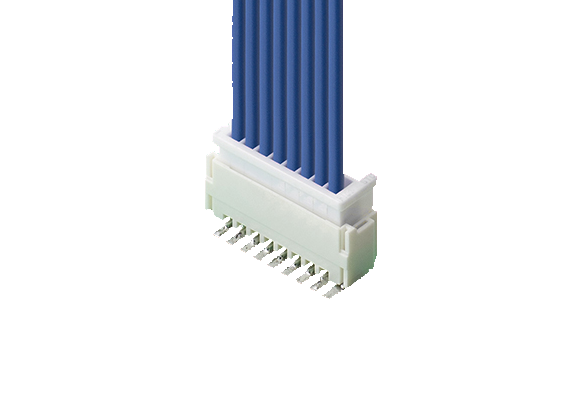

2.00 mm Pitch SMT-PCB connector PI07 Series
PI07 Series

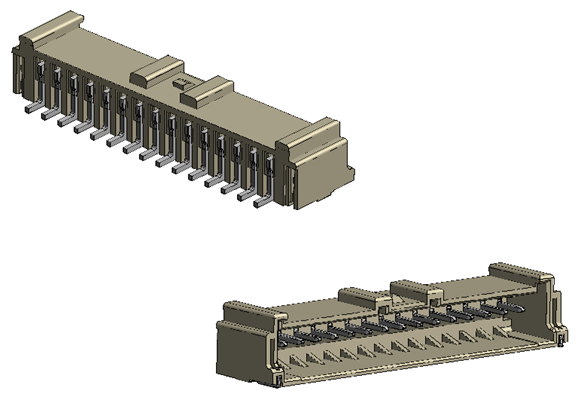

1. 2.00mm pitch SMT(Surface Mount Technology)Connector
2. Reliable contact structure(secure locking via latch locking)
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

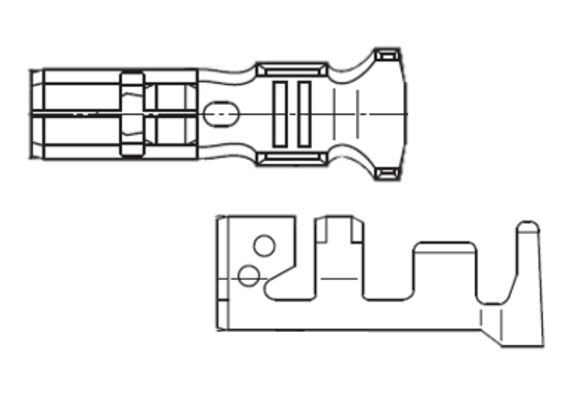

| PI07C6-0＊0A |  |
-25 | 85 | Φ1.50 | *=1:AWG#26~22 *=2:AWG#28~24 |
DL0265_MCIPI07_BI_CL.pdf | |||||

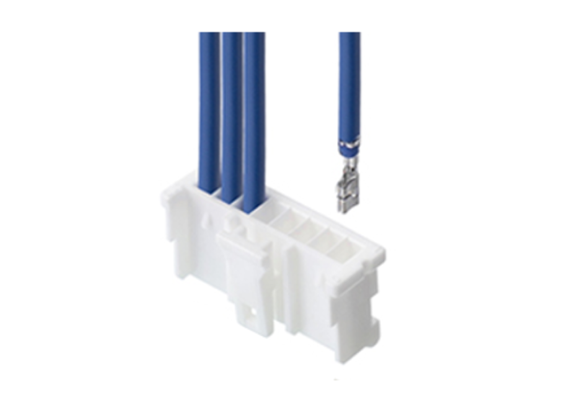

| PI07H6-()N0 |  |
2~15 | 2 | Housing | -25 | 85 | DL0265_MCIPI07_BI_CL.pdf | ||||

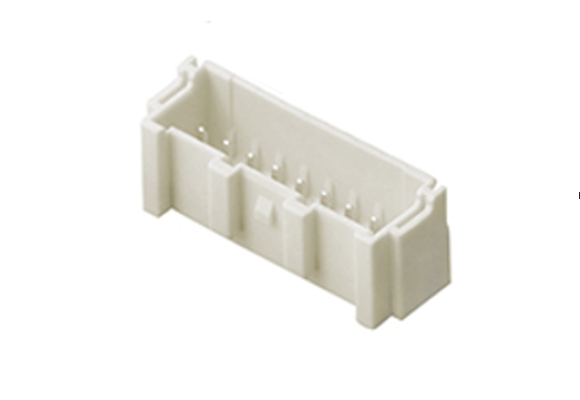

| PI07T1-()NA |  |
2~15 | 2 | Straight SMT | 2 | 800V A.C.(r.m.s.) for a minute | -25 | 85 | DL0265_MCIPI07_BI_CL.pdf | ||
| PI07T3-()NA |  |
2~15 | 2 | Right-angle DIP |
2 | 800V A.C.(r.m.s.) for a minute | -25 | 85 | DL0265_MCIPI07_BI_CL.pdf |
