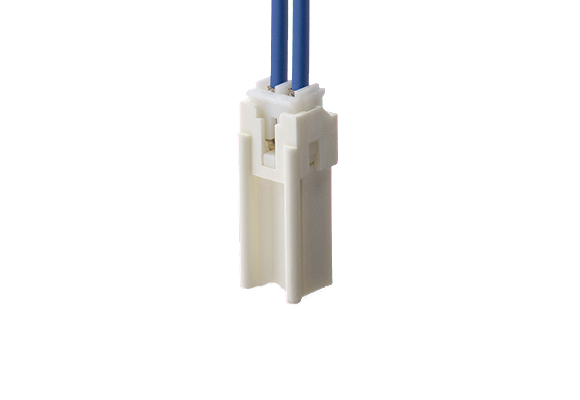

2.00 mm Pitch DIP-PCB connector for potting PI22H Series
PI22H Series
1. Same Terminal as the PI22 Series used
2. The Pin-Block features a frictuon lock and sufficient height which can correspond to 8 mm potting
3. Also has color variations as a key fuature
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

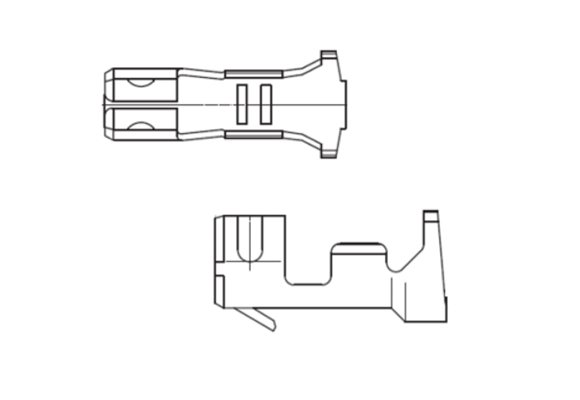

| PI22H Contact |  |
-40 | 105 | Φ1.50 | AWG#30~24 | DL0267_MCIPI22H_BI_CL.pdf | |||||

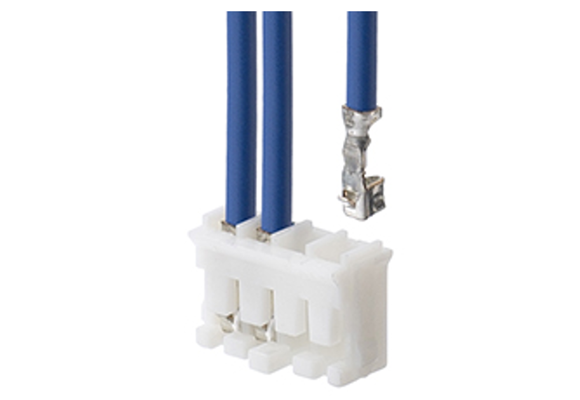

| PI22H()F |  |
2~15 | 2 | Housing | -40 | 105 | DL0267_MCIPI22H_BI_CL.pdf | ||||

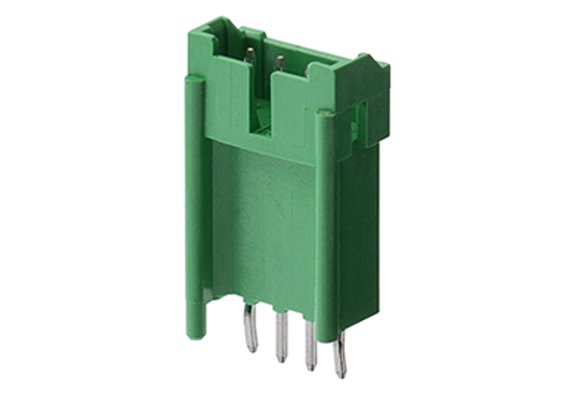

| PI22H()M |  |
2~15 | 2 | Straight DIP | 2 | 800V A.C.(r.m.s.) for a minute | -40 | 105 | DL0267_MCIPI22H_BI_CL.pdf |
