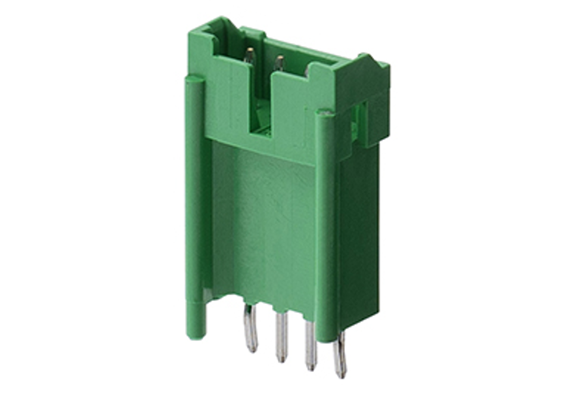

PI22H Series
1. Same Terminal as the PI22 Series used
2. The Pin-Block features a frictuon lock and sufficient height which can correspond to 8 mm potting
3. Also has color variations as a key fuature
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-
Parts No. PI22H()M Pin Count 2~15 Pich
[mm]2 Mounting Method/
Wiring methodStraight DIP Current Rating
[A/Pin]2 Dielectric Withstanding
Voltage800V A.C.(r.m.s.) for a minute Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
