PI22H Series
1. Same Terminal as the PI22 Series used
2. The Pin-Block features a frictuon lock and sufficient height which can correspond to 8 mm potting
3. Also has color variations as a key fuature
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

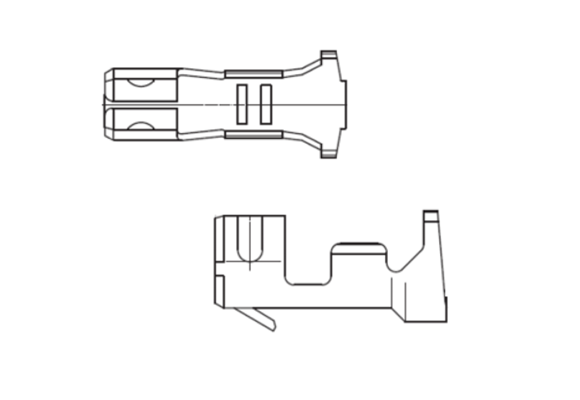

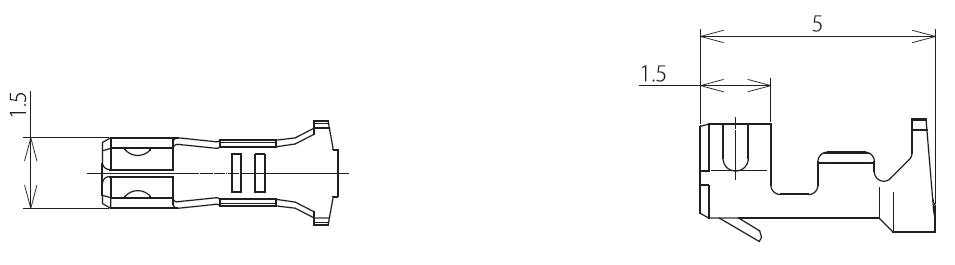

Parts No. PI22H Contact Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]105 Cable Jacket Diameter
[Φ]Φ1.50 Applicable Cable Diameter AWG#30~24
-
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
Parts No.
Operating Temparature
Min
[deg.C]Operating Temparature
Max
[deg.C]Cable Jacket Diameter
[Φ]Applicable Cable Diameter
705304-2M -40 105 Φ1.50 AWG#30~24 -
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
