2.54mm Pitch Internal Connection Pin Header FFC Series
FFC Series
1. Pin removal is available
2. Pin length change is available
3. Plating/thickness change is available (gold/ tin copper)
*Please contact us for details.
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Drawing |
|---|---|---|---|---|---|---|---|---|---|

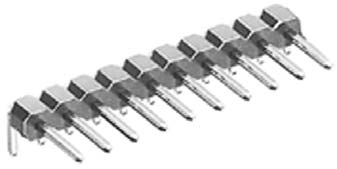

| FFC-()LAMEP1* |  |
1～52 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 85 | DL0195_HTKFFC_EN.pdf |

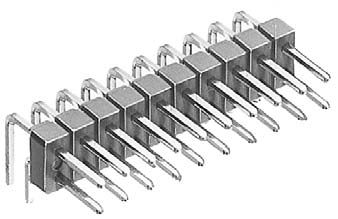

| FFC-()LBMEP1* |  |
2～144 *Please contact us regarding availability of your desired number of pins. |
2.54 | Right-angle DIP |
3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 85 | DL0196_HTKFFC_EN.pdf |
| FFC-()AMEP1* |  |
1～52 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 85 | DL0197_HTKFFC_EN.pdf |
| FFC-()BMEP1* |  |
4～144 *Please contact us regarding availability of your desired number of pins. |
2.54 | Straight DIP | 3 | 1,000V A.C.(r.m.s.) for a minute | -40 | 85 | DL0198_HTKFFC_EN.pdf |
