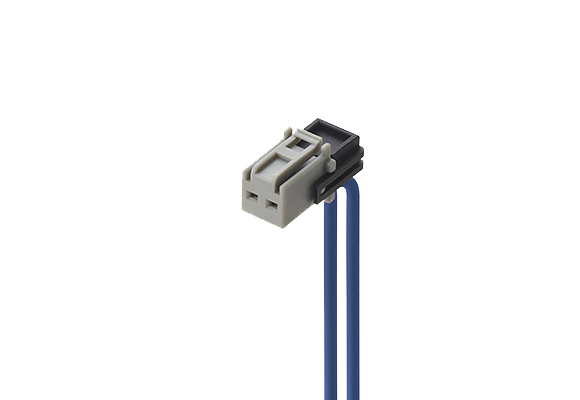

2.50mm Pitch connector for automotive applications TS80 Series
TS80 Series
1. 2.50mm pitch Connector for automotive
2. Adoption of "Inertial Lock" design achieves prevention of half mating
3. Back retainer has a flat surface which enables to push with the equipment
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
2.50mm Pitch connector for automotive applications TS80 Series Parts List
Click the arrow icon in the table below to switch from ascending to descending order.
scroll
|
Parts |
Appearance |
Pin Count |
Pich |
Mounting Method/ |
Current Rating |
Dielectric Withstanding |
Operating Temparature |
Operating Temparature |
Cable Jacket Diameter |
Applicable Cable Diameter |
Catalog |
|---|---|---|---|---|---|---|---|---|---|---|---|

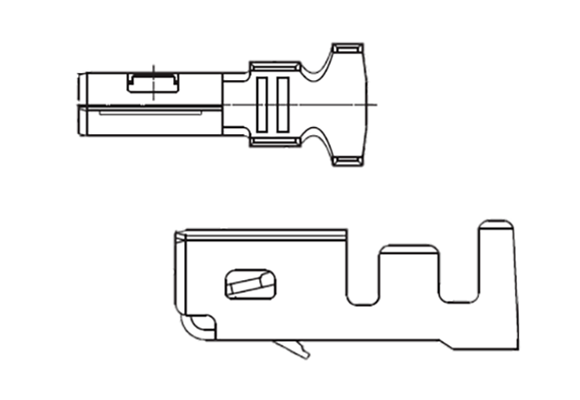

| TS80C6-010A |  |
-40 | 120 | Φ1.80 | AWG#22 | DL0263_MCITS80_BI_CL.pdf | |||||

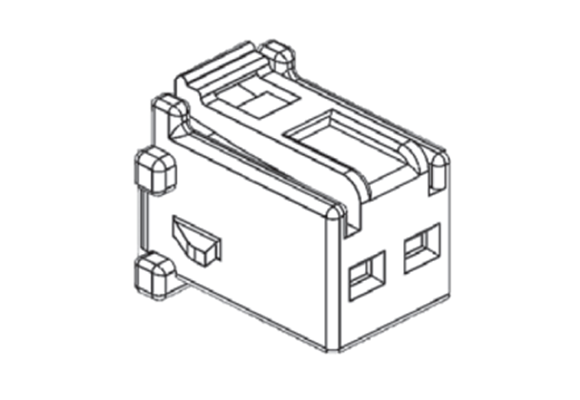

| TS80H6-02G0 |  |
2 | 2.5 | Housing | 3 | 1000V A.C.(r.m.s.) for a minute | -40 | 120 | DL0263_MCITS80_BI_CL.pdf | ||

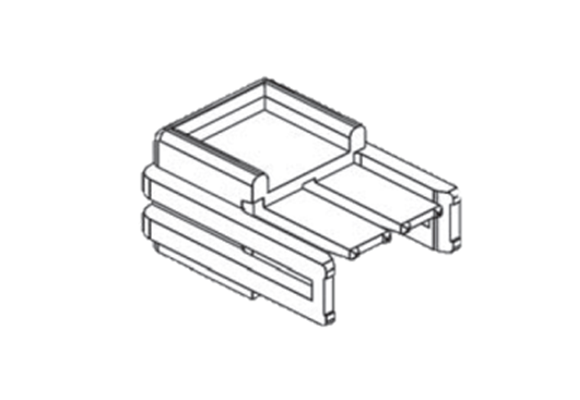

| TS80H0-02B0 |  |
2 | DL0263_MCITS80_BI_CL.pdf |
