TS80 Series
1. 2.50mm pitch Connector for automotive
2. Adoption of "Inertial Lock" design achieves prevention of half mating
3. Back retainer has a flat surface which enables to push with the equipment
【Model Description】
()・・・ Number of pins
＊/#・・・ Product specification
※The P/N on the product is an abbreviated representation
-
-

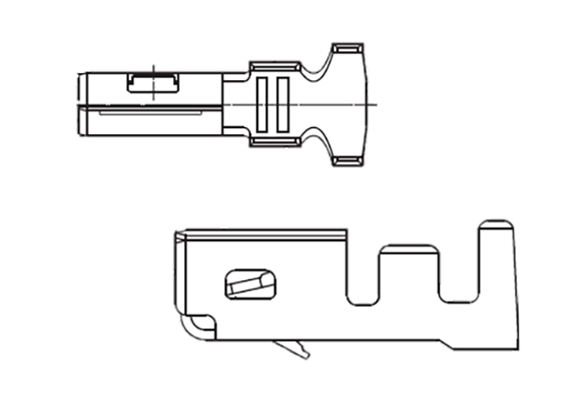

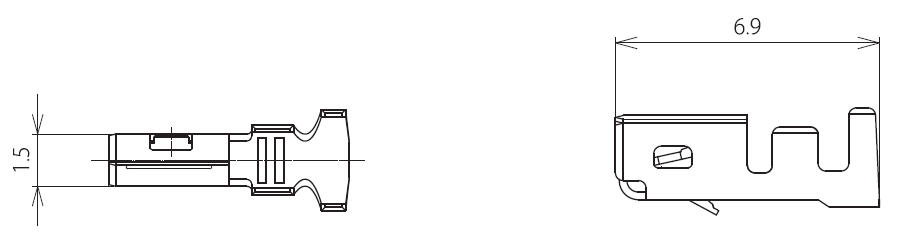

Parts No. TS80C6-010A Operating Temparature
Min
[deg.C]-40 Operating Temparature
Max
[deg.C]120 Cable Jacket Diameter
[Φ]Φ1.80 Applicable Cable Diameter AWG#22
-
-
The product information in this data is for reference only.
This is subject to change without notice.
Contact our sales staff for further information before considering or ordering any of our products.
Please request the Engineering Drawing for the most current and accurate design information.
