Outline
This product is a small piezoresistive pressure sensor using MEMS technology. The product mounts a ⊿Σ AD converter with a resolution of 16 bits and outputs a high-accuracy pressure value as a digital value. SPI is adopted for the interface and communication is performed with a microcomputer. When an incorporated temperature sensor and EEPROM data are used, a characteristic change due to a temperature change can be compensated by the dedicated software on an external microcomputer.
Applications
Blood pressure monitor for home appliance
Devices using air pressure
Features
① Small package 7.0(W) ×7.0(D) ×7.2(H)mm
② A high-accuracy pressure value can be output
by mounting a ⊿Σ AD converter.
Resolution: 3.3 Pa (0.025 mmHg)
Accuracy: ± 266 Pa (±2 mmHg)
③ Temperature compensation can be performed
by using the incorporated temperature sensor
and the compensation data in EEPROM.
* No arithmetic function is built in.
Main specifications
| Pressure Type | Gage Pressure |
|---|---|
| Pressure Medium | Air (no Condensation) |
| Supply Voltage Range [V] |
2.4 to 3.6 |
| Operating Temperature Range [deg.C] |
0 to 60 |
| Operating Pressure Range [kPa] |
0 to 40 |
| Current Consumption [μA] |
530 |
| Pressure accuracy [Pa] |
±266 |
| Conversion Time [ms] |
5.1 |
| Interface | SPI |

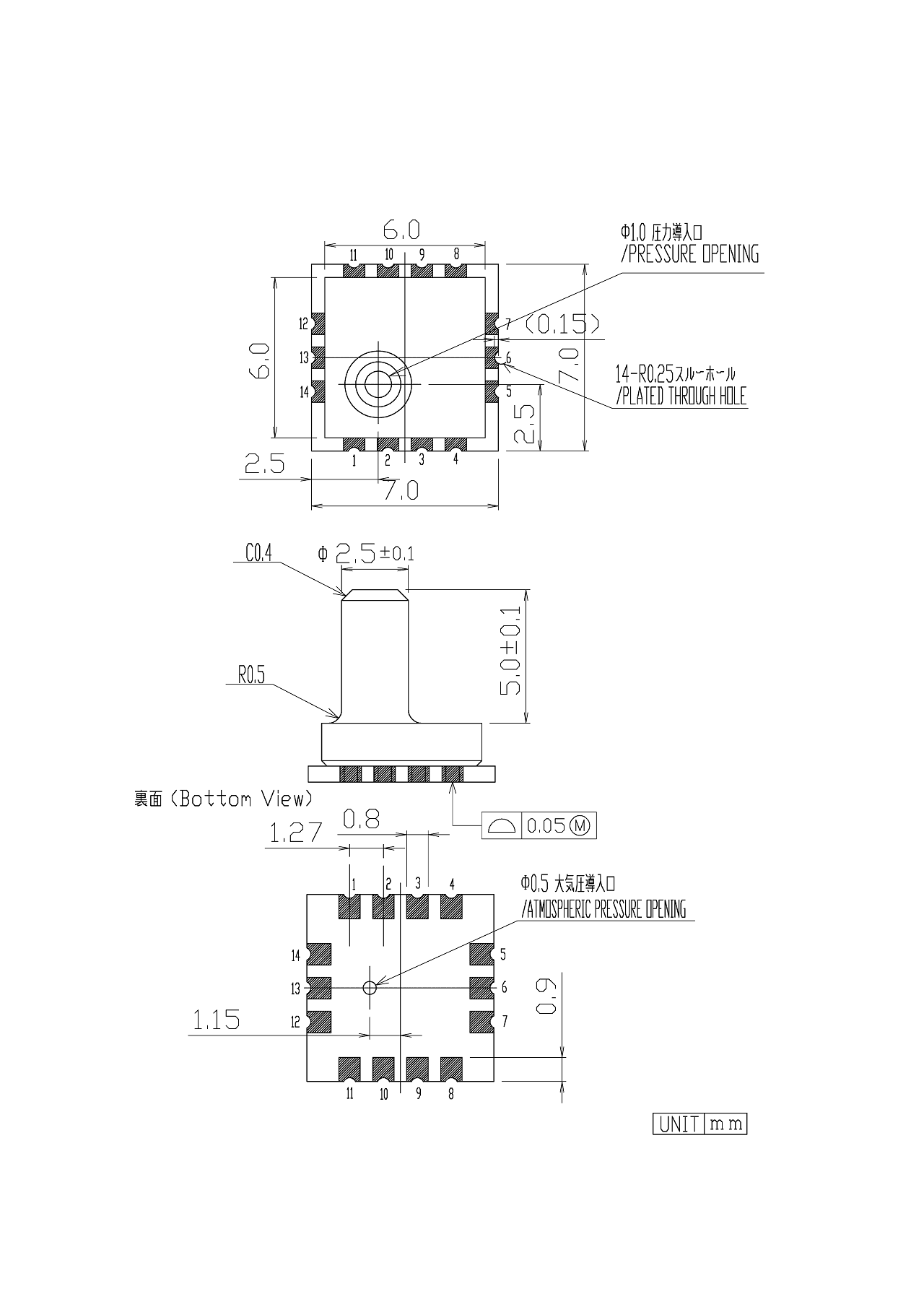

Package
Package Size [mm]
7.0 x 7.0 x 7.2
